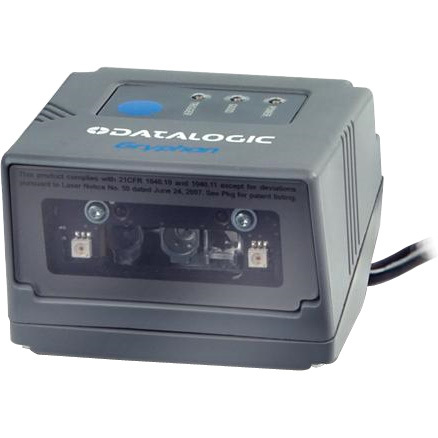

Datalogic GFS4450-9 Fixed Barcode Scanner

Part Number: GFS4450-9
Model: Gryphon GFS4400
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D / Linear Codes:Autodiscriminates all Standard 1D CodesGS1 DataBar Linear Codes2D Codes:Aztec CodeChina Han Xin CodeData MatrixMaxiCodeMicro QR CodeQR CodePostal Codes:Australian PostBritish PostChina PostIMBJapanese PostKIX PostKorea PostPlanet CodePostnetRoyal Mail Code (RM4SCC)Stacked Codes:EAN/JAN CompositesGS1 DataBar CompositesGS1 DataBar Expanded StackedGS1 DataBar StackedGS1 DataBar Stacked OmnidirectionalMacroPDFMicroPDF417PDF417UPC A/E Composites
Image Sensor Type
Imager

Product Description:

  Datalogic Automation Gryphon GFS4400 Industrial Fixed Scanner, 2D Barcode scanner, Includes RS232 cable.
Explore all Datalogic Gryphon GFS4400 Fixed Barcode Scanners
Add to Quote
Datalogic GFS4450-9 Fixed Barcode Scanner
Datalogic GFS4450-9 Fixed Barcode Scanner
Datalogic GFS4450-9 Fixed Barcode Scanner
Datalogic GFS4450-9 Fixed Barcode Scanner
Datalogic GFS4450-9 Fixed Barcode Scanner
Datalogic GFS4450-9 Fixed Barcode Scanner Datalogic GFS4450-9 Fixed Barcode Scanner Datalogic GFS4450-9 Fixed Barcode Scanner Datalogic GFS4450-9 Fixed Barcode Scanner Datalogic GFS4450-9 Fixed Barcode Scanner
Full specifications (PDF)

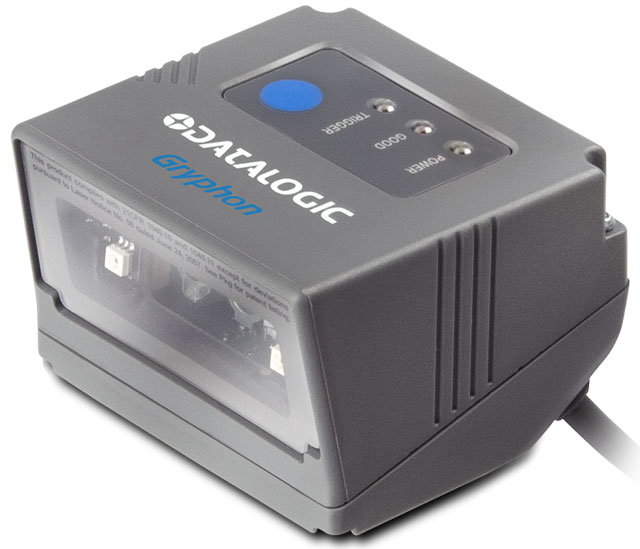

Datalogic Gryphon GFS4400 Fixed Barcode Scanner Model Overview

The Gryphon™ GFS4400 2D module is engineered for effortless integration, offering a reliable 'plug-and-play' solution tailored for system designers. Constructed from high-impact resin, it is built to endure repeated cleaning with solvents and disinfectants while ensuring robust performance in various environments. With advanced imaging technology, this OEM module provides exceptional near-field reading, excels at decoding damaged barcodes, and includes Datalogic’s patented Green Spot technology for clear good-read confirmation. Enhanced user comfort is achieved through its steady, deep red illumination light and precise 4-dot aimer, making targeting multiple barcodes seamless.
Key features:
  • Easy Integration: 'Plug-and-play' for swift system setup.
  • Exceptional Readability: Outstanding performance on 1D, 2D, and postal codes.
  • High Motion Tolerance: Snappy reading with advanced optics.
  • Durable Construction: High-impact resin for solvent resistance and IP54 sealing.
  • User-Friendly Design: Deep red illumination light and 4-dot aimer for targeted scanning.
  • Versatile Interfaces: Options include RS-232 and USB for compatibility.

Specifications:
  • Decoding Capability: 1D/Linear Codes, 2D Codes, Postal Codes, Stacked Codes
  • Reading Performance:
    • Minimum Resolution:\t1D Linear: 4 mils; PDF417: 4 mils
    • Reading Angle:\tPitch ±40°, Roll 180°, Skew ±40°
    • Depth of Field: \tCode 39 (10 mil): 0.7 to 13.1 in
  • Electrical: Operating Current:<180mA, Input Voltage: 5 VDC ±5%
  • Environmental: Temperature: -20 to 50 °C, Humidity: 5-95% Non-Condensing, IP54 Rating
  • Physical Characteristics:
    • Dimensions: 3.9 x 5.7 x 5.8 cm
    • Weight: USB - 170g, RS-232 - 204g
    • Color: Grey (custom options available)
  • Warranty: 3-Year Factory Warranty
Datalogic GFS4450-9 Fixed Barcode Scanner Overview

The Gryphon&trade; 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon&trade; GFS4400 2D fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.

Designed for easy integration, the Gryphon GFS4400 2D module provides a 'plug-and-play' solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all Standard 1D Codes
  • GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Depth of Field:
  • 4.7cm - 17.7cm@5mil - Code 39
  • 1.7cm - 33.2cm@10mil - Code 39
  • 2.7cm - 17.1cm@10mil - Data Matrix
  • 1.2cm - 24.6cm@15mil - Data Matrix
  • 2.5cm - 41.9cm@13mil - EAN
  • 2.2cm - 23.9cm@10mil - PDF417
  • 3.5cm - 16.0cm@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Fixed Mount
Weight (Approximate):
7.20 oz
Miscellaneous
Additional Information:

USB Cable separate

Country of Origin:
Vietnam
Item Numbers
GTIN: 0003144693589
UPC: 003144693589
EAN: 0003144693589
UNSPSC: 43211701
