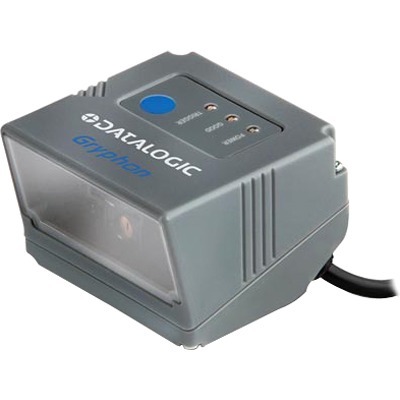

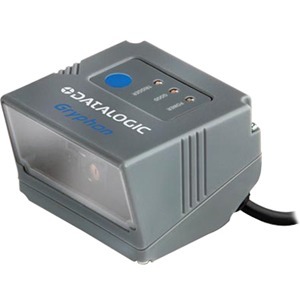

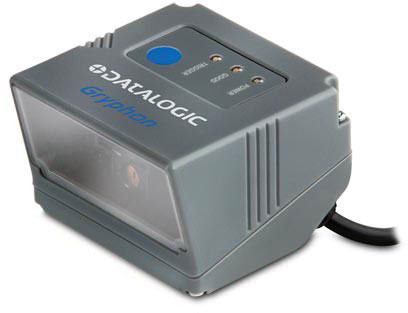

Datalogic GFS4170 Fixed Barcode Scanner

Datalogic Gryphon GFS4100 - Gryphon GFS4170 Fixed Mount Barcode Reader - Cable Connectivity - 320 scan/s - 1D - LED - CCD - USB
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 320 scan/s
Read More
Recommended TrueSupport Coverage ($1.38/mo.)

Did you know?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device
Subtotal ( items)

Full specifications (PDF)

Fast reading speeds up manual and automated processes.
The Datalogic Gryphon GFS4100 linear imager is a fixed mount barcode scanning module for OEM use in self-service kiosks, automated equipment, hands-free scanning or manufacturing applications. The Gryphon GFS4100 reader's performance has been optimized for hands-free scanning applications capable of scanning barcodes on moving objects. It is also capable of scanning items close to the scanning window, which is a common element in fixed-position scanning. The industrial grade enclosure is designed for ease of integration, sealed to an environmental rating of IP-54 and constructed with high impact, solvent and disinfectant-tolerant resin for industrial and health care applications.
Datalogic GFS4170 Overview

The Gryphon GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.

Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.


Full specifications (PDF)

Technical Information
Connectivity Technology:
Scanning Capability:
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes
Light Source:
Image Sensor Type:
Scan Rate:
320 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2" - 6.3"@5mil
  • 1.2" - 10.6"@8mil
  • 0.6" - 11.8"@10mil
  • 1.2" - 15.7"@13mil
  • 23.6"@20mil
Host Interface:
Physical Characteristics
Weight (Approximate):
6 oz
Additional Information:

USB Cable separate

Environmentally Friendly:
Environmental Certification:
  • RoHS
  • China RoHS
Limited Warranty:
18 Month
Item Numbers
GTIN: 0014979835969, 0502825227711, 0853585517919, 0854587452895, 5711045585562
UPC: 014979835969, 502825227711, 853585517919, 854587452895
EAN: 0014979835969, 0502825227711, 0853585517919, 0854587452895, 5711045585562
UNSPSC: 43211701

The Datalogic GFS4170 is also known as Data Logic DTL-GFS4170 .
