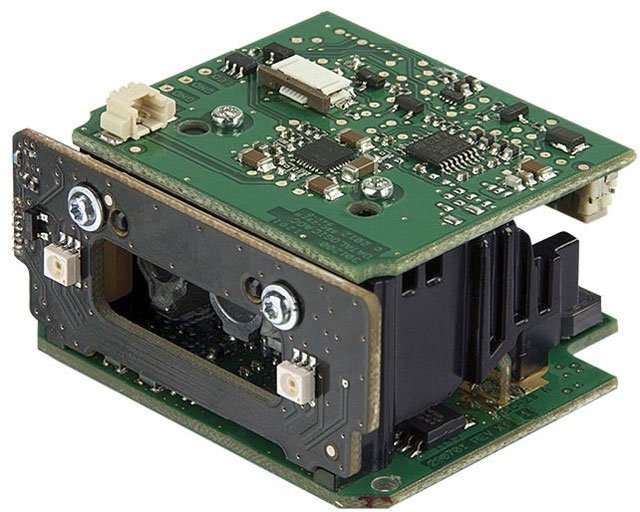

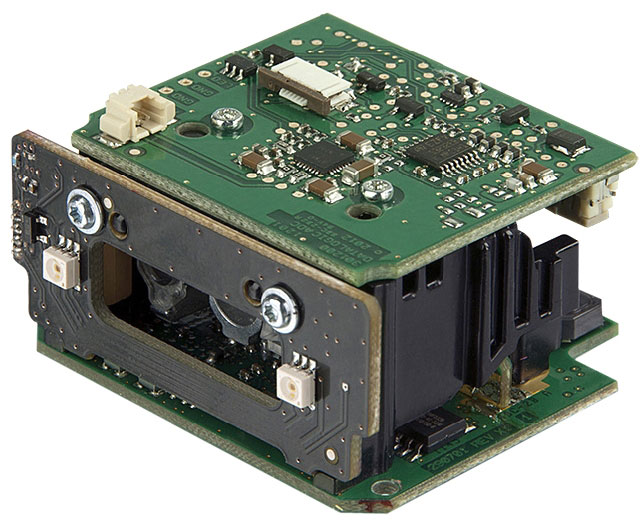

Datalogic GFE4490 Fixed Barcode Scanner

Part Number: GFE4490
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D Codes:Autodiscriminates all Standard 1D Codes Including GS1 DataBar Linear Codes2D Codes:Aztec CodeChina Han Xin CodeData MatrixMaxiCodeMicro QR CodeQR CodePostal Codes:Australian PostBritish PostChina PostIMBJapanese PostKIX PostKorea PostPlanet CodePostnetRoyal Mail Code (RM4SCC)Stacked Codes:EAN/JAN CompositesGS1 DataBar CompositesGS1 DataBar Expanded StackedGS1 DataBar StackedGS1 DataBar Stacked OmnidirectionalMacroPDFMicroPDF417PDF417UPC A/E Composites
Light Source
Laser

Product Description:

  GRYPHON OEM SERIES, GFE4400, 2D, RS232/USB

Datalogic Parts Accessory Model Overview

Products and parts from Datalogic.
Datalogic GFE4490 Fixed Barcode Scanner Overview

The Gryphon™ 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon™ GFE4400 2D engine provides a compact and easy-to-use solution for OEM use in self-service kiosks, price verifiers, ticket readers, document handling and medical laboratory applications, as well as vending machines and other automated equipment.

The GFE4400 2D OEM engine features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFE4400 2D OEM engine offers good-read visual confirmation with Datalogic's patented 'Green Spot' technology.

User comfort is maximized with the GFE4400 2D OEM engine's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D Codes:

  • Autodiscriminates all Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
7 mil
Depth of Field:
  • 4.7cm - 17.7cm@5mil - Code 39
  • 1.7cm - 33.2cm@10mil - Code 39
  • 2.7cm - 17.1cm@10mil - Data Matrix
  • 1.2cm - 24.6cm@15mil - Data Matrix
  • 2.5cm - 41.9cm@13mil - EAN
  • 2.2cm - 23.9cm@10mil - PDF417
  • 3.5cm - 16.0cm@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • USB
  • Serial
Physical Characteristics
Form Factor:
Fixed Mount
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 5054629735145, 7426700617653
EAN: 5054629735145, 7426700617653
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GFE4490 Fixed Barcode Scanner is also known as DTL-GFE4490 or GFE4490.
