Datalogic GFE4490-K10 Products

The Datalogic GFE4490-K10 Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

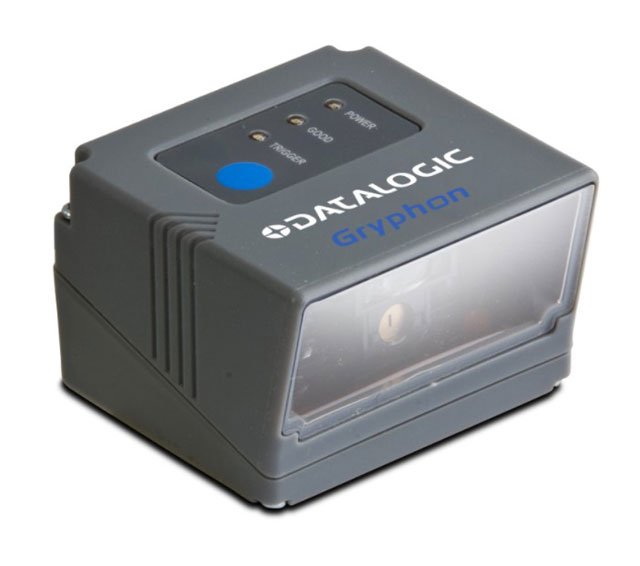

Datalogic - Fixed Scanner Kit, Datalogic Gryphon GFE4400, USB Kit, Cable Connectivity, 1D, 2D, Imager, Omni-directional, USB
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic Parts Accessory Model Overview
Products and parts from Datalogic.
Datalogic GFE4490-K10 Products Overview

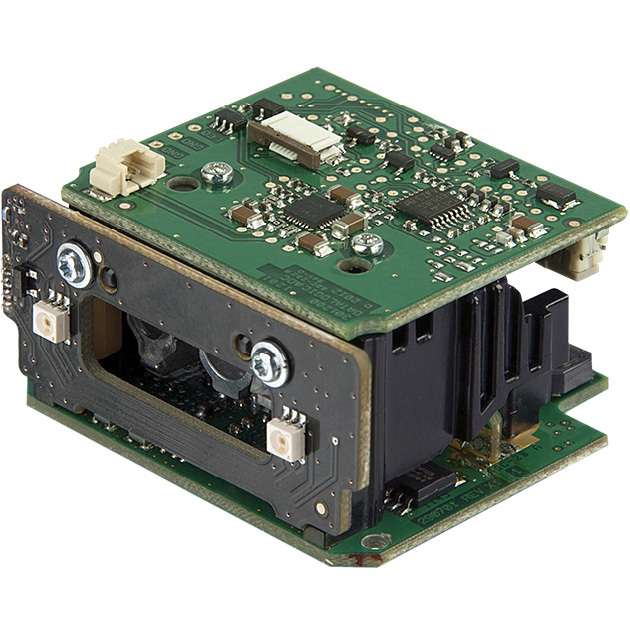

The Gryphon™ 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon™ GFE4400 2D engine provides a compact and easy-to-use solution for OEM use in self-service kiosks, price verifiers, ticket readers, document handling and medical laboratory applications, as well as vending machines and other automated equipment.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
7 mil
Depth of Field:
  • 1.8" - 7"@5mil - Code 39
  • 0.7" - 13.1"@10mil - Code 39
  • 1" - 6.7"@10mil - Data Matrix
  • 0.5" - 9.7"@15mil - Data Matrix
  • 1" - 16.5"@13mil - EAN
  • 0.9" - 9.4"@10mil - PDF417
  • 1.4" - 6.3"@10mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Fixed Mount
Height:
1.1"
Width:
1.7"
Depth:
1.9"
Weight (Approximate):
1.80 oz
Miscellaneous
Additional Information:

USB Cable separate

Country of Origin:
Vietnam
Item Numbers
GTIN: 0014971700418, 5057454715887
UPC: 014971700418
EAN: 0014971700418, 5057454715887
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GFE4490-K10 Products is also known as DTL-GFE4490K10 or GFE4490K10.
