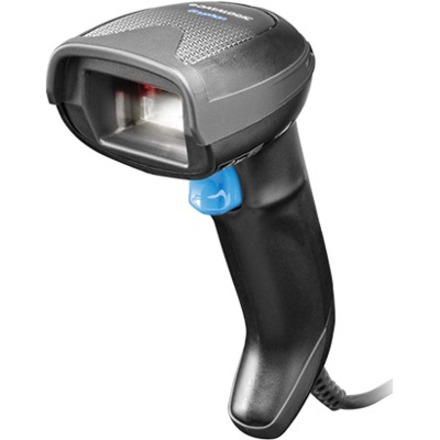

IMAGING TECHNOLOGY The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.
TOP TECHNOLOGIES FOR TODAY'S POS Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix™ motionsensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.
Datalogic distinctive reading technology with highly visible white-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
SIMPLE TO USE AND DEPLOY The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.
The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
What barcode types can the Datalogic GD4590-HCK10-HD-BP scanner read?
The GD4590 is a 2D imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, plus 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also reads postal codes, stacked codes like PDF417 and MicroPDF417, and composite codes. This versatility makes it ideal for healthcare environments and general-purpose scanning applications available from us.
What connectivity options does the GD4590 barcode scanner offer?
The GD4590 features multi-interface connectivity with RS-232, USB, and Keyboard Wedge (KBW) support, allowing flexible integration into existing systems. The BPOC kit we offer includes the scanner and USB cable for immediate deployment in your warehouse or healthcare facility.
Is the Datalogic GD4590 durable enough for warehouse and healthcare environments?
Yes, the GD4590 is built for durability with IP52 particulate and water sealing, withstands repeated drops from 1.8 meters (6 feet) onto concrete, and features 16 kV ESD protection. It operates reliably in ambient light conditions from 0 to 100,000 lux and temperatures from 0 to 50°C, making it suitable for demanding healthcare and warehouse settings.
What is the 4-Dot aimer with center cross feature on the GD4590?
The 4-Dot aimer with center cross provides a highly visible, precisely defined reading zone that reduces accidental reads and helps operators target specific barcodes in multi-barcode environments. This feature, combined with steady deep red illumination, improves scanning accuracy and user comfort during extended use.
What power requirements does the GD4590 have?
The GD4590 accepts input voltage from 4.5 to 14.0 VDC and operates at less than 300 mA @ 5V or less than 200 mA @ 12V during active scanning, with standby current under 90 mA @ 5V. This flexible power range ensures compatibility with various power supply configurations in your facility.
Is the GD4590 suitable for both handheld and presentation scanning?
Yes, the GD4590 is designed as a general-purpose handheld scanner that supports both handheld and presentation reading modes, making it versatile for retail POS, warehouse operations, and healthcare applications. Contact us today to determine if this scanner meets your specific operational requirements.
The Datalogic GD4590-HCK10-HD-BP Barcode Scanner is also known as
DTL-GD4590HCK10HDBP
or GD4590HCK10HDBP.
