Datalogic Gryphon GD4590 – Barcode Scanner – Corded – 2D – Scanner Only

Part Number: GD4590-BK-B-HD
Model: Parts
3-year Premium Plus ($74.36)
3-year Premium ($19.66)
No Support
Add to My Shopping List Add to Compare
$281.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Corded
Form Factor
Handheld
Scanner Capability
2D
Scanner Type
Imager

Product Description:

  Corded Barcode Scanner, Datalogic Gryphon GD4590, 2D Imager, High-Density, 4-Dot Aimer With Center Cross, General Purpose, Handheld, USB/Serial/KBW Multi-Interface, SCANNER ONLY, Black
Explore all Datalogic Parts Accessories
Add to Quote

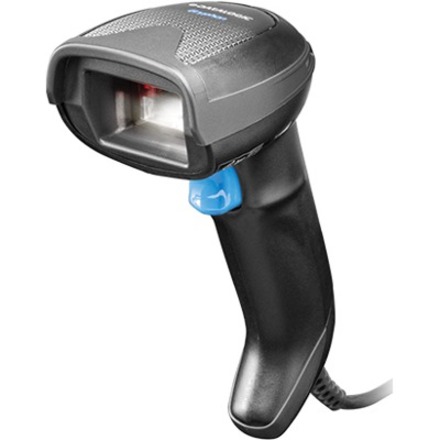

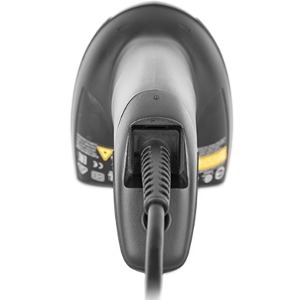

Datalogic GD4590-BK-B-HD Barcode Scanner
Datalogic GD4590-BK-B-HD Barcode Scanner
Datalogic GD4590-BK-B-HD Barcode Scanner
Datalogic GD4590-BK-B-HD Barcode Scanner
Datalogic GD4590-BK-B-HD Barcode Scanner Datalogic GD4590-BK-B-HD Barcode Scanner Datalogic GD4590-BK-B-HD Barcode Scanner Datalogic GD4590-BK-B-HD Barcode Scanner

Datalogic Parts Accessory Model Overview

Products and parts from Datalogic.
Datalogic GD4590-BK-B-HD Barcode Scanner Overview

IMAGING TECHNOLOGY

The Gryphon 4500 series represents the premium range of handheld scanners from Datalogic for value added applications. Designed with people in mind, the Gryphon 4500 series stands out with its elegant and cutting edge design, the unchallenged ergonomics, and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

TOP TECHNOLOGIES FOR TODAY'S POS

Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.

Datalogic distinctive reading technology with highly visible white illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

SIMPLE TO USE AND DEPLOY

The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking.

For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes
Light Source:
Laser
Image Sensor Type:
Imager
Scan Pattern:
Omni-directional
Scanner Range:
High Density
Scanning Distance:
15.70"
Features:
  • Grayscale Image Capture
  • Beep
  • 3GL
  • Notification LED
  • Ergonomic Design
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
35 in/s
Image Formats:
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light:
100000 lux
Drop Specification:

Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
5 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
4 mil
Maximum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
16kV
Interfaces/Ports
Host Interface:
  • Keyboard Wedge
  • Multi-interface
  • USB
  • Serial
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Durability:
Drop Resistant
Weight (Approximate):
5.68 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Healthcare
  • Retail
  • Light/Clean Manufacturing
  • Transportation
  • Commercial Service
  • Laboratory
  • Pharmacy
Item Numbers
GTIN: 0817215842178
UPC: 817215842178
EAN: 0817215842178
UNSPSC: 43211701

Frequently Asked Questions

The GD4590-BK-B-HD is a 2D imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes, and decodes 2D codes such as QR Code, Data Matrix, Aztec Code, and Micro QR Code. It also reads postal codes and stacked codes including PDF417, MicroPDF417, and GS1 DataBar composites, making it ideal for general-purpose warehouse and logistics applications.

The GD4590-BK-B-HD features multi-interface connectivity with RS-232, USB, and Keyboard Wedge (KBW) options, allowing flexible integration into existing warehouse management systems, point-of-sale terminals, and mobile data collection platforms. This multi-interface design eliminates the need for separate scanners across different system architectures.

Yes, the GD4590-BK-B-HD is built to withstand warehouse conditions with IP52 particulate and water sealing, 16 kV ESD protection, and the ability to withstand repeated drops from 1.8 meters (6.0 feet) onto concrete surfaces. It operates reliably in ambient light conditions from 0 to 100,000 lux and maintains performance across temperatures from 0 to 50°C (32 to 122°F).

The GD4590-BK-B-HD accepts input voltage from 4.5 to 14.0 VDC and draws less than 300 mA during operation at 5V or less than 200 mA at 12V. In standby or idle mode, it consumes less than 90 mA at 5V or less than 50 mA at 12V, making it efficient for continuous warehouse operations.

The GD4590-BK-B-HD is sold as a scanner-only unit, meaning the handheld device is included but cables, stands, or mounting hardware are not. Contact us today to discuss cable and accessory options that match your specific integration requirements.

The GD4590-BK-B-HD features a 4-dot aimer with center cross that provides precise targeting for barcode capture, especially useful in high-density or cluttered warehouse environments where accuracy is critical. This aiming system helps operators quickly locate and scan barcodes on densely packed inventory or small labels without wasting time on multiple attempts.

The Datalogic GD4590-BK-B-HD Barcode Scanner is also known as DTL-GD4590BKBHD or GD4590BKBHD.
