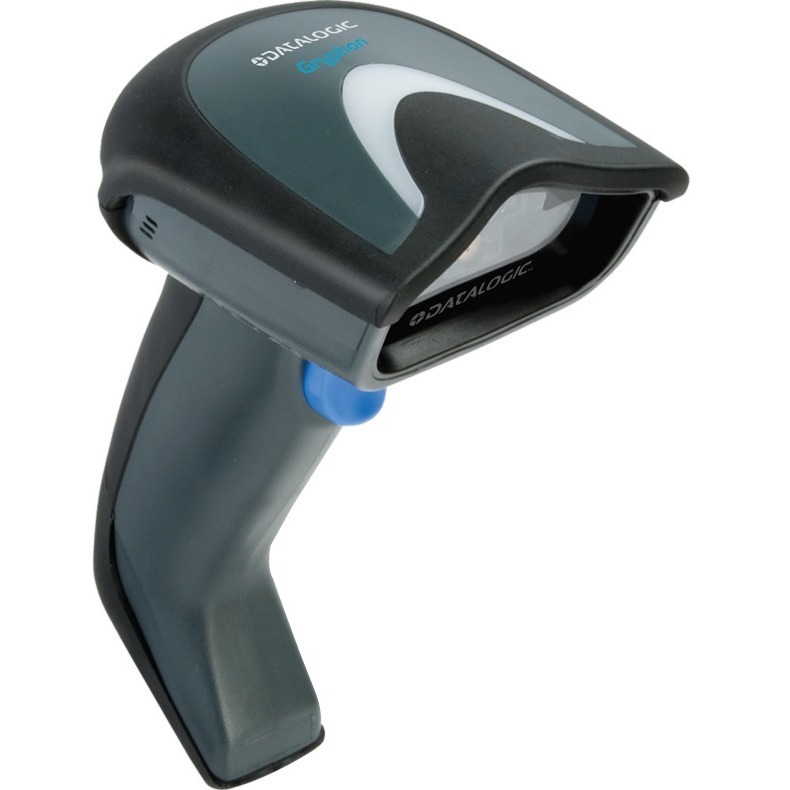

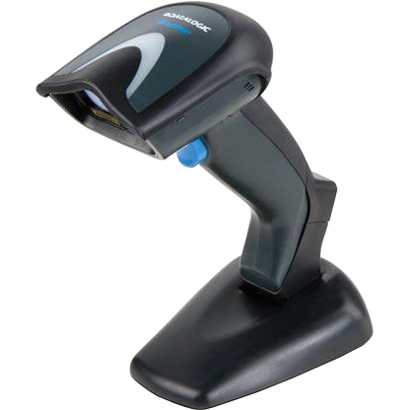

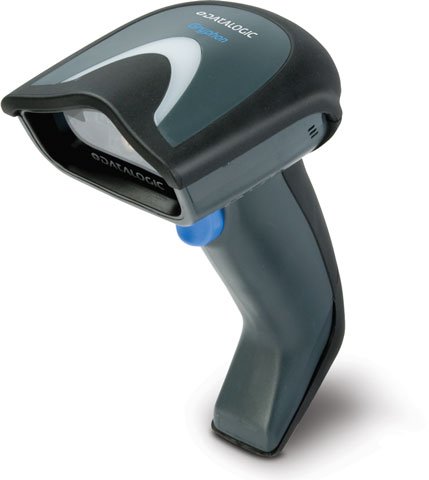

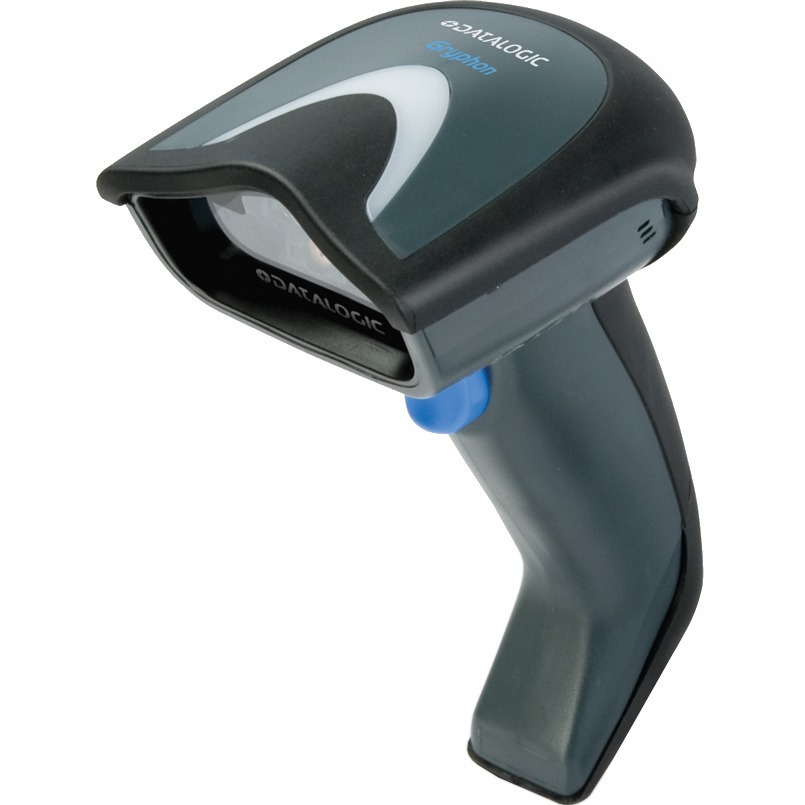

Datalogic GD4130-BKK13 Barcode Scanner

Datalogic GD4132-BK Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GD4132-BK Barcode Scanner.
Datalogic Gryphon I GD4100 - Datalogic Gryphon GD4130 Handheld Barcode Scanner Kit - Cable Connectivity - 1D - CCD - USB - Black
Form Factor
Handheld
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Manage your business needs with an economical CCD imager that devotes less time for data entry
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

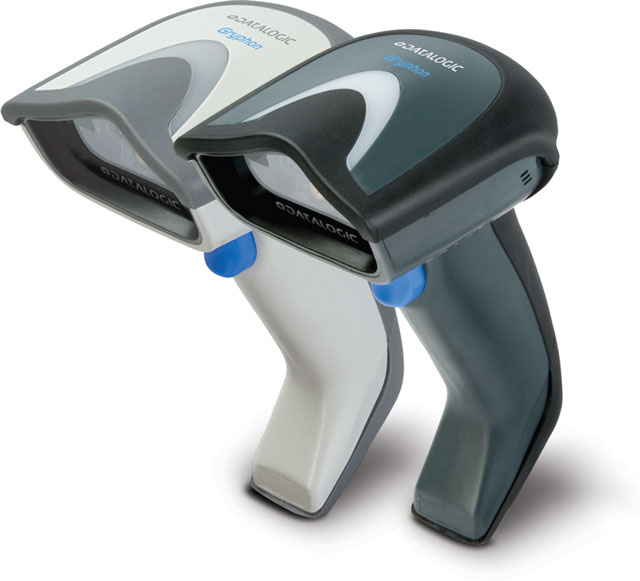

Datalogic Gryphon I GD4100 Barcode Scanner Model Overview
The Datalogic Gryphon I GD4100 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I GD4100 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.
Datalogic GD4130-BKK13 Barcode Scanner Overview
With rich feature sets and extensive model options, the Gryphon™ product series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon I linear imaging readers provide advanced reading performance and decoding for a wide variety of applications. The Gryphon GD4100 readers' ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon I GD4100 readers as high-performance products and powerful data capture solutions.

Datalogic's exclusive patented 'Green Spot' technology for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments. The Green Spot, together with the fast reading and decoding capabilities make the Gryphon I GD4100 readers the best choice to improve productivity in retail and office environments, hospitals, pharmacies, warehouses and manufacturing plants.

The Gryphon I GD4100 readers offer a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
1D / Linear Codes:
  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
Postal Codes:
  • China Post
Stacked Codes:
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Image Sensor Type:
CCD
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
  • Wand Emulation
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • China RoHS
  • EU RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0191782547750
UPC: 191782547750
EAN: 0191782547750
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GD4130-BKK13 Barcode Scanner is also known as GD4130BKK13
