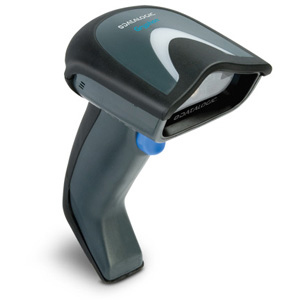

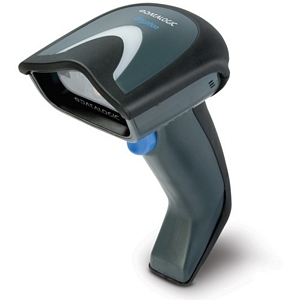

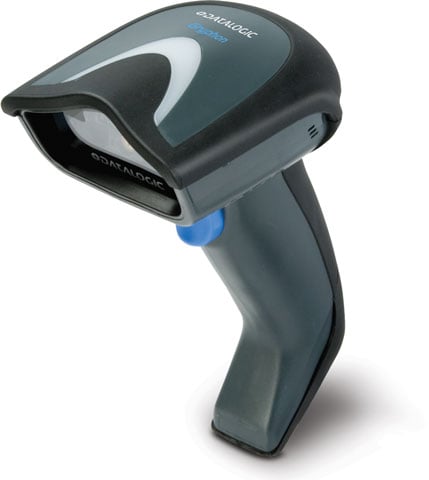

Datalogic GD4130-BK Barcode Scanner

Datalogic Gryphon I GD4100 Series: GD4130 - SCANNER ONLY. Linear Imager, USB/RS-232/Keyboard wedge/Wand Emulation interfaces. Color: Black. Cables and accessories must be purchased separately. For the full kit purchase (Part# GD4130-BKK1).
Extremely snappy reading performance with speeds up to 325 reads/second

The Datalogic Gryphon I GD4100 linear imaging readers provide advanced reading performance and decoding for a wide variety of applications. The Gryphon I GD4100 readers' ability to capture barcodes from near contact to over 1.0 m / 3.9 ft. increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon I GD4100 readers as high-performance products and powerful data capture solutions. Datalogic's exclusive patented 'Green Spot' for good-read feedback directly on the code is ideal under dim lighting conditions or noisy environments. The Green Spot, together with the fast reading and decoding capabilities make the Datalogic Gryphon I GD4100 readers the best choice to improve productivity in retail and office environments, hospitals, pharmacies, warehouses and manufacturing plants.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 325 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 23.60"
  • Light Source: LED
  • Image Sensor: CCD
  • Barcode Symbology Supported:
    • Postal Codes: China Post
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes
    • GS1 Databar Linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • Postal Codes: China Post
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes
    • GS1 Databar Linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2.30" - 7"@5 mil
    • 1.40" - 11.70"@7.50 mil
    • 0.80" - 17.70"@10 mil
    • 1.20" - 23.40"@13 mil
    • 1.20" - 31.20"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: GD4100
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: Gryphon GD4130
  • Product Name: Gryphon GD4130 Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 6 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS
  • Additional Information:
    • Supported Interfaces:
    • IBM 46XX
    • USB
    • Keyboard Wedge
    • Wand

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model Gryphon I GD4100
Included Cables Scanner Only - No Cable
Connection USB
Scanner Capability 1D
Scan Pattern LED Beam
Form Factor Handheld
Connectivity Corded
Scanner Type Imager
Color Black
Ruggedness General Purpose
