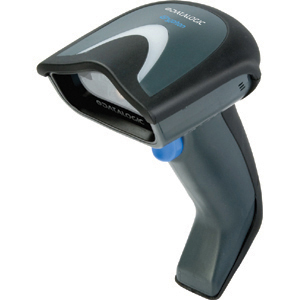

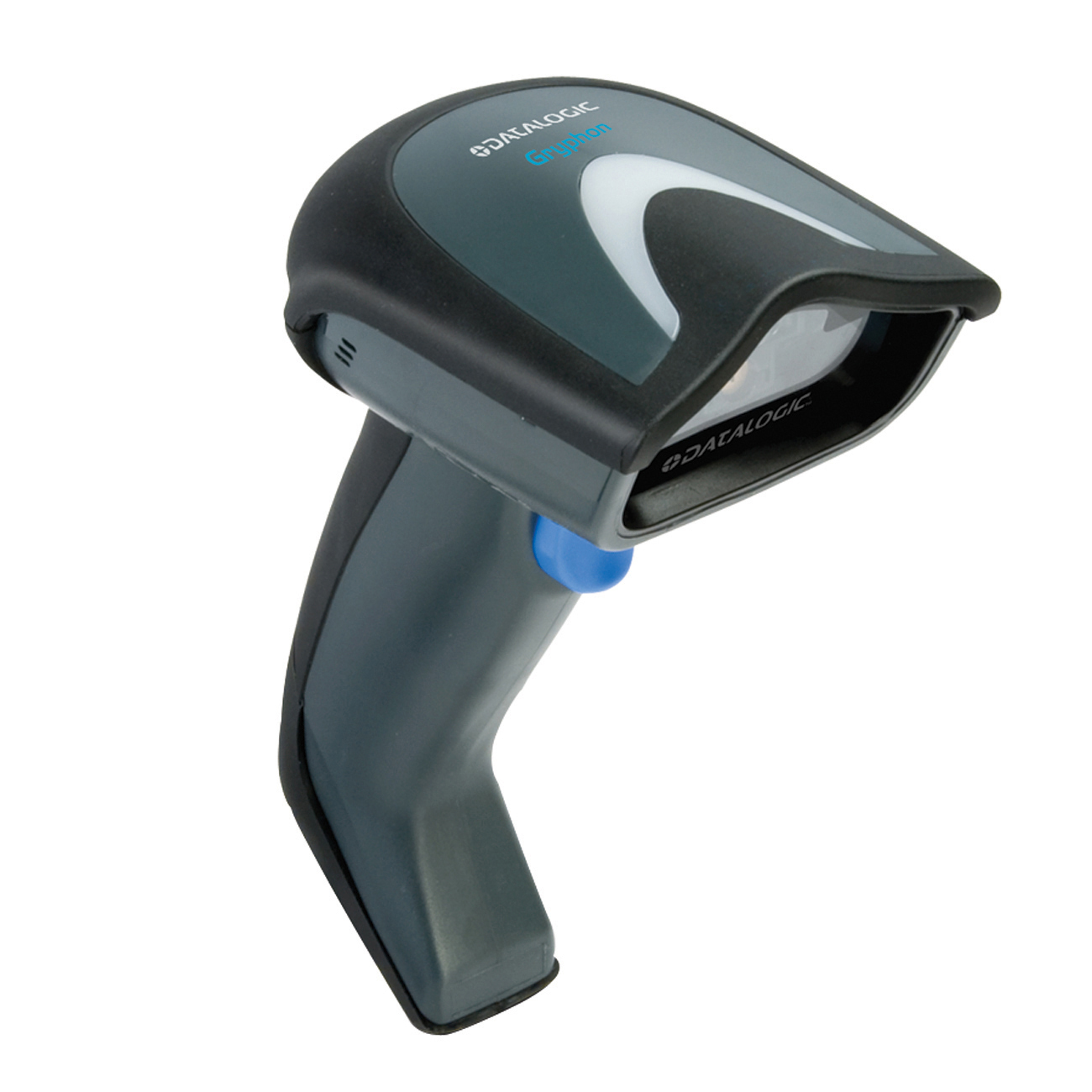

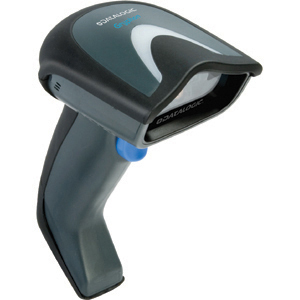

Datalogic GD4110-BKK40 Barcode Scanner

The Datalogic GD4110-BKK40 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Gryphon I GD4100 - Datalogic Gryphon GD4110 Bar Code Reader - Wired - CCD
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Scan barcodes with a staggering speed of 325 scan/s
  • Allows productive and precise reading of 1D barcodes
  • Manage your business needs with an economical CCD imager that devotes less time for data entry
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued Need Assistance?
Add to Quote

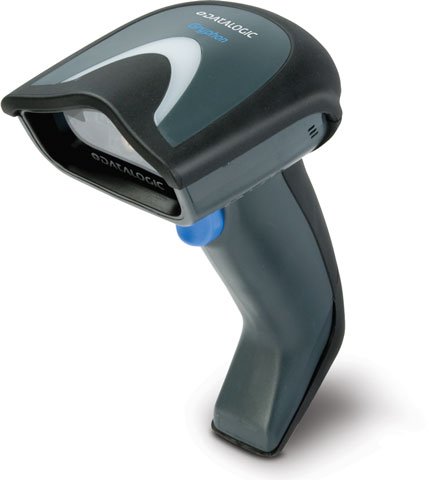

Datalogic Gryphon I GD4100 Barcode Scanner Model Overview
The Datalogic Gryphon I GD4100 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I GD4100 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.
Datalogic GD4110-BKK40 Barcode Scanner Overview

The Gryphon linear imaging readers provide advanced reading performance and decoding for a wide variety of applications. The Gryphon GD4110 reader's ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon GD4110 readers as high-performance products and powerful data capture solutions.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes
  • GS1 DataBar Linear Codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.3" - 7"@5mil
  • 1.4" - 11.7"@7.5mil
  • 0.8" - 17.7"@10mil
  • 1.2" - 23.4"@13mil
  • 1.2" - 31.2"@20mil
Scan Pattern:
Linear
Scanning Distance:
23.60"
Interfaces/Ports
Host Interface:
IBM 46XX
Physical Characteristics
Form Factor:
Handheld
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 4054318202690
EAN: 4054318202690
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GD4110-BKK40 Barcode Scanner is also known as DTL-GD4110-BKK40 or GD4110BKK40.
