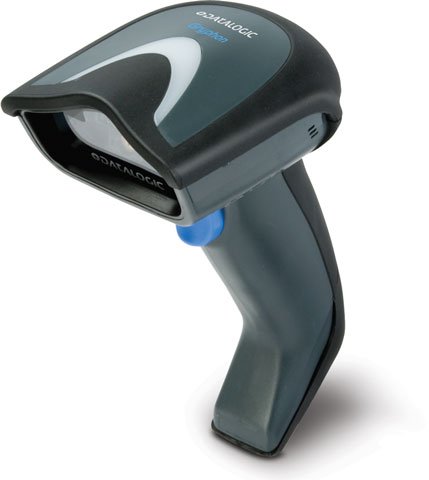

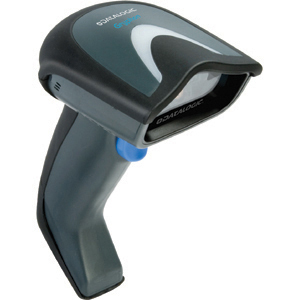

Datalogic Gryphon I GD4100 – Barcode Scanner – 1D

Part Number: GD4110-BKK20
Model: Gryphon I GD4100

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Interface Options
Serial
Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Datalogic Gryphon GD4110 Handheld Barcode Scanner Kit - Cable Connectivity - 325 scan/s - 23.62" Scan Distance - 1D - LED - CCD - Linear - Serial - Black

Datalogic Gryphon I GD4100 Barcode Scanner Model Overview

The Datalogic Gryphon I GD4100 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I GD4100 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.
Datalogic GD4110-BKK20 Barcode Scanner Overview

The Gryphon GD4110 readers ability to capture bar codes from near contact to over 1.0 m / 3.9 ft increases productivity and improves ergonomics for users. A wide scan angle reads very wide codes and renewed decoding capabilities increase throughput on hard-to-read, poor or damaged codes. All of these features combined with low-resolution decoding for labels as small as 3 mils, establishes the Gryphon I GD4110 readers as high-performance products and powerful data capture solutions.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.3" - 7"@5mil
  • 1.4" - 11.7"@7.5mil
  • 0.8" - 17.7"@10mil
  • 1.2" - 23.4"@13mil
  • 1.2" - 31.2"@20mil
Scan Pattern:
Linear
Scanning Distance:
23.62"
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 5711045211386
EAN: 5711045211386
UNSPSC: 43211701
