Datalogic Gryphon I GBT4400 – Barcode Scanner – Cordless – 2D

Part Number: GBT4430-BK-BTK2
Model: Gryphon I GBT4400
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
2D

Product Description:

  Datalogic Gryphon GBT4430 Handheld Barcode Scanner Kit - Wireless Connectivity - 1D, 2D - Laser - Imager - Omni-directional - Bluetooth - Serial - Black
Explore all Datalogic Gryphon I GBT4400 Barcode Scanners
Add to Quote
Datalogic GBT4430-BK-BTK2 Barcode Scanner
Datalogic GBT4430-BK-BTK2 Barcode Scanner
Datalogic GBT4430-BK-BTK2 Barcode Scanner
Datalogic GBT4430-BK-BTK2 Barcode Scanner
Datalogic GBT4430-BK-BTK2 Barcode Scanner
Datalogic GBT4430-BK-BTK2 Barcode Scanner
Datalogic GBT4430-BK-BTK2 Barcode Scanner Datalogic GBT4430-BK-BTK2 Barcode Scanner Datalogic GBT4430-BK-BTK2 Barcode Scanner Datalogic GBT4430-BK-BTK2 Barcode Scanner Datalogic GBT4430-BK-BTK2 Barcode Scanner

Full specifications (PDF)

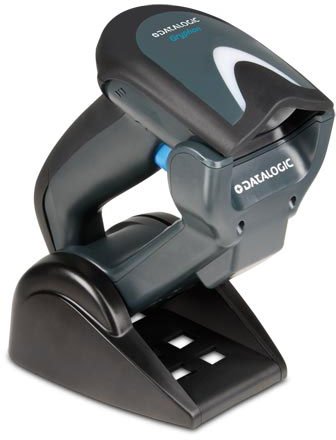

Datalogic Gryphon I GBT4400 Barcode Scanner Model Overview

The Datalogic Gryphon I GBT4400 2D imager is the new area imager for general purpose scanning requirements in a wide variety of application environments including Retail, Light Manufacturing, Document Handling, Access Control, Entertainment, Healthcare and Transportation. As the use of 2D barcodes becomes more popular, this area imager is the perfect product for those needs. The Gryphon I GBT4400 2D imager is designed with the user in mind, providing the best comfort and intuitiveness for both experienced and new users. This Gryphon imager is very snappy with excellent decoding capabilities and users will find it to be at the top of the imaging products currently available on the market. The Gryphon I GBT4400 2D imager is capable of reading both 1D and 2D barcodes with the freedom of mobility in the workplace. Using Bluetooth wireless technology, it is able to send scanned information back to the host from great working distances.
Datalogic GBT4430-BK-BTK2 Barcode Scanner Overview

The Gryphon GBT4400 2D reader is designed with Datalogic's Motionix motion-sensing technology, which enables the scanner to intuitively switch into handheld mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode, eliminating the need to scan a code or to rely on a mechanical switch to make this change. The two-position base station provides the flexibility to use the scanner in presentation or stand mode while it's charging. The scanner also features Datalogic's patented 'Green Spot' for additional good read confirmation by placing a green spot directly on the code.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • QR Code

Postal Codes:

  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
7 mil
Depth of Field:
  • 1.6" - 7.5"@5mil - Code 39
  • 0.4" - 11.8"@10mil - Code 39
  • 0.8" - 6.3"@10mil - Data Matrix
  • 0" - 9.3"@15mil - Data Matrix
  • 0.6" - 15.7"@13mil - EAN-13
  • 0.2" - 8.6"@10mil - PDF417
  • 1.2" - 4.9"@10mil - QR Code
Scan Pattern:
Omni-directional
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
Serial
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
8.64 oz
Miscellaneous
Package Contents:
  • Gryphon GBT4430 Handheld Bar Code Reader
  • Base/Charger
  • Power Supply
  • Cable
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0007540968050, 4054318771431
UPC: 007540968050
EAN: 0007540968050, 4054318771431
UNSPSC: 43211701
