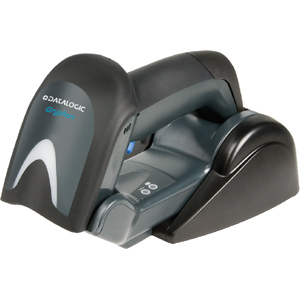

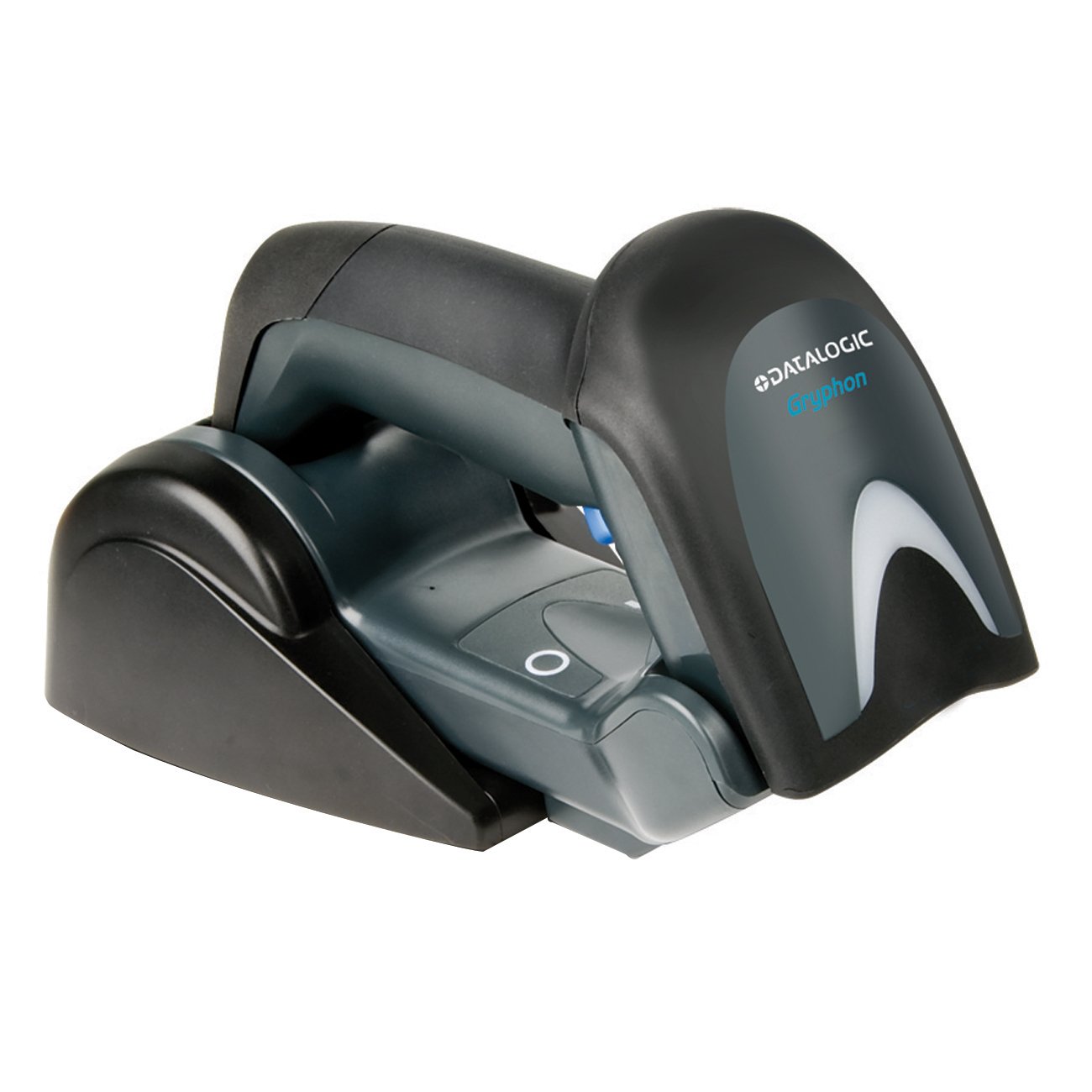

Datalogic GBT4100-BK-BTK00 Barcode Scanner

The Datalogic GBT4100-BK-BTK00 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Gryphon I GBT4100 - Datalogic Gryphon GBT4100 Handheld Barcode Scanner Kit - Wireless Connectivity - 325 scan/s - LED - Imager - Linear - Bluetooth - Black
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Scan barcodes with a staggering speed of 325 scan/s
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Increase productivity and performance by excluding the cable
  • With Bluetooth technology, you can scan barcodes and then transmit data from the base
Read More
Discontinued Need Assistance?
Add to Quote

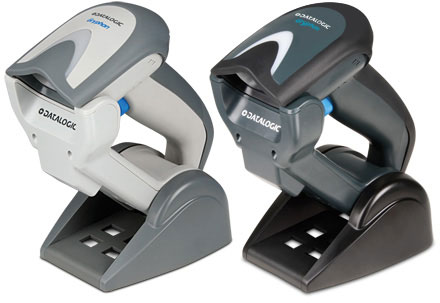

Datalogic Gryphon I GBT4100 Barcode Scanner Model Overview
The Datalogic Gryphon I GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. Datalogic's unique 2-position cradle provides multiple features for the user. When in the up' position, the Gryphon I GBT4100 imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity.
Datalogic GBT4100-BK-BTK00 Barcode Scanner Overview

The Gryphon series represents the premium line of Datalogic Scanning's general purpose handheld data collection products and offers the richest feature set among the general purpose products. Featuring Bluetooth Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

Postal Codes:

  • China Post

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.3" - 7"@5mil
  • 1.4" - 11.7"@7.5mil
  • 0.8" - 17.7"@10mil
  • 1.2" - 23.4"@13mil
  • 1.2" - 31.2"@20mil
Scan Pattern:
Linear
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
No
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
7.94 oz
Miscellaneous
Package Contents:
  • Gryphon 4100 Handheld Bar Code Reader
  • Charger
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 5052179241765, 5711045211683
EAN: 5052179241765, 5711045211683
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GBT4100-BK-BTK00 Barcode Scanner is also known as DTL-GBT4100-BK-BTK00 or GBT4100BKBTK00.
