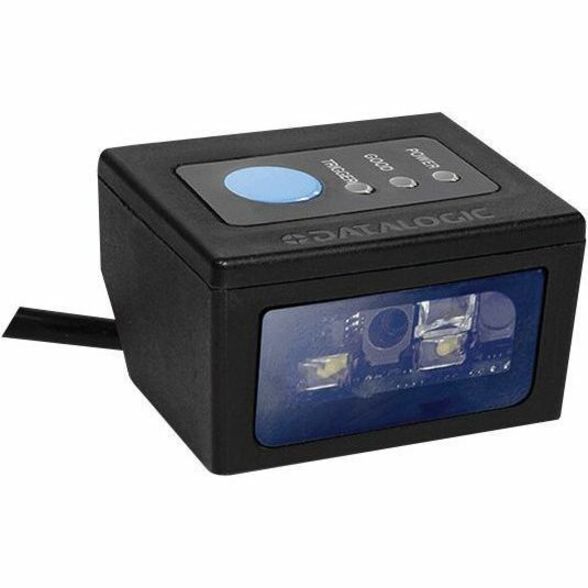

Datalogic DSM0452-WA Fixed Barcode Scanner

Part Number: DSM0452-WA
Model: DSM04XX
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$401.04

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D:All standard 1D codes including: UPC/EAN/JAN P2 / P5 add-ons Code 39 Italian Pharmacode 39 Code 128 C128 ISBT I 2 of 5 Standard 2 of 5 Interleaved 2 of 5 Industrial 2of 5 Datalogic 2of5 IATA; Code 11 Codabar ABC Codabar EAN 128 Code 93 MSI/Plessey RSS-14 BC412 Databar Limited Databar Omnidirectional Databar Expanded IATA Trioptic Matrix 2/5 Telepen Composite codes CC-A CC-B CC-C2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Korea Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites
Light Source
LED

Product Description:

  DSMO4XX Fixed Mounted 2D imager barcode scanner, Imager Sensor: WVGA 752 x 480 pixels, Field of view: 52H x 40V, Interface: RS-232
Explore all Datalogic DSM04XX Fixed Barcode Scanners
Add to Quote
Datalogic DSM0452-WA Fixed Barcode Scanner
Datalogic DSM0452-WA Fixed Barcode Scanner
Datalogic DSM0452-WA Fixed Barcode Scanner
Datalogic DSM0452-WA Fixed Barcode Scanner
Datalogic DSM0452-WA Fixed Barcode Scanner
Datalogic DSM0452-WA Fixed Barcode Scanner Datalogic DSM0452-WA Fixed Barcode Scanner Datalogic DSM0452-WA Fixed Barcode Scanner Datalogic DSM0452-WA Fixed Barcode Scanner

Full specifications (PDF)

Datalogic DSM04XX Fixed Barcode Scanner Model Overview

The DSM04XX Fixed Scan Module offers high performance fixed position scanning in a compact form factor for a wide range of industries such as, Healthcare, Retail and Manufacturing. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium. With interface options of USB, RS-232, or both the DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. A RUGGED CONSTRUCTION with high impact resin that is resistant to cleanings solvents and disinfectant solutions make this scanner ideal for lab testing equipment, self-checkout or access control. The included mounting hardware allows mounting from all sides of the device at any angle. For integrators who must support multiple platforms and applications the DSM04XX Fixed Scan Module is the solution you need.
Datalogic DSM0452-WA Fixed Barcode Scanner Overview

BIG PERFORMANCE IN A SMALL PACKAGE

The DSM04XX Fixed Scan Module is the solution you need for high performance fixed position scanning in a compact form factor. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium.

RUGGED CONSTRUCTION

The enclosure is constructed with high impact resin that is resistant to cleanings solvents and disinfectant solutions. IP54 particulate and water sealing allows rugged and dependable scanning performance.

SIMPLE INTEGRATION

The DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. Included mounting hardware allows mounting from all sides of the device at any angle. Interface options include USB, RS-232 or multi-interface models allowing 'plug-and-play' installation perfect for integrators who must support multiple platforms and applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

All standard 1D codes including:

  • UPC/EAN/JAN
  • P2 / P5 add-ons
  • Code 39
  • Italian Pharmacode 39
  • Code 128
  • C128 ISBT
  • I 2 of 5
  • Standard 2 of 5
  • Interleaved 2 of 5
  • Industrial 2of 5
  • Datalogic 2of5
  • IATA; Code 11
  • Codabar
  • ABC Codabar
  • EAN 128
  • Code 93
  • MSI/Plessey
  • RSS-14
  • BC412
  • Databar Limited
  • Databar Omnidirectional
  • Databar Expanded
  • IATA
  • Trioptic
  • Matrix 2/5
  • Telepen
  • Composite codes CC-A
  • CC-B
  • CC-C

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger/Sense
Scanning Distance:
23.60"
Features:
  • Beep
  • Notification LED
  • Grayscale Image Capture
Field of View (Horizontal):
52°
Field of View (Vertical):
40°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
180°
Image Formats:
  • BMP
  • JPEG
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands repeated drops from 3 ft onto a concrete surface.
Minimum Print Contrast:
25%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (DataMatrix):
15 mil
Image Sensor Resolution:
752 x 480
Illumination Type:
LED
Illumination Color:
White
Interfaces/Ports
Host Interface:
Serial
Power Description
Standby Current:
50 mA
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
Fixed Mount
Rugged:
Yes
Color Family:
Black
Product Color:
Black
Product Material:
Resin
Durability:
  • Water Resistant
  • Dust Resistant
Weight (Approximate):
341.72 lb
Miscellaneous
Ingress Protection (IP) Rating:
IP54
Application/Usage:
  • Retail
  • Self-checkout
  • Ticketing
  • Manufacturing
  • Healthcare
Platform Supported:
  • Android
  • Linux
  • PC
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic DSM0452-WA Fixed Barcode Scanner is also known as DTL-DSM0452WA or DSM0452WA.
