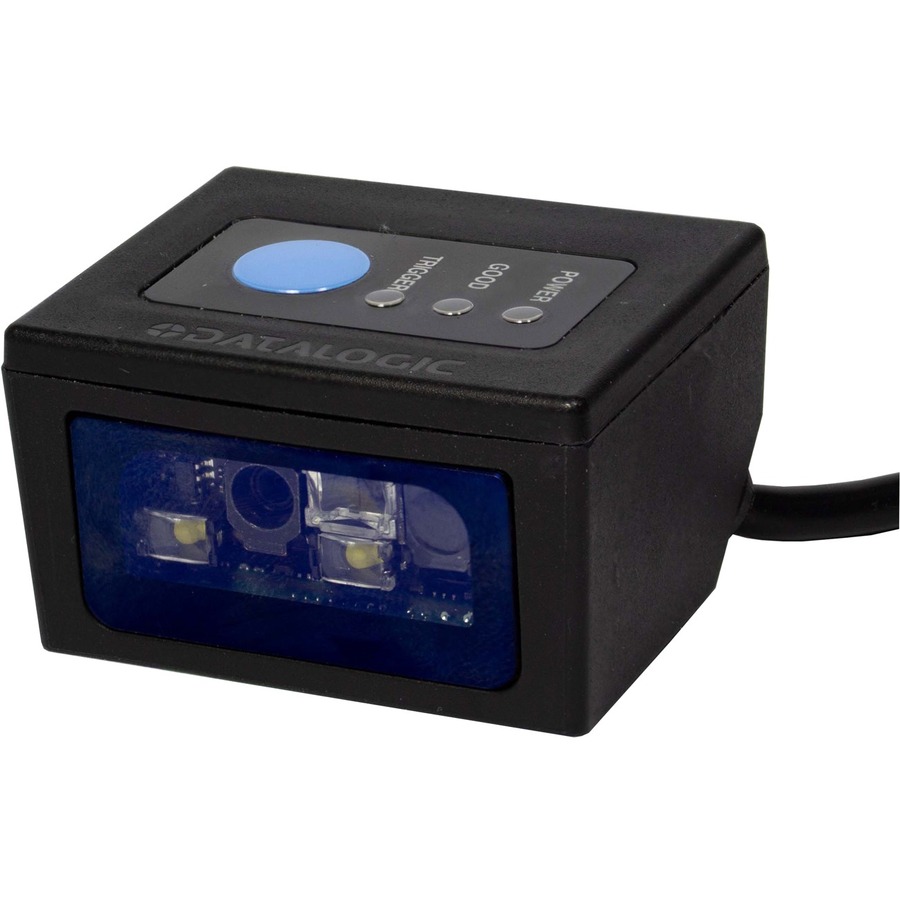

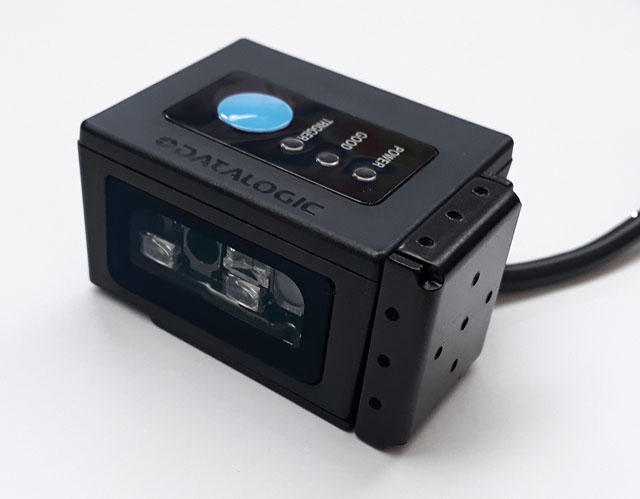

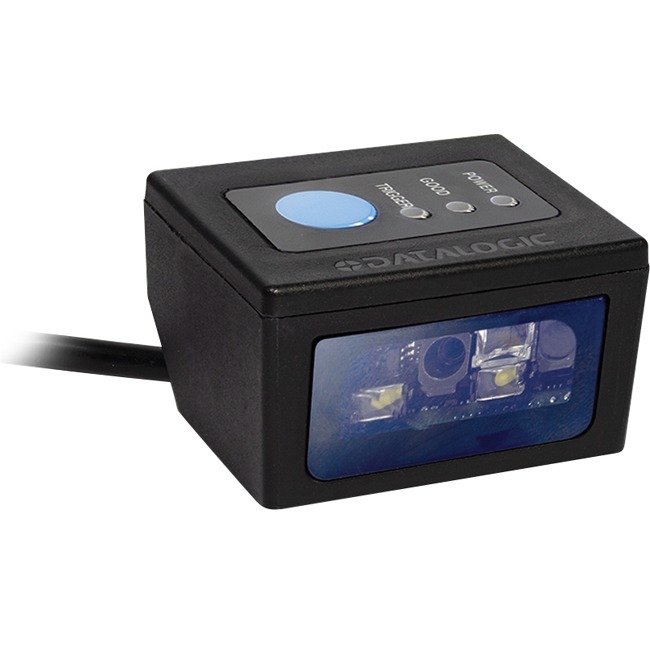

Datalogic DSM0421 Fixed Barcode Scanner

The DSM04XX Fixed Scan Module offers high performance fixed position scanning in a compact form factor for a wide range of industries such as, Healthcare, Retail and Manufacturing. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium. With interface options of USB, RS-232, or both the DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. A RUGGED CONSTRUCTION with high impact resin that is resistant to cleanings solvents and disinfectant solutions make this scanner ideal for lab testing equipment, self-checkout or access control. The included mounting hardware allows mounting from all sides of the device at any angle. For integrators who must support multiple platforms and applications the DSM04XX Fixed Scan Module is the solution you need.

BIG PERFORMANCE IN A SMALL PACKAGE

The DSM04XX Fixed Scan Module is the solution you need for high performance fixed position scanning in a compact form factor. Available in WVGA and Megapixel models with different Field of View and Depth of Field. The Wide-Angle model is particularly useful for embedded applications where space is at a premium.

RUGGED CONSTRUCTION

The enclosure is constructed with high impact resin that is resistant to cleanings solvents and disinfectant solutions. IP54 particulate and water sealing allows rugged and dependable scanning performance.

SIMPLE INTEGRATION

The DSM04XX Fixed Scan Module provides simple electrical and mechanical integration for system designers. Included mounting hardware allows mounting from all sides of the device at any angle. Interface options include USB, RS-232 or multi-interface models allowing 'plug-and-play' installation perfect for integrators who must support multiple platforms and applications.

FEATURES

• Wide range of models incorporating engines from the Halogen DE2X1X Family
• Highly visible 4-Dot aimer with center cross for targeted scanning
• Excellent Motion Tolerance
• Image capture and document scanning capabilities
• Maximum resolution down to 2 mils
• Interface options of USB, RS-232, or both
• Datalogic's patented 'Green Spot' technology for good-read feedback
• Integrated good-read beeper
• Multiple scan modes including Autosense and software triggering
• High-impact and solvent-tolerant enclosure
• Water and Particulate Sealing Rating of IP54
