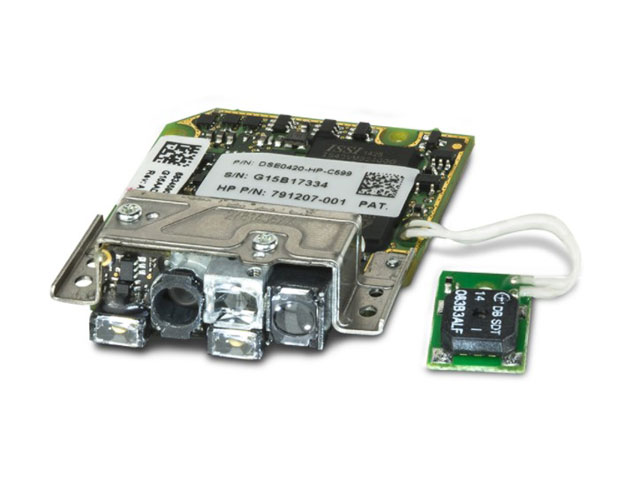

Datalogic DSE0420 Scan Engine Overview
The DSE0420 is the decoded version of the DE2011-DL ultra-compact high performance 2D imager engine. The scan engine features an exceptional high-speed sensor which enables image capture at a full 60 frames per second, delivering outstanding motion tolerance.
The DSE0420 scan module includes Datalogic's snappy, high-performance decoder which can read all common 1D and 2D bar codes. It can be installed into the device as a whole scan module (mounted by a metal bracket), or separately for application environments that have very limited space at the front end. Customers can embed the decoder board at another location and connect it to the scan engine through an industry standard flat cable. The decoder board can be connected to the device's main board through a standard USB flat cable, which supports all USB interfaces such as USB Keyboard, USB HID and USB COM. DSE0420-D connects via a microUSB cable.
Features
Scan engine can be installed with the decoder board as one module or separately
Highly visible center cross with four corner dots aiming system
Steady white illumination
Snappy reading performance with high motion tolerance
Excellent reading of 1D or 2D codes on print or displayed on mobile device or computer screens
Low power consumption enables longer battery life
Datalogic's 'Green Spot' technology for visual good-read feedback (optional)
DSE0420-D Demo Kit available, features a trigger and interface board
What barcode types can the DataLogic DSE0420 scan engine read?
The DSE0420 is a 2D decoded scan engine that reads all common 1D linear codes including GS1 DataBar formats, as well as 2D codes such as Aztec Code, Data Matrix, QR Code, and Micro QR. It also supports stacked codes including PDF417, MicroPDF417, and various GS1 DataBar composite formats, making it versatile for warehouse and logistics applications.
What are the key performance features of the DSE0420 scan engine?
The DSE0420 features an exceptionally high-speed sensor that captures images at 60 frames per second, delivering outstanding motion tolerance and snappy reading performance. It offers excellent depth-of-field reading and performs reliably on poorly printed barcodes and codes displayed on mobile device and computer screens, making it ideal for challenging scanning environments.
How is the DSE0420 integrated into devices?
The DSE0420 can be installed as a complete scan module using a metal bracket, or the decoder board and scan engine can be separated for space-constrained applications. The decoder board connects to the scan engine through an industry-standard flat cable and can be embedded at another location within your device, providing flexible integration options for various form factors.
What power and electrical specifications does the DSE0420 require?
The DSE0420 operates on +5 VDC ±5% with a typical consumption of 390 mA. It supports multiple interface options including RS-232, USB multi-interface configurations, and powered USB Host ports, making it compatible with various OEM devices and integration scenarios available through our product lineup.
What environmental conditions can the DSE0420 handle?
The DSE0420 operates reliably in temperatures from 10 to 40°C (50 to 104°F) with humidity levels from 5 to 95% non-condensing. It features 25kV ESD protection and operates in ambient light conditions from 0 to 86,080 lux, making it suitable for diverse warehouse and logistics environments.
Does the DSE0420 offer visual and audio feedback options?
Yes, the DSE0420 includes optional beeper and Datalogic's patented 'Green Spot' technology for visual confirmation of successful reads. These feedback options are particularly useful for inexperienced users to ensure barcodes have been successfully captured, and we offer these features as configurable options when you contact us today.
The Datalogic DSE0420 Scan Engine is also known as
DTL-DSE0420
or DSE0420.
