Compatibility:

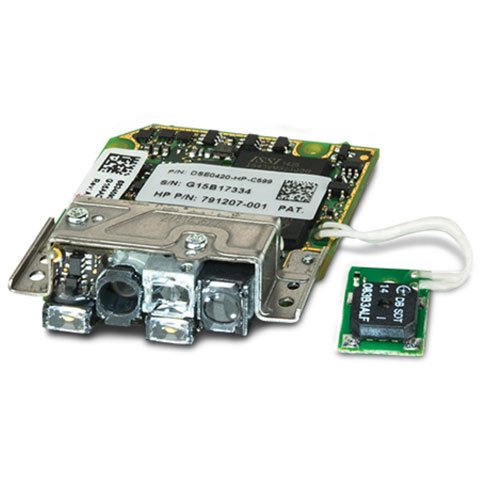

Datalogic DSE0420 2D Decoded Scan Module
Datalogic DSE0420-D Scan Engine
Part Number:
DSE0420-D
Model:
Parts
Datalogic Automation Products Fixed Barcode Scanner Model Overview
Identification products automate the identification process of products based upon the reading of barcodes, analysis of images, and profiling of items. They are used in a wide range of applications and machines. from the reading of barcodes on medication to ensure patient safety, to the scanning of dimensions of parcels to ensure accurate billing, identification products are behind many of the everyday processes that keeps the global economy running.
Miscellaneous
Item Numbers
UNSPSC:
31162800
Frequently Asked Questions
What barcode types can the DataLogic DSE0420 scan engine read?
The DSE0420 is a 2D decoded scan module that reads all common 1D and 2D barcode types, including standard linear codes, GS1 DataBar formats, stacked codes like PDF417 and MicroPDF417, and 2D codes such as QR Code, Data Matrix, and Aztec Code. Its high-performance decoder delivers snappy reading and excellent performance on poorly printed barcodes and codes displayed on mobile device screens.
What makes the DSE0420 suitable for warehouse and logistics applications?
The DSE0420 features an exceptionally high-speed sensor that captures images at 60 frames per second, delivering outstanding motion tolerance ideal for fast-paced warehouse environments. Its outstanding depth-of-field reading and snappy decoding performance make it reliable for logistics operations, and optional beeper and Datalogic's patented 'Green Spot' visual confirmation technology help ensure successful reads without errors.
How does the DSE0420 integrate into existing equipment?

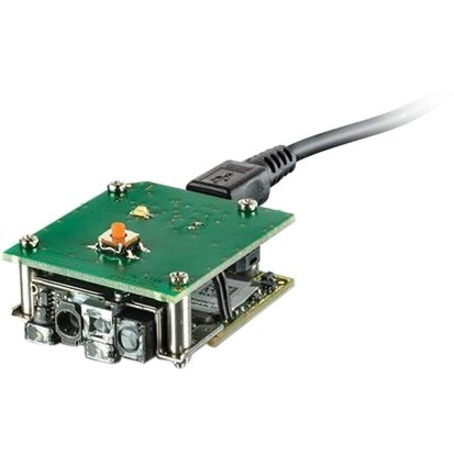

The DSE0420 can be installed as a complete scan module mounted with a metal bracket, or the decoder board and scan engine can be separated for space-constrained applications. The decoder board connects to the scan engine through an industry-standard flat cable and interfaces with the device's main board via RS-232, USB, or multi-interface options, providing flexible integration for various OEM applications.
What are the power and electrical requirements for the DSE0420?
The DSE0420 requires +5 VDC ±5% input voltage with typical power consumption of 390 mA at 5 VDC. It features 25kV ESD protection (air discharge) and operates reliably in ambient light conditions from 0 to 86,080 lux, making it suitable for diverse warehouse and retail environments.
What environmental conditions can the DSE0420 withstand?
The DSE0420 operates in temperatures from 10 to 40°C (50 to 104°F) and can be stored or transported in temperatures ranging from -40 to 70°C (-40 to 158°F). It maintains performance in humidity levels of 5-95% (non-condensing) and features robust ESD protection, making it durable for warehouse, logistics, and industrial environments.
Does the DSE0420 support remote management and diagnostics?
Yes, the DSE0420 includes remote management capabilities with diagnostic reporting and is compliant with WMI (OPOS and JavaPOS) and MBeans (JavaPOS) standards. It supports host download functionality and works with IBM Director, Wavelink Avalanche, and other ERP management solutions commonly used in warehouse and logistics operations.
The Datalogic DSE0420-D Scan Engine is also known as
DTL-DSE0420D
or DSE0420D.
