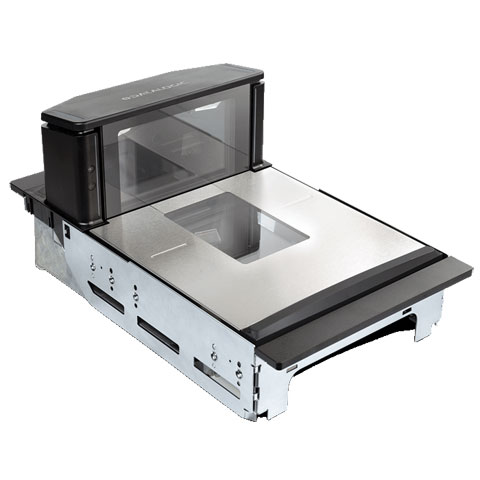

DataLogic 96222212000-000530 Fixed Barcode Scanner
Part Number:
96222212000-000530
Model:
Magellan 9600i
Full specifications (PDF)
Datalogic Magellan 9600i Fixed Barcode Scanner Model Overview
The MAGELLAN™ 9600i by Datalogic brings advanced scanning technology to the forefront of checkout solutions. Renowned as the #1 selling "in counter" scanners for both assisted and self-checkout, the 9600i combines a sleek design with robust durability and unparalleled scanning performance. Featuring cutting-edge imaging technology, it delivers the fastest read rates for a variety of barcode types, including 1D and 2D. With customizable configurations and an optional customer-facing reader, it enhances the checkout experience while supporting future AI capabilities for improved service and loss prevention.
Key features:
Specifications:
Key features:
- QuadVision™ Technology – Multi-core processor with 4 cameras for high-resolution scans.
- Integrated Loss Prevention – ScaleSentry™ technology detects misplacements to prevent under-weighing.
- Easy Maintenance – Capacitive touch buttons and smooth surfaces facilitate cleaning.
- Future-Proofed – Built-in neural processors for AI applications and advanced image capture.
- Customizable Design – Available in multiple chassis lengths with various mounting options.
Specifications:
- Decoding Capability: Auto discriminates all retail barcodes including EAN/JAN, UPC, GS1 DataBar, QR Code, and more.
- Illumination: Multiple diffused LEDs for optimal eye comfort.
- Communication Interfaces:
- Ethernet, RS-232, IBM 46XX, and USB options.
- Power Requirements: 12 VDC, nominal consumption: 9.3 Watts.
- Operating Conditions: 10 to 40 °C (50 to 104 °F), with non-condensing humidity 5-95%.
- Dimensions:
- Height (Above Counter): 13.4 cm (5.3 in)
- Depth (Below Counter): 10.2 cm (4 in)
- Length: Short - 35.2 cm (13.9 in), Medium - 39.9 cm (15.7 in), Long - 43.7 cm (17.2 in).
- Warranty: 1-Year Standard Factory Warranty.
Brand
Datalogic
Model
Magellan 9600i
