Datalogic Magellan 9600i – Barcode Scanner – Cable Only

Part Number: 96222211000-010530
Model: Parts
3-year Premium Plus ($54.70)
No, stay at premium support package
$1,672.57
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Features
Notification LEDDiagnostic ReportingSensormatic EASCheckpoint EAS
Display Screen
Yes
Cable Type Included
USB

Product Description:

  Barcode Scanners, Datalogic, Magellan 9600I Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount with Scale Sentry, US/Single Interval/English Config with Display, USB Pot Cable

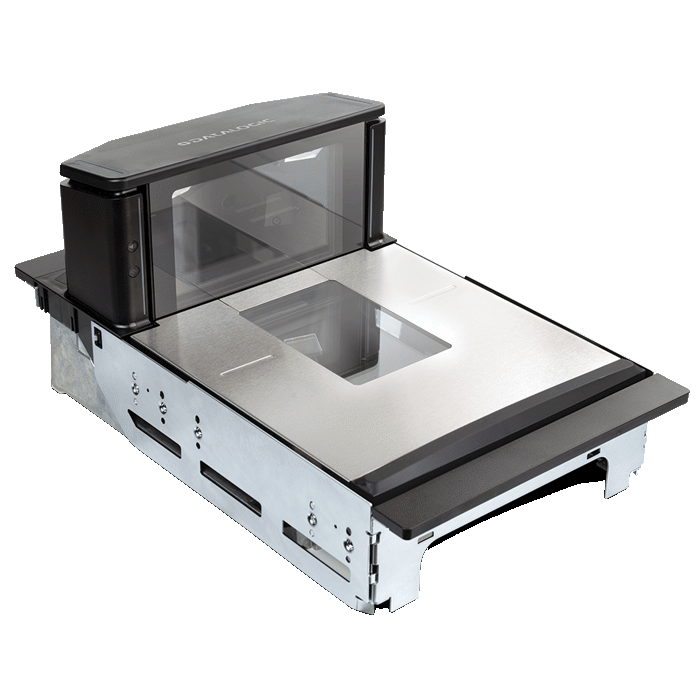

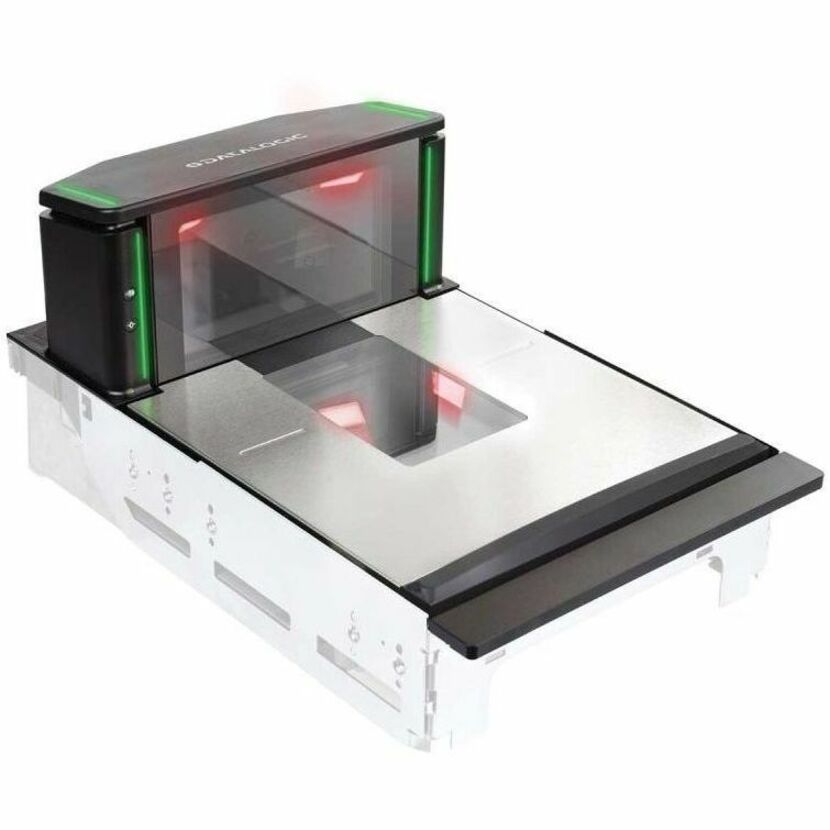

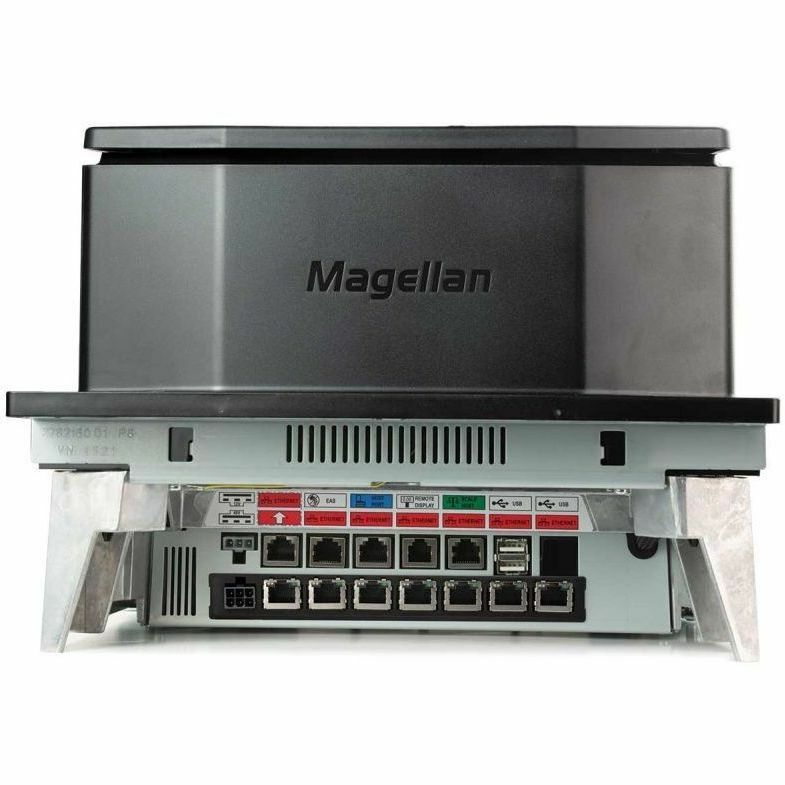

Datalogic Magellan 9600i Fixed Barcode Scanner Model Overview

The MAGELLAN™ 9600i by Datalogic brings advanced scanning technology to the forefront of checkout solutions. Renowned as the #1 selling "in counter" scanners for both assisted and self-checkout, the 9600i combines a sleek design with robust durability and unparalleled scanning performance. Featuring cutting-edge imaging technology, it delivers the fastest read rates for a variety of barcode types, including 1D and 2D. With customizable configurations and an optional customer-facing reader, it enhances the checkout experience while supporting future AI capabilities for improved service and loss prevention.
Key features:
  • QuadVision™ Technology – Multi-core processor with 4 cameras for high-resolution scans.
  • Integrated Loss Prevention – ScaleSentry™ technology detects misplacements to prevent under-weighing.
  • Easy Maintenance – Capacitive touch buttons and smooth surfaces facilitate cleaning.
  • Future-Proofed – Built-in neural processors for AI applications and advanced image capture.
  • Customizable Design – Available in multiple chassis lengths with various mounting options.

Specifications:
  • Decoding Capability: Auto discriminates all retail barcodes including EAN/JAN, UPC, GS1 DataBar, QR Code, and more.
  • Illumination: Multiple diffused LEDs for optimal eye comfort.
  • Communication Interfaces:
    • Ethernet, RS-232, IBM 46XX, and USB options.
  • Power Requirements: 12 VDC, nominal consumption: 9.3 Watts.
  • Operating Conditions: 10 to 40 °C (50 to 104 °F), with non-condensing humidity 5-95%.
  • Dimensions:
    • Height (Above Counter): 13.4 cm (5.3 in)
    • Depth (Below Counter): 10.2 cm (4 in)
    • Length: Short - 35.2 cm (13.9 in), Medium - 39.9 cm (15.7 in), Long - 43.7 cm (17.2 in).
  • Warranty: 1-Year Standard Factory Warranty.
Datalogic 96222211000-010530 Barcode Scanner Overview

Scanning Excellence with an AI Edge

THE NEXT GENERATION IS HERE

The #1 selling "in counter" scanners for assisted and self check-out are now even better. Fresh styling, rugged design, industry-leading scan performance and new options that enable Artificial Intelligence (AI) at the check-out put the Magellan 9600i portfolio in a class of its own.

With basic and advanced configurations, the 9600i scanner and scanner/scale is the perfect companion for Point of Sale (POS) systems in all high throughput check-out environments.

The ability to choose from 3 chassis lengths and multiple check stand mount options allows customers to have a tailored solution that solves all of their assisted and self check-out needs.

ENHANCING THE CASHIER OR CUSTOMER EXPERIENCE

Packed with the latest imaging technology, the 9600i scanners feature the largest scan volume in their class. This ensures fastest read rates and ease of use regardless of 1D, 2D, GS1 or Digimarc symbologies.

The new Magellan scanners feature capacitive touch buttons and smooth surfaces to ensure the above counter areas are easy to clean and sanitize.

The 9600i offers an optional external mounted customer-facing reader enabling customers to scan mobile devices and coupons independent from a cashier in assisted lanes.

FEATURES FOR TODAY AND THE FUTURE

Magellan 9600i is powered by QuadVision, a multi-core processor and multi-camera system with embedded Linux operating system to future-proof the platform. ScanSentry color camera options and neural processors coming in 2023 will result in a check-out that is fully enabled to support Artificial Intelligence (AI) software that will boost customer satisfaction and improve loss prevention.

Technical Information
Connectivity Technology:
Cable
Features:
  • Notification LED
  • Diagnostic Reporting
  • Sensormatic EAS
  • Checkpoint EAS
Display Screen:
Yes
Cable Type Included:
USB
Maximum Ambient Light:
86080 lux
Illumination Type:
LED
Air Electrostatic Discharge (+/-):
25kV
AI-powered:
Yes
Network & Communication
Infrared:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Maximum Operating Power Consumption:
9.30 W
Environmental Conditions
Operating Temperature:
50°F (10°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Form Factor:
In-counter
Rugged:
Yes
Width:
11.5"
Length:
17.2"
Miscellaneous
Package Contents:
  • MAGELLAN 9600i Barcode Scanner
  • USB POT Cable
Application/Usage:
  • Retail
  • Self-checkout
  • Industrial
Platform Supported:
  • PC
  • Linux
  • Android
Environmental Compliance:
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
1 Year
Additional Warranty Information:
  • 1-Year Standard Factory Warranty (5 day turn around)
Item Numbers
UNSPSC: 43211701
