Datalogic 96101001000-000530 Fixed Barcode Scanner

Part Number: 96101001000-000530
3-year Premium Plus ($54.70)
No, stay at premium support package
$1,152.30

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Barcode Symbology Supported
Auto Discriminates all Retail Barcodes: EAN/JAN/UPC Code 128 EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MicroPDF417 PDF417 UPC A/E Composites Aztec Code Data Matrix QR Code Micro QR Digimarc Barcode and all future GS1 Codes.
Scan Pattern
Omni-directional
Cable Type Included
USB

Product Description:

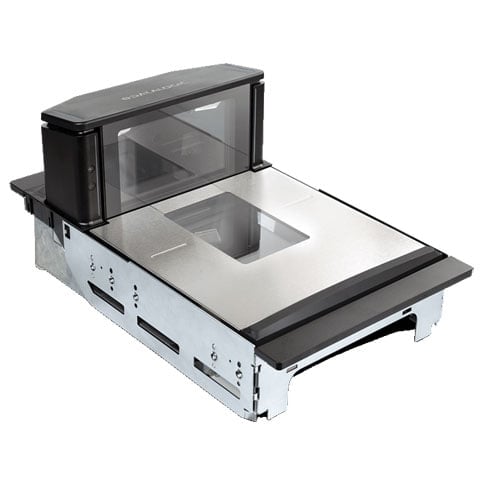

  Fixed Scanners, Datalogic Magellan 9600i, Scanner Only, Short Platter/Shelf Mount, USB POT Cable

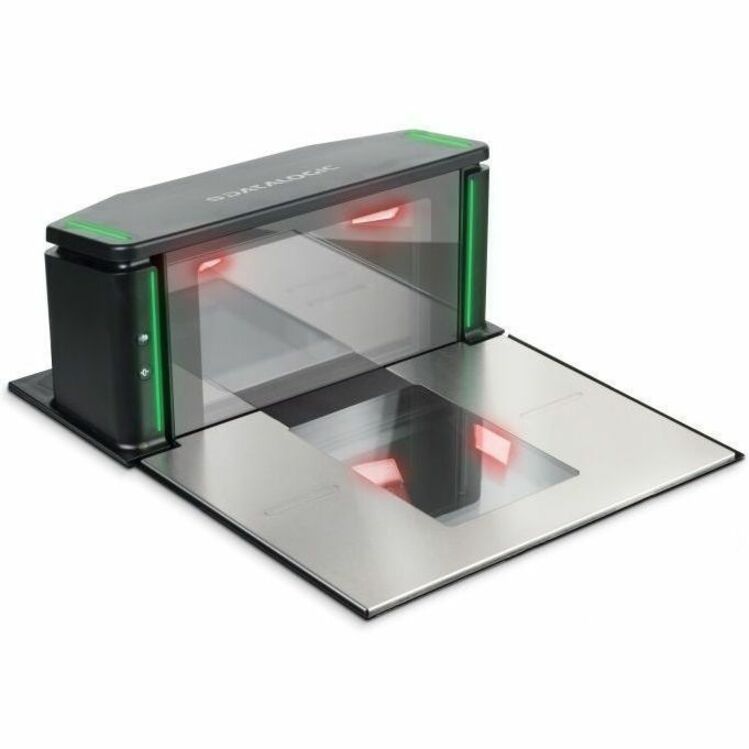

Datalogic Magellan 9600i Fixed Barcode Scanner Model Overview

The MAGELLAN™ 9600i by Datalogic brings advanced scanning technology to the forefront of checkout solutions. Renowned as the #1 selling "in counter" scanners for both assisted and self-checkout, the 9600i combines a sleek design with robust durability and unparalleled scanning performance. Featuring cutting-edge imaging technology, it delivers the fastest read rates for a variety of barcode types, including 1D and 2D. With customizable configurations and an optional customer-facing reader, it enhances the checkout experience while supporting future AI capabilities for improved service and loss prevention.
Key features:
  • QuadVision™ Technology – Multi-core processor with 4 cameras for high-resolution scans.
  • Integrated Loss Prevention – ScaleSentry™ technology detects misplacements to prevent under-weighing.
  • Easy Maintenance – Capacitive touch buttons and smooth surfaces facilitate cleaning.
  • Future-Proofed – Built-in neural processors for AI applications and advanced image capture.
  • Customizable Design – Available in multiple chassis lengths with various mounting options.

Specifications:
  • Decoding Capability: Auto discriminates all retail barcodes including EAN/JAN, UPC, GS1 DataBar, QR Code, and more.
  • Illumination: Multiple diffused LEDs for optimal eye comfort.
  • Communication Interfaces:
    • Ethernet, RS-232, IBM 46XX, and USB options.
  • Power Requirements: 12 VDC, nominal consumption: 9.3 Watts.
  • Operating Conditions: 10 to 40 °C (50 to 104 °F), with non-condensing humidity 5-95%.
  • Dimensions:
    • Height (Above Counter): 13.4 cm (5.3 in)
    • Depth (Below Counter): 10.2 cm (4 in)
    • Length: Short - 35.2 cm (13.9 in), Medium - 39.9 cm (15.7 in), Long - 43.7 cm (17.2 in).
  • Warranty: 1-Year Standard Factory Warranty.
Datalogic 96101001000-000530 Fixed Barcode Scanner Overview

The #1 selling 'in counter' scanners for assisted and self check-out are now even better. Fresh styling, rugged design, industry-leading scan performance and new options that enable Artificial Intelligence (AI) at the check-out put Datalogic's Magellan 9600i 'in-counter' scanners in a portfolio in a class of its own. With basic and advanced configurations, the 9600i scanner and scanner/scale is the perfect companion for Point of Sale (POS) systems in all high throughput check-out environme The ability to choose from 3 chassis lengths and multiple check stand mount options allows customers to have a tailored solution that solves all of their self check-out needs. Packed with the latest imaging technology, the 9600i scanners feature the largest scan volume in their class.This ensures fastest read rates and ease of use regardless of 1D, 2D, GS1 or Digimarc symbologies. The 9600i offers an optional external mounted customer-facing reader enabling customers to scan mobile devices and coupons independent from a cashier in assisted lanes. It is powered by a quad core processor with embedded Linux operating system to future-proof the platform.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
Auto Discriminates all Retail Barcodes:
  • EAN/JAN/UPC
  • Code 128
  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
  • Aztec Code
  • Data Matrix
  • QR Code
  • Micro QR
  • Digimarc Barcode and all future GS1 Codes.
Scan Pattern:
Omni-directional
Cable Type Included:
USB
Maximum Ambient Light:
86080 lux
AI-powered:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
In-counter
Rugged:
Yes
Width:
11.5"
Length:
13.9"
Miscellaneous
Application/Usage:
  • Industrial
  • Smartphone
  • Self-checkout
Platform Supported:
  • PC
  • Android
  • Linux
Item Numbers
UNSPSC: 43211701
