Datalogic 951451150 Products

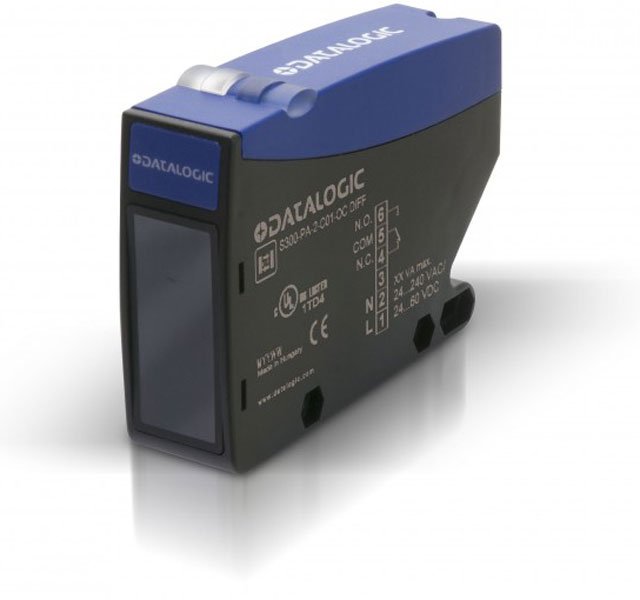

The MAXI SENSORS S300 PA is an advanced photoelectric sensor designed to deliver precision and reliability in various industrial applications. Housed in industrial plastic with robust IP67 protection, this sensor is suitable for both indoor and outdoor use, ensuring optimal performance in challenging environments. With a multi-voltage capability ranging from 12 to 240 Vac/Vdc, it offers versatile installation options and a comprehensive range of detection modes, including through beam, retroreflective, and diffuse proximity. Perfect for packaging, manufacturing, and gate control, the S300 PA simplifies setup with easy-to-use trimmers for distance and timing adjustments.

• IP67 mechanical protection ensures durability in harsh environments.
• Multivoltage compatibility (12 to 240 Vac/Vdc) for flexible usage.
• Multiple sensing modes: through beam, polarized retroreflective, and diffuse proximity.
• Timing functions range adjustable from 0.6 to 16 s, including ON delay, OFF delay, and ONE SHOT.
• Easy configuration with sensitivity trimmers and DIP switches for output settings.

• Power Supply: 12...30 Vdc or 24...240 Vac/24...60 Vdc
• Light Emission: Red LED 660 nm or IR LED 940 nm
• Connection: Terminal block for both Vdc and Vac/Vdc
• Output: NPN/PNP or relay, 100 mA (DC models) and 3 A max. (AC models)
• Response Time: 1 ms (for some models), 25 ms (relay)
• Operating Temperature: -25 ... 55 °C
• Dimensions: 25 x 100 x 70 mm
• Weight: 120 g (DC model), 130 g (AC model)
