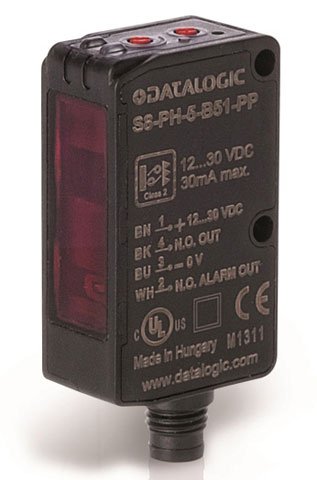

Datalogic S8 IO-Link Industrial Compact Sensor – Barcode Scanner

Discover unparalleled performance with the Datalogic S8 Compact Sensors. Designed for demanding detection applications, these sensors combine compact dimensions (14x42x25 mm) with advanced technology such as background suppression for transparent and shiny objects. The S8 model excels in speed with a switching frequency of up to 25 kHz. Ideal for industries such as food and beverage processing, cosmetics, pharmaceuticals, and electronics assembly, the S8 sensor is constructed with high-quality materials, available in ABS and INOX AISI 316L, ensuring long-lasting durability in challenging environments.

Key features:

• Compact Size: Dimensions of only 14x42x25 mm for easy integration.
• High-Speed Detection: Switching frequencies up to 25 kHz.
• Versatile Applications: Suitable for food, beverage, and pharmaceutical industries.
• Advanced Configuration: Fully configurable PNP/NPN/PP IO-Link outputs.
• Durability: Offers IP69K protection with stainless steel housing option.

Specifications:

• Power Supply: 12...30 Vdc
• Response Time: 1 ms to 20 us, depending on model
• Housing Material: ABS or Stainless Steel AISI 316L
• Operating Temperature: -10...55 °C
• Protection Rating: IP67, IP69K (stainless steel models)
• Weight: 12 g max. for connection versions
