Datalogic Magellan 9550i – Barcode Scanner

Magellan™ 9550i Overview

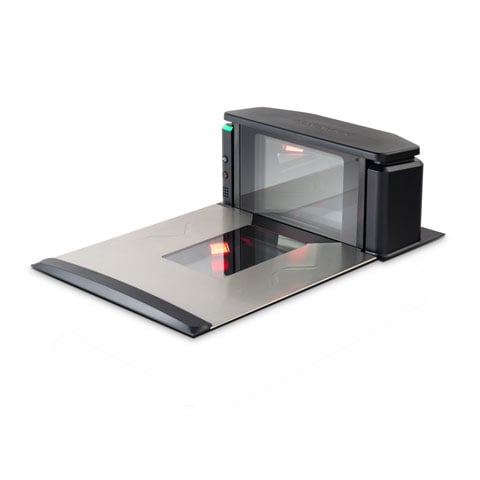

The Datalogic Magellan™ 9550i is a high-performance bi-optic scanner designed for retail environments that demand fast, reliable 1D and 2D barcode scanning with minimal power consumption. Built as a drop-in replacement for earlier Magellan models, it provides seamless integration, support for advanced digital workflows, and multiple scale options—all within a compact, cost-effective footprint.

Key Features

Performance & Scanning

• Enhanced 1D and 2D Scanning: 45% faster than previous-generation Magellan bi-optic scanners.

• GS1 Digital Link Ready: Built-in support for modern digital link standards.

• Seamless Read Coverage: Reads linear and 2D codes from five sides, plus an optional Customer Service Scanner (CSS).

• Low Power Consumption: Operates at only 2.6W (nominal), reducing energy costs.

Customer Service Scanner (CSS)

• Omni-mount Capable: Easily reads from mobile phones, loyalty cards, and coupons.

• Convenient Integration: Enhances customer self-service and cashier efficiency.

Drop-In Replacement

• Form-Factor Compatibility: Matches existing Magellan bi-optic dimensions.

• Accessory Compatibility: Uses same power supplies, cables, and scale displays as previous 93/94/96/99 series.

Optional In-Bonnet USB Color Camera

• AI-Ready Imaging: 1 MP (1280 x 1280 px) camera enables AI workflows such as produce recognition and loss prevention.

• Flexible Integration: Pairs with external PCs for advanced image capture solutions.

Loss Prevention Features

• All-Weighs Scale Platter: Adds a top surface weighing area for large items that don’t fit on traditional platters.

• Integrated EAS Support: Checkpoint/Nedap EAS antenna integration and Sensormatic deactivation.

Scale Options

• Single Interval Scale: Up to 15 kg / 30 lb capacity with 0.005 kg / 0.010 lb minimum increment.

• Dual Interval Scale:

  • Range 1: 0–6.0 kg / 0–15.0 lb (0.002 kg / 0.005 lb increment)

  • Range 2: 6.0–15.0 kg / 15.0–30.0 lb (0.005 kg / 0.010 lb increment)

Technical Specifications

• Power Supply: 12 VDC, 2.6W operating, 1.7W idle (nominal)

• Interfaces:

  • USB (COM/OEM/Keyboard)

  • RS-232 (Single/Dual Cable)

  • Auxiliary ports: USB host (x2), remote scale display, EAS controller

• Environmental:

  • Operating Temp: 10 to 40 °C / 50 to 104 °F

  • Storage Temp: -40 to 70 °C / -40 to 158 °F

  • Humidity: 5% to 95% non-condensing

  • ESD Protection: Up to 25kV air discharge

Decoding Capabilities

• 1D Codes: All standard linear barcodes including GS1 DataBar

• Stacked Codes: PDF417, MicroPDF417, GS1 DataBar Expanded/Stacked

• 2D Codes: Aztec, Data Matrix, QR Code, Micro QR Code

Reading & Imaging

• Imaging Output: BMP, JPEG formats; Greyscale options (256, 16, 2 levels)

• LED Illumination: Eye-safe, diffused lighting optimized for comfort

• Visual Indicators: Read confirmations, scale center of zero

Remote Management

• Compatible Systems: OPOS, JavaPOS (Windows/Linux)

• Tools: Diagnostic reporting, WMI, MBeans, Toshiba Remote Agent, DLRMUS, and more

Dimensions

• Height Above Counter: 13.0 cm / 5.1 in

• Depth Below Counter: 10.2 cm / 4.0 in

• Widths: 29.2 cm / 11.5 in

• Lengths by Model:

  • 9551 (Short): 35.6 cm / 14.0 in

  • 9553/9554 (Medium): 40.1 cm / 15.8 in

  • 9555/9556 (Long): 50.8 cm / 20.0 in

Software & Utilities

• Aladdin™ Configuration Utility: Available free for setup and updates

• OPOS & JavaPOS Utilities: Free download for POS integration

Compliance & Warranty

• Certifications: China RoHS, EU RoHS, REACH-compliant

• Warranty: Standard 1-year factory warranty

• Service Plans: EASEOFCARE coverage options available

The Magellan™ 9550i is designed to future-proof retail checkout systems with next-gen performance, energy efficiency, and intelligent hardware integration—all while maintaining compatibility with legacy infrastructure.

HIGH PERFORMANCE AND COST SAVINGS

The Magellan 9550i is the new addition to the range of powerful bi-optic scanners. It is the perfect value for money solution that offers the lowest power consumption on the market, without compromising performance.

The Magellan 9550i delivers 2D code reading that is an impressive 45% faster than the previous Magellan bi-optic generation and supports GS1 digital link.

DROP-IN REPLACEMENT

Magellan 9550i utilizes the same form-factor as our other Magellan bi-optics and is a simple drop-in replacement for any of the previous generation products. Additionally the 9550i uses the same power supply, scale display, and interface cables as 93/94/96/99 making stocking accessories easier.

SUPPORT TO LOSS PREVENTION

The 9550i includes the All-Weighs platter design for weighing accuracy as well as an optional in-bonnet USB color camera that supports AI workflows when paired with an external PC.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS on Windows or Linux-based systems.
