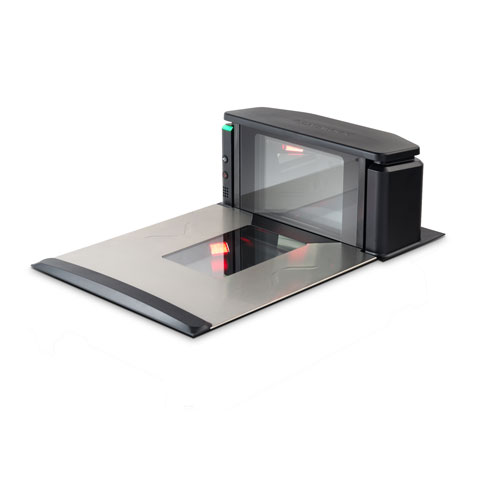

Datalogic Magellan 9550i – Barcode Scanner – Corded – 1D, 2D – Standard Range – Scanner Only

Magellan™ 9550i Overview

The Datalogic Magellan™ 9550i is a high-performance bi-optic scanner designed for retail environments that demand fast, reliable 1D and 2D barcode scanning with minimal power consumption. Built as a drop-in replacement for earlier Magellan models, it provides seamless integration, support for advanced digital workflows, and multiple scale options—all within a compact, cost-effective footprint.

Key Features

Performance & Scanning

• Enhanced 1D and 2D Scanning: 45% faster than previous-generation Magellan bi-optic scanners.

• GS1 Digital Link Ready: Built-in support for modern digital link standards.

• Seamless Read Coverage: Reads linear and 2D codes from five sides, plus an optional Customer Service Scanner (CSS).

• Low Power Consumption: Operates at only 2.6W (nominal), reducing energy costs.

Customer Service Scanner (CSS)

• Omni-mount Capable: Easily reads from mobile phones, loyalty cards, and coupons.

• Convenient Integration: Enhances customer self-service and cashier efficiency.

Drop-In Replacement

• Form-Factor Compatibility: Matches existing Magellan bi-optic dimensions.

• Accessory Compatibility: Uses same power supplies, cables, and scale displays as previous 93/94/96/99 series.

Optional In-Bonnet USB Color Camera

• AI-Ready Imaging: 1 MP (1280 x 1280 px) camera enables AI workflows such as produce recognition and loss prevention.

• Flexible Integration: Pairs with external PCs for advanced image capture solutions.

Loss Prevention Features

• All-Weighs Scale Platter: Adds a top surface weighing area for large items that don’t fit on traditional platters.

• Integrated EAS Support: Checkpoint/Nedap EAS antenna integration and Sensormatic deactivation.

Scale Options

• Single Interval Scale: Up to 15 kg / 30 lb capacity with 0.005 kg / 0.010 lb minimum increment.

• Dual Interval Scale:

  • Range 1: 0–6.0 kg / 0–15.0 lb (0.002 kg / 0.005 lb increment)

  • Range 2: 6.0–15.0 kg / 15.0–30.0 lb (0.005 kg / 0.010 lb increment)

Technical Specifications

• Power Supply: 12 VDC, 2.6W operating, 1.7W idle (nominal)

• Interfaces:

  • USB (COM/OEM/Keyboard)

  • RS-232 (Single/Dual Cable)

  • Auxiliary ports: USB host (x2), remote scale display, EAS controller

• Environmental:

  • Operating Temp: 10 to 40 °C / 50 to 104 °F

  • Storage Temp: -40 to 70 °C / -40 to 158 °F

  • Humidity: 5% to 95% non-condensing

  • ESD Protection: Up to 25kV air discharge

Decoding Capabilities

• 1D Codes: All standard linear barcodes including GS1 DataBar

• Stacked Codes: PDF417, MicroPDF417, GS1 DataBar Expanded/Stacked

• 2D Codes: Aztec, Data Matrix, QR Code, Micro QR Code

Reading & Imaging

• Imaging Output: BMP, JPEG formats; Greyscale options (256, 16, 2 levels)

• LED Illumination: Eye-safe, diffused lighting optimized for comfort

• Visual Indicators: Read confirmations, scale center of zero

Remote Management

• Compatible Systems: OPOS, JavaPOS (Windows/Linux)

• Tools: Diagnostic reporting, WMI, MBeans, Toshiba Remote Agent, DLRMUS, and more

Dimensions

• Height Above Counter: 13.0 cm / 5.1 in

• Depth Below Counter: 10.2 cm / 4.0 in

• Widths: 29.2 cm / 11.5 in

• Lengths by Model:

  • 9551 (Short): 35.6 cm / 14.0 in

  • 9553/9554 (Medium): 40.1 cm / 15.8 in

  • 9555/9556 (Long): 50.8 cm / 20.0 in

Software & Utilities

• Aladdin™ Configuration Utility: Available free for setup and updates

• OPOS & JavaPOS Utilities: Free download for POS integration

Compliance & Warranty

• Certifications: China RoHS, EU RoHS, REACH-compliant

• Warranty: Standard 1-year factory warranty

• Service Plans: EASEOFCARE coverage options available

The Magellan™ 9550i is designed to future-proof retail checkout systems with next-gen performance, energy efficiency, and intelligent hardware integration—all while maintaining compatibility with legacy infrastructure.
