Full specifications (PDF)
Connectivity Technology:
Wireless
Datalogic 94S151245 Data Terminal
Part Number:
94S151245

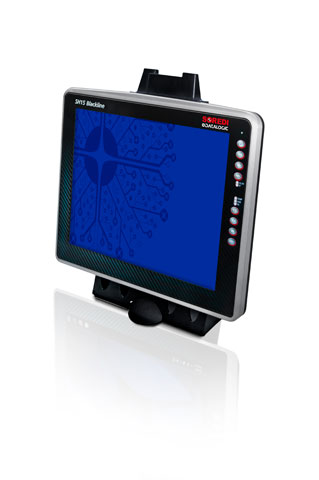

DataLogic SH15 Blackline - SH21 Blackline Mobile Computer Model Overview
The SH15 Blackline and SH21 Blackline series of industrial computers by Datalogic are engineered to thrive in the most demanding environments. The SH15 version serves as a rugged vehicle mount computer ideally suited for various industrial settings, while the SH21 is designed for wall or fixed mount applications. Both models feature an IP65/IP67 rated sealed design, ensuring dust and moisture protection. Equipped with a capacitive touch display that works with gloves, users can effortlessly manage warehouse operations, open technical drawings, and enhance productivity during crucial tasks such as shipping and receiving.
Key Features:
- Sealed Design: IP65/IP67 rating for dust and moisture protection.
- Multi-Touch Operation: Capacitive touch screen functional while wearing gloves.
- Rugged Construction: Resistant to mechanical impacts, shock, and vibration.
- Versatile Mounting Options: Suitable for vehicle and wall installations.
- Wide Temperature Range: Operates in environments from -20 to 55 °C.
Specifications:
- Display:
- SH15: XGA 1024 x 768, 15.0 in, 400 cd/m²
- SH21: WUXGA 1920 x 1080, 21.0 in, 300 cd/m²
- Processor:
- SH15: Intel Atom E3845 Quad Core 1.91 GHz
- SH21: Intel i5-5350U Dual Core 1.8 GHz
- Memory:
- SH15: 4 GB RAM
- SH21: 16 GB RAM
- Operating System: Windows® Embedded Standard 7 or Windows 10 IoT Enterprise
- Battery Backup: Optional 2,500 mAh backup for 30 min runtime
- Weight:
- SH15: 6.5 kg
- SH21: 10.8 kg
- Wireless Communications:
- Bluetooth Wireless Technology 4.0
- Wi-Fi: 802.11a/b/g/n
Datalogic 94S151245 Data Terminal Overview
SH15 Blackline / SH21 Blackline
The SH15 Blackline computer is a rugged vehicle mounted computer (VMC) as well as a fixed mount unit. The SH21 Blackline computer is an industrial computer designed for a wall or fixed mount environments. Both computers can be used in most any industrial application.
Technical Information
Processor & Chipset
Processor Model:
i5-5350U
Processor Core:
Dual-core (2 Core)
Processor Type:
Core i5
Processor Speed:
1.80 GHz
Memory
Standard Memory:
16 GB
Flash Memory:
32 GB
Display & Graphics
Screen Size:
15"
Graphics Modes:
XGA
Display Screen Type:
LED
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Display Resolution:
1024 x 768
Network & Communication
Bluetooth:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Network (RJ-45):
Yes
Serial:
Yes
USB:
Yes
Power Description
Power Source:
Power Supply
Software
Operating System:
Windows 10 IoT
Physical Characteristics
Weight (Approximate):
15.43 lb
Miscellaneous
Certifications & Standards:
- CE
- FCC
- IP65
- IP67
- EN 60721-3-5: 1998
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Questions? Get Help from
a Mobile Expert!
a Mobile Expert!
The Datalogic 94S151245 Data Terminal is also known as
94S151245
