Datalogic Falcon X3+ – Mobile Computer

Part Number: 945250074
Model: Falcon X3+

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
Laser
Standard Memory
256 MB
Flash Memory
1 GB

Product Description:

  Pistol Grip, 802.11 A/B/G /N Ccx V4, Blue Tooth V2.1, 256Mb Ram/1Gb Flash, Qvga, 29-Key Functional Numeric F1-F12, High Performance Laser W/Green Spot. Charging Docks And Power Supply Sold Separately. Single Slot Charging Dock Includes Power Supply And Cable (Part# 94A150057). Quad Charging Dock (Part# 94A151135) Require Power Cord (Part# 95Acc1113).

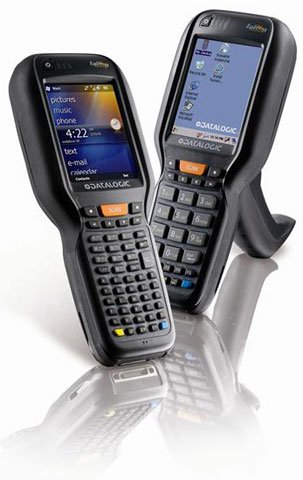

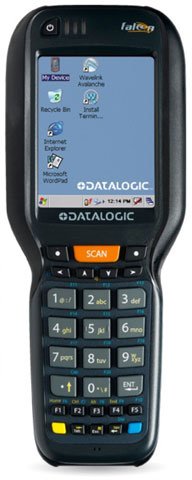

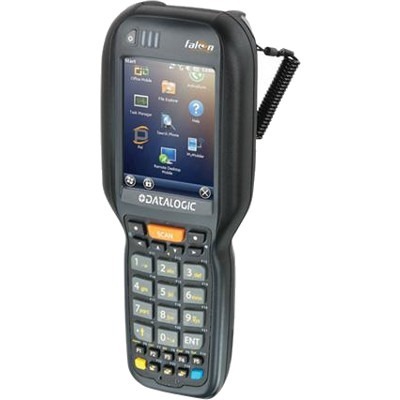

Datalogic Falcon X3+ Mobile Computer Model Overview

The FALCON™ X3+ by Datalogic is an advanced real-time data capture device designed for various industries, including warehousing and distribution, retail, and manufacturing. Featuring a powerful combination of 1D laser and 2D imaging technologies, this handheld scanner ensures accuracy and speed while capturing barcodes. With its robust design—including an IP65 sealing rating and a Corning® Gorilla® Glass 3 scan exit window—the Falcon X3+ can withstand daily abuse while delivering exceptional performance throughout long shifts.


Key Features

  • Versatile scanning capabilities: Supports both 1D laser and 2D imaging technologies.
  • Ergonomic design: Comfortable handheld and pistol grip form factors for all-day use.
  • Robust construction: Withstands drops from up to 1.8 m (6 ft) and has an IP65 rating against dust and water.
  • High-performance camera: 3.1 Megapixel auto-focus camera for robust image capture.
  • Industry-leading software: Compatible with Datalogic’s Software Development Kit (SDK) for custom solutions.

Specifications

  • Wireless Communications: 802.11 a/b/g/n with CCX v4 certification, Bluetooth 2.1
  • Battery: Removable Li-ion battery, 5200 mAh
  • Environmental:
    • Drop resistance: 1.8 m / 6.0 ft
    • Temperature range: -20 to 50 °C / -4 to 122 °F
    • IP65 sealing rating for water and dust resistance
  • Processor: XScale™ PXA310 806 MHz with Cortex-M3
  • Memory: 256 MB RAM, 1 GB Flash memory
  • Dimensions:
    • Handheld: 22.5 x 8.8 x 5.5 cm
    • Pistol grip: 22.5 x 8.8 x 16.8 cm
  • Display: 3.5-inch touch screen with QVGA or VGA options
Datalogic 945250074 Mobile Computer Overview

The Falcon™ X3+ mobile computer delivers the ultimate in ruggedness, ergonomics, computing and data capture technologies, while providing a tailored solution for demanding environments needing real-time transaction visibility.

The Falcon's Laird/Summit IEEE 802.11 a/b/g/n dual band Wi-Fi radio provides exceptional data throughput along with a new diversity antenna system for maximum coverage. The CCX v4 certification provides encryption levels for PCI compliance and seamless high speed roaming across large facilities.

Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Memory
Standard Memory:
256 MB
Flash Memory:
1 GB
Memory Card Supported:
  • microSD
  • microSDHC
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
320 x 240
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Software
Operating System:
Windows CE 6.0
Physical Characteristics
Form Factor:
Gun
Height:
8.9"
Width:
3.5"
Depth:
6.6"
Weight (Approximate):
1.49 lb
Item Numbers
UNSPSC: 43211715
