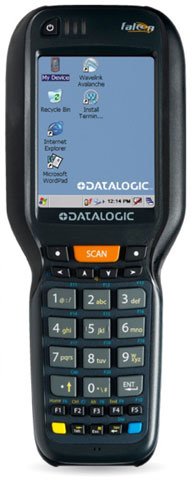

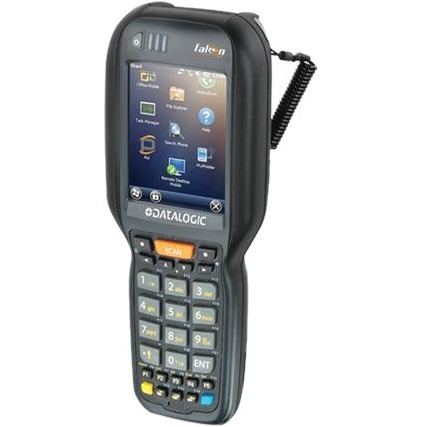

Datalogic 945250055 Mobile Computer

Datalogic 945550009 Mobile Computer A newer version of this item is available.
It is replaced by the Datalogic 945550009 Mobile Computer.
Datalogic Falcon X3+ - Standard Range 2D Imager, 29-key Numeric Keypad, Pistol Grip, No Camera, Windows CE 6.0, QVGA Display, Bluetooth/Wifi (802.11 a/b/g/n), Standard Memory. Charging Docks and Power Supply Sold Separately. Single slot charging dock includes power supply and cable (Part# 94A150057). Quad Charging dock (Part# 94A151135) require power cord (Part# 95ACC1113).
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • The secure wireless connectivity allows your employees to stay productive while away from their desks
  • 3.5" QVGA display screen allows you to execute two applications at the same time
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Numeric keyboard type for reliable user-friendliness with maximum productivity
  • Windows CE 6.0 OS helps the clients smartly adapt to their business needs
  • 256 MB RAM / 1 GB flash memory helps run applications rapidly and stores the mightiest databases
  • microSD memory card slot can be accessed easily by the user to expand storage
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections
Read More

Need a different version? See all Datalogic Falcon X3+ Mobile Computers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Datalogic 945250055 Mobile Computer
Datalogic 945250055 Mobile Computer Datalogic 945250055 Mobile Computer Datalogic 945250055 Mobile Computer Datalogic 945250055 Mobile Computer Datalogic 945250055 Mobile Computer
Datalogic 945250055 Mobile Computer
Datalogic 945250055 Mobile Computer
Datalogic 945250055 Mobile Computer
Datalogic 945250055 Mobile Computer
Datalogic 945250055 Mobile Computer
Full specifications (PDF)
Datalogic Falcon X3+ Mobile Computer Model Overview
The Falcon X3+ mobile computer delivers the ultimate in ruggedness, ergonomics, computing and data capture technologies, while providing a tailored solution for demanding environments needing real-time transaction visibility. The Laird/Summit IEEE 802.11 a/b/g/n dual band Wi-Fi radio provides exceptional data throughput along with a new diversity antenna system for maximum coverage. The CCX v4 certification provides encryption levels for PCI compliance and seamless high speed roaming across large facilities.
Datalogic 945250055 Mobile Computer Overview

The Falcon™ X3+ mobile computer delivers the ultimate in ruggedness, ergonomics, computing and data capture technologies, while providing a tailored solution for demanding environments needing real-time transaction visibility.

The Falcon's Laird/Summit IEEE 802.11 a/b/g/n dual band Wi-Fi radio provides exceptional data throughput along with a new diversity antenna system for maximum coverage. The CCX v4 certification provides encryption levels for PCI compliance and seamless high speed roaming across large facilities.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Barcode Symbology Supported:
1D / Linear Codes:
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:
  • Aztec Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:
  • Australian Post
  • Intelligent Mail
  • Japan Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Drop Specification:
  • 1m
Drop Specification (To Concrete):
70.87"
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale PXA310
Processor Speed:
806 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
1 GB
Memory Card Slot:
Yes
Memory Card Supported:
  • microSD
  • microSDHC
Display & Graphics
Screen Size:
3.5"
Screen Mode:
QVGA
Screen Resolution:
320 x 240
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Bluetooth:
Yes
Interfaces/Ports
USB:
Yes
Serial:
Yes
Camera
Effective Camera Resolution:
No
Rear Camera:
No
Software
Operating System:
Windows CE 6.0
Battery Information
Battery Capacity:
5200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Height:
8.9"
Width:
3.5"
Depth:
6.6"
Weight (Approximate):
1.49 lb
Item Numbers
GTIN: 0733199200745, 5054484766544
UPC: 733199200745
EAN: 0733199200745, 5054484766544
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Datalogic 945250055 Mobile Computer is also known as DTL-945250055 or 945250055.
