Datalogic 945250053 Mobile Computer

A newer version of this item is available.
It is replaced by the Datalogic 943500048 Mobile Computer.

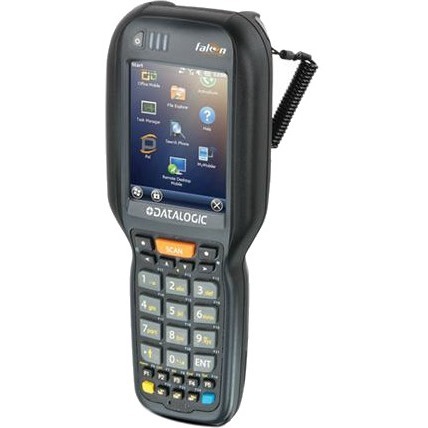

Datalogic Falcon X3+ - Auto-Ranging 1D Laser Scanner, 29-key Numeric Keypad, Pistol Grip, No Camera, Windows CE 6.0, QVGA Display, Bluetooth/Wifi (802.11 a/b/g/n), Standard Memory. Charging Docks and Power Supply Sold Separately. Single slot charging dock includes power supply and cable (Part# 94A150057). Quad Charging dock (Part# 94A151135) require power cord (Part# 95ACC1113).

Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
3.5" QVGA display screen allows you to execute two applications at the same time
Features numeric keypad to meet different client and application needs
Laser scan engine guarantees rapid error free data entry
Windows CE 6.0 OS helps the clients smartly adapt to their business needs
256 MB RAM / 1 GB flash memory helps run applications rapidly and stores the mightiest databases
microSD memory card slot can be accessed easily by the user to expand storage
Wireless connectivity provides computing versatility throughout the workplace
Experience the versatility of Bluetooth connectivity with your Datalogic Handheld Terminal

Need a different version? See all Datalogic Falcon X3+ Mobile Computers

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Datalogic Falcon X3+ Mobile Computer Model Overview

The Falcon X3+ mobile computer delivers the ultimate in ruggedness, ergonomics, computing and data capture technologies, while providing a tailored solution for demanding environments needing real-time transaction visibility. The Laird/Summit IEEE 802.11 a/b/g/n dual band Wi-Fi radio provides exceptional data throughput along with a new diversity antenna system for maximum coverage. The CCX v4 certification provides encryption levels for PCI compliance and seamless high speed roaming across large facilities.

Datalogic 945250053 Mobile Computer Overview

The Falcon™ X3+ mobile computer delivers the ultimate in ruggedness, ergonomics, computing and data capture technologies, while providing a tailored solution for demanding environments needing real-time transaction visibility.

The Falcon's Laird/Summit IEEE 802.11 a/b/g/n dual band Wi-Fi radio provides exceptional data throughput along with a new diversity antenna system for maximum coverage. The CCX v4 certification provides encryption levels for PCI compliance and seamless high speed roaming across large facilities.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Light Source:

Laser

Scanner Range:

Long Range

Barcode Symbology Supported:

1D / Linear Codes:

Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes

Drop Specification:

Drop Specification (To Concrete):

70.87"

Processor & Chipset

Processor Manufacturer:

Marvell

Processor Type:

XScale PXA310

Processor Speed:

806 MHz

Memory

Standard Memory:

256 MB

Flash Memory:

1 GB

Memory Card Slot:

Yes

Memory Card Supported:

microSD
microSDHC

Display & Graphics

Screen Size:

3.5"

Screen Mode:

QVGA

Screen Resolution:

320 x 240

Display Color:

Color

Display Screen Type:

LCD

Touchscreen Information

Touchscreen:

Yes

Keyboard/Keypad

Keyboard Type:

Numeric

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Bluetooth:

Yes

Interfaces/Ports

USB:

Yes

Serial:

Yes

Camera

Effective Camera Resolution:

Rear Camera:

Software

Operating System:

Windows CE 6.0

Battery Information

Battery Capacity:

5200 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Height:

8.9"

Width:

3.5"

Depth:

6.6"

Weight (Approximate):

1.49 lb

Item Numbers

GTIN: 5712505290729

EAN: 5712505290729

UNSPSC: 43211715
