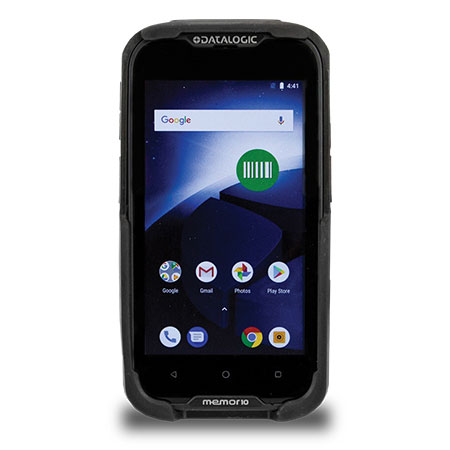

Datalogic 944350022 Mobile Computer

The Datalogic 944350022 Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Datalogic Memor 10 Healthcare - Mobile Computer, Datalogic Memor 10, 2D Imager, Touchscreen, Wi-Fi/WWAN, Android 8.1, 3 GB RAM/32 GB Flash, IP65, Phone-size, PDA, North America, Wi-Fi + LTE, Ultra-Slim, Green Spot, GMS, White, Healthcare. Single Slot Dock (Part # 94A150098), Power Supply (Part # 94ACC0197) and Power Cord (Part # 95ACC1113) sold separately.

Ultra-Ergonomic, compact and robust
5 inch capacitive multi-touch HD display with
Dragontrail™ hardened glass
Android 8.1 (Oreo) with Google Mobile Services
Wireless charging eliminates all contacts on the
device and cradle
Ruggedized with drop resistance to 1.5m / 5ft to
concrete and IP65 sealing
Dual band Wi-Fi including the latest 802.11ac
standard and 802.11r/k for fast roaming
Full suite of cellular connectivity for voice and
data, featuring LTE-Advanced/4G+
Assisted GPS for location based apps
Bluetooth v4.2 short range wireless technology
NFC for proximity communications

Need a different version? See all Datalogic Memor 10 Mobile Computers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Datalogic Memor 10 Mobile Computer Model Overview

Bringing the power and performance of a smartphone with the user-friendly experience of Android, Datalogic brings you the Memor 10. The slim and compact device comes built with an integrated 2D imager fully featured and Enterprise ready. The rugged mobile computer also incorporates Datalogic's industry-first wireless charging system for ultra-reliable contactless charging. The Memor 10 is one of the first rugged mobile computers to be validated by Google for the Android Enterprise Recommended for rugged mobile devices.

Datalogic 944350022 Mobile Computer Overview

MEMOR™ 10 - THE POWER OF A SMARTPHONE, DESIGNED FOR ENTERPRISE

If you are looking for the power and the performance of a smartphone but are concerned about the typical Enterprise challenges, the new Datalogic Memor 10 PDA is the perfect rugged device for you!

Memor 10 incorporates the latest smartphone technologies and the user friendly experience of Android™ in a slim and compact design, combined with high performance 1D/2D bar code scanning and industrial robustness for almost any indoor or outdoor environment.

TOP PERFORMANCE

The Memor 10 is powered by a superior octa-core platform clocked at 2 GHz for top performance with the most demanding applications, and features Android 8.1 (Oreo) with Google Mobile Services (GMS).

Moreover, the Memor 10 is one of the first rugged mobile computers to be validated by Google for the 'Android Enterprise Recommended' program for rugged devices.

WIRELESS CHARGING MEETS SWAPPABLE BATTERY

The Memor 10 incorporates Datalogic's industry-first wireless charging system for ultra-reliable contactless charging, thus eliminating the need for cleaning contacts on the device and docks. Moreover, Memor 10 offers a 1-piece swappable battery for the best operational advantage.

COMMUNICATIONS

The Memor 10 leverages a complete set of embedded wireless technologies for both indoor and outdoor applications: dual band Wi-Fi including the latest 802.11ac standard, Bluetooth® v4.2 with BLE for fast and ultra-low power connections, NFC for easy pairing, and particularly the cellular area voice and data connectivity, already leveraging the next generation of LTE- Advanced/4G+.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Image Sensor Type:

Imager

Scanner Range:

Standard Range

Google Mobile Services (GMS):

Yes

Wireless Charging:

Yes

Sensor Type:

Gyroscope
Accelerometer
Ambient Lighting
Proximity

Features:

Drop Resistant
Chemical Resistant
Oil Resistant

Drop Specification:

Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/concrete according to IEC 68-2-32 Method 2 and MIL STD 810G Transit drop test

Illumination Type:

LED

Illumination Color:

White

Depth of Field:

8.5 to 50 cm / 3.3 to 19.7 in depending on bar code density and type

Processor & Chipset

Processor Core:

Octa-core (8 Core)

Processor Speed:

2 GHz

Memory

Standard Memory:

3 GB

Flash Memory:

32 GB

Memory Card Supported:

microSD
microSDHC

Display & Graphics

Screen Size:

Screen Mode:

Screen Resolution:

720 x 1280

Display Screen Type:

LED

Touchscreen Information

Touchscreen:

Yes

Multi-touch Screen:

Yes

Keyboard/Keypad

Buttons & Keys:

Physical Keys: 2 side scan keys; Power On/ Off; Volume Up/Down; 3 user programmable Android™ keys

Network & Communication

Wireless LAN:

Yes

Bluetooth:

Yes

Bluetooth Standard:

Bluetooth 4.2

Near Field Communication (NFC):

Yes

Cellular Data Connectivity Technology:

LTE Advanced
4G

GPS:

Yes

Interfaces/Ports

USB:

Yes

USB Type-C:

Yes

Software

Operating System:

Android 8.1 Oreo

Power Description

Power Source:

Battery

Battery Information

Battery Capacity:

4100 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Battery Voltage:

3.80 V

Removable Battery:

Yes

Environmental Conditions

Operating Temperature:

-4°F (-20°C) to 122°F (50°C)

Storage Temperature:

-22°F (-30°C) to 158°F (70°C)

Physical Characteristics

Form Factor:

Phone-size

Rugged:

Yes

Weight (With Battery):

10.05 oz

Miscellaneous

Package Contents:

MEMOR 10 Handheld Terminal
Battery

Application/Usage:

Retail
Transportation
Logistics
Healthcare
Manufacturing

Ingress Protection (IP) Rating:

IP65

Environmentally Friendly:

Yes

Environmental Certification:

EU RoHS

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211715

Reviews

Q&A

Accessories

Service Contracts

Questions? Get Help from
a Mobile Expert!

The Datalogic 944350022 Mobile Computer is also known as DTL-944350022 or 944350022.
