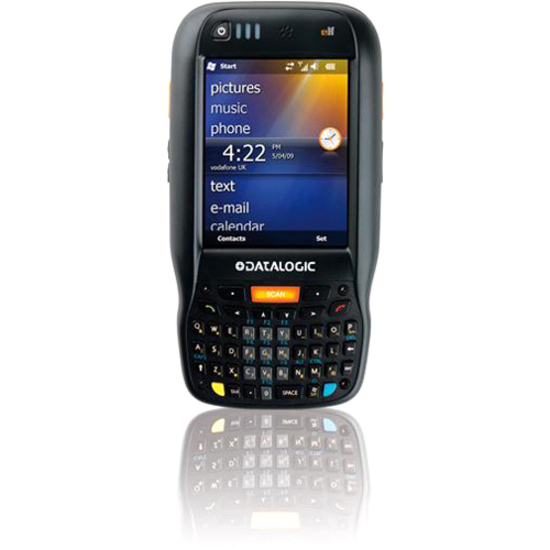

Datalogic Elf – Mobile Computer

Part Number: 944301002
Model: Elf
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
Laser
Barcode Symbology Supported
GS1 DatabarEAN/UPCCode 392/5 CodesPlesseyCodabarCode 128EAN128MSICode 93Code 11
Drop Specification (To Concrete)
60"

Product Description:

  Elf, Wi-Fi (802.11a/b/g), 3.5G UMTS HSDPA, Bluetooth, 1D Laser, Green Spot, Windows Mobile 6.5, 46 key QWERTY.
Explore all Datalogic Elf Mobile Computers
Add to Quote
Datalogic Mobile Computer
Datalogic Mobile Computer
Datalogic Mobile Computer
Datalogic Mobile Computer Datalogic Mobile Computer Datalogic Mobile Computer
Full specifications (PDF)

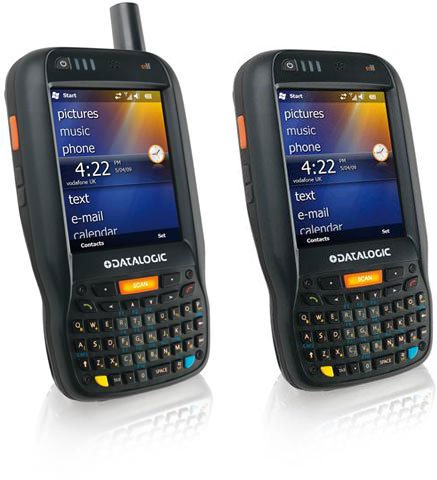

Datalogic Elf Mobile Computer Model Overview

The Datalogic Elf packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Getting a job done quickly has never been easier with a 624 MHz processor and 256 MB RAM. The Elf has a Micro SD card slot supporting SDHC storage cards provides for virtually unlimited storage space for photos taken with the onboard 3MP camera. The Elf features both a 1D laser scanner and 2D barcode imager enable a wide array of barcodes seen across diverse enterprises. Both have Datalogic's patented Green Spot good read technology to improve user efficiency and accuracy HF RFID readers available in combination with barcode readers complete the package. The Elf PDA provides four wireless technologies in the same form factor: Bluetooth EDR for fast data transfer, 802.11 a/b/g with Cisco Certified security, UMTS HSDPA for real-time communication outside the enterprise and GPS for location based applications and directions.
Datalogic Mobile Computer Overview

Elf offers the latest Windows Mobile 6.5 platform, with the Datalogic SDK and tools for integrating voice, pictures, and video to create or enhance existing mobility software solutions. Wavelink device management tools make Elf a simple device to both deploy and maintain.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Barcode Symbology Supported:
  • GS1 Databar
  • EAN/UPC
  • Code 39
  • 2/5 Codes
  • Plessey
  • Codabar
  • Code 128
  • EAN128
  • MSI
  • Code 93
  • Code 11
Drop Specification (To Concrete):
60"
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
624 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
3.5"
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
46
Keyboard Layout:
QWERTY
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Cellular Data Connectivity Technology:
  • UMTS
  • HSDPA
GPS:
Yes
Wireless Security:
CCX v4
Software
Operating System:
Windows Mobile 6.5
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Miscellaneous
Package Contents:
  • elf 944301002 Handheld Terminal
  • Battery
Certifications & Standards:
  • Environmental Sealing: IP64
  • CE
  • TUV
Item Numbers
GTIN: 4054318740734
EAN: 4054318740734
UNSPSC: 43211715
