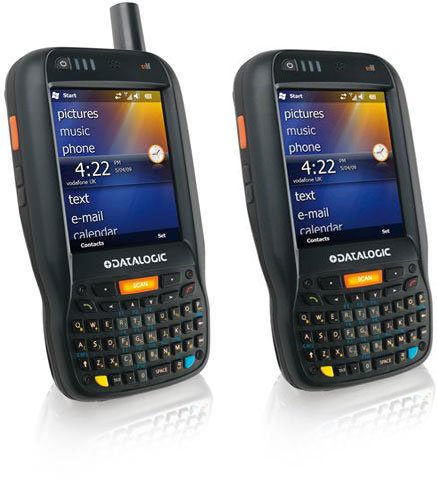

Datalogic Elf – Mobile Computer

Part Number: 944300066
Model: Elf
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Image Sensor Type
Imager
Standard Memory
256 MB
Flash Memory
256 MB

Product Description:

  Bluetooth v2.0, Wi-Fi (802.11a/b/g), Std 2D Imager w/ Green Spot, Camera 3M Pixel, WEHH 6.5, 256MB RAM/256MB Flash, 27-Key Numeric. Requires power supply (P/N 94ACC1380)
Explore all Datalogic Elf Mobile Computers
Add to Quote

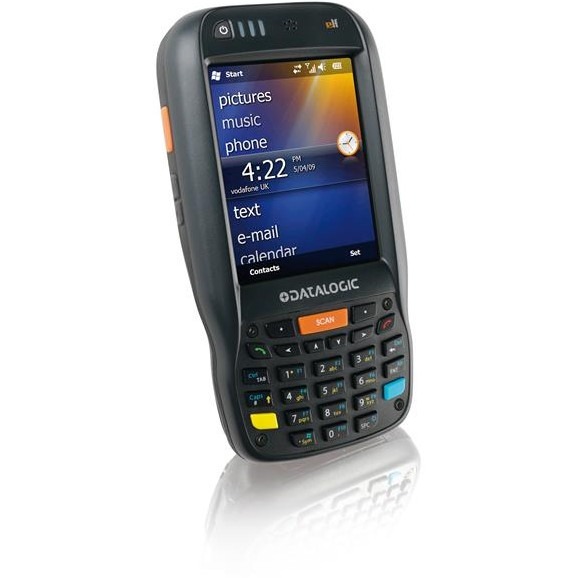

Datalogic 944300066 Mobile Computer
Datalogic 944300066 Mobile Computer
Datalogic 944300066 Mobile Computer
Datalogic 944300066 Mobile Computer Datalogic 944300066 Mobile Computer Datalogic 944300066 Mobile Computer
Full specifications (PDF)

Datalogic Elf Mobile Computer Model Overview

The Datalogic Elf packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Getting a job done quickly has never been easier with a 624 MHz processor and 256 MB RAM. The Elf has a Micro SD card slot supporting SDHC storage cards provides for virtually unlimited storage space for photos taken with the onboard 3MP camera. The Elf features both a 1D laser scanner and 2D barcode imager enable a wide array of barcodes seen across diverse enterprises. Both have Datalogic's patented Green Spot good read technology to improve user efficiency and accuracy HF RFID readers available in combination with barcode readers complete the package. The Elf PDA provides four wireless technologies in the same form factor: Bluetooth EDR for fast data transfer, 802.11 a/b/g with Cisco Certified security, UMTS HSDPA for real-time communication outside the enterprise and GPS for location based applications and directions.
Datalogic 944300066 Mobile Computer Overview
Capitalizing on Datalogic's legendary ergonomics, the Elf PDA packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation.

Both a 1D laser scanner and 2D bar code imager enable a wide array of bar codes seen across diverse enterprises. Both have Datalogic's patented 'Green Spot' good-read technology to improve user efficiency.

The Elf PDA provides four wireless technologies in the same form factor: Bluetooth EDR for fast data transfer, 802.11 a/b/g with Cisco Certified security, UMTS HSDPA for real-time communication outside the enterprise Assisted GPS (A-GPS) with Skyhook's Core Engine hybrid positioning system for location based applications.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Memory Card Supported:
  • microSD
  • microSDHC
Display & Graphics
Screen Size:
3.5"
Screen Mode:
VGA
Screen Resolution:
640 x 480
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
27
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Camera
Rear Camera:
Yes
Software
Operating System:
Microsoft Windows Embedded Handheld 6.5
Battery Information
Battery Included:
Yes
Physical Characteristics
Height:
6.2"
Width:
3.2"
Depth:
1.7"
Weight (Approximate):
15.52 oz
Miscellaneous
Package Contents:
  • elf Handheld Terminal
  • Rechargeable Li-ion High Capacity Battery
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0800953386141
UPC: 800953386141
EAN: 0800953386141
UNSPSC: 43211715
