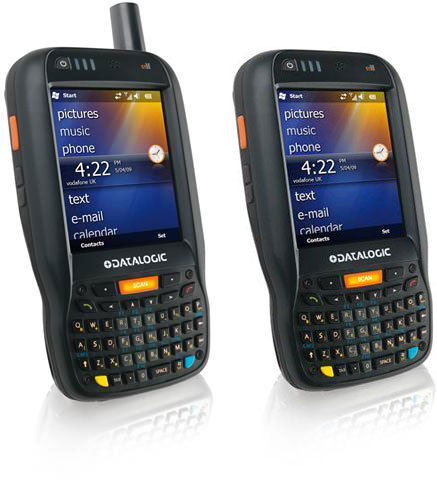

Datalogic Elf – Mobile Computer

Part Number: 944300032
Model: Elf
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Image Sensor Type
Imager
Barcode Symbology Supported
UPC AUPC EEAN 8EAN 13Interleaved 2of 5Code 39Code 39 Full ASCIICodabarCode 128EAN 128Code 93MSIPDF417Micro PDFDataMatrixQRGS1 DatabarAztecMaxicodePOSTNETPLANETJapan PostAustralia PostKIX CodeRoyal Mail RM4SCCUSPS 4CBUPU FICS
Drop Specification (To Concrete)
60"

Product Description:

  ELF,BT,V2.0,802.11 a/b/g,2D,Windows CE 6.0,46-Key QWERTY
Explore all Datalogic Elf Mobile Computers
Add to Quote
Datalogic 944300032 Mobile Computer
Datalogic 944300032 Mobile Computer
Datalogic 944300032 Mobile Computer
Datalogic 944300032 Mobile Computer Datalogic 944300032 Mobile Computer Datalogic 944300032 Mobile Computer
Full specifications (PDF)

Datalogic Elf Mobile Computer Model Overview

The Datalogic Elf packs unprecedented features into a compact form factor built for single handed use. Use of an accelerometer eliminates awkward presentation of on screen data and a unique guitar pick stylus provides for intuitive touch screen navigation. Getting a job done quickly has never been easier with a 624 MHz processor and 256 MB RAM. The Elf has a Micro SD card slot supporting SDHC storage cards provides for virtually unlimited storage space for photos taken with the onboard 3MP camera. The Elf features both a 1D laser scanner and 2D barcode imager enable a wide array of barcodes seen across diverse enterprises. Both have Datalogic's patented Green Spot good read technology to improve user efficiency and accuracy HF RFID readers available in combination with barcode readers complete the package. The Elf PDA provides four wireless technologies in the same form factor: Bluetooth EDR for fast data transfer, 802.11 a/b/g with Cisco Certified security, UMTS HSDPA for real-time communication outside the enterprise and GPS for location based applications and directions.
Datalogic 944300032 Mobile Computer Overview
Ergonomic, compact and robust Microsoft Windows Mobile 6.5 or CE 6.0 Assisted GPS (A-GPS) with Skyhook's Core Engine hybrid positioning system for location based applications and directions (WM 6.5 only) UMTS HSDPA mobile radio for voice and data communication (WM 6.5 only) Summit embedded 802.11 a/b/g radio for enterprise-class mobile connectivity with CCX V4 certification Bluetooth wireless Communications 2.0 EDR for simultaneous connections with lower power consumption High performance Laser or Wide aspect 2D imager both with Green Spot patented good read confirmation Accelerometer to auto-rotate display (WM 6.5 only) 3 Megapixel autofocus Camera with Flash (WM 6.5 only) 256 MB RAM / 256 MB Flash memory XScale PXA 310 624 MHz processor User-accessible micro SD memory slot (SDHC) Ruggedized with 1.5 m (5 ft) drop to concrete resistance and IP64 protection class Wavelink Avalanche device management
Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:
  • UPC A
  • UPC E
  • EAN 8
  • EAN 13
  • Interleaved 2of 5
  • Code 39
  • Code 39 Full ASCII
  • Codabar
  • Code 128
  • EAN 128
  • Code 93
  • MSI
  • PDF417
  • Micro PDF
  • DataMatrix
  • QR
  • GS1 Databar
  • Aztec
  • Maxicode
  • POSTNET
  • PLANET
  • Japan Post
  • Australia Post
  • KIX Code
  • Royal Mail RM4SCC
  • USPS 4CB
  • UPU FICS
Drop Specification (To Concrete):
60"
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale
Processor Speed:
624 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
256 MB
Memory Card Slot:
Yes
Memory Card Supported:
SDHC
Display & Graphics
Screen Resolution:
480 x 640
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Layout:
QWERTY
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g
Bluetooth:
Yes
Cellular Data Connectivity Technology:
  • HSDPA
  • UMTS
Software
Operating System:
Windows CE 6.0
Battery Information
Battery Capacity:
5000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
6.2"
Width:
3.2"
Depth:
1.7"
Weight (Approximate):
15.52 oz
Item Numbers
GTIN: 3609740142260
EAN: 3609740142260
UNSPSC: 43211715
