Datalogic Memor X3 – Mobile Computer

Part Number: 944250001
Model: Memor X3
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Batch
Image Sensor Type
Imager
Barcode Symbology Supported
1D:Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes2D:Aztec CodeData MatrixIntelligent MailMaxicodeQR CodeMicro QR CodeUPU FICSUSPS 4CBPostal Codes:Australian PostJapanese PostKIX PostPlanet CodePostnetRoyal Mail Code (RM4SCC)Stacked Codes:MicroPDF417PDF417
Drop Specification (To Concrete)
47.24"

Product Description:

  Batch Data Collector, Windows CE Core 6.0, Linear Imager with Green Spot, 128 MB RAM/512 MB Flash, 624 MHz, 25-key Numeric Keypad. Interface cables and charging cradle sold separately. Standard spare battery (Part# 94ACC0083). Quad slot charging cradle (Part# 94A151123) requires power supply (Part# 94ACC1324).
Explore all Datalogic Memor X3 Mobile Computers
Add to Quote
Datalogic 944250001 Mobile Computer
Datalogic 944250001 Mobile Computer
Datalogic 944250001 Mobile Computer
Datalogic 944250001 Mobile Computer
Datalogic 944250001 Mobile Computer Datalogic 944250001 Mobile Computer Datalogic 944250001 Mobile Computer Datalogic 944250001 Mobile Computer
Full specifications (PDF)

Datalogic Memor X3 Mobile Computer Model Overview

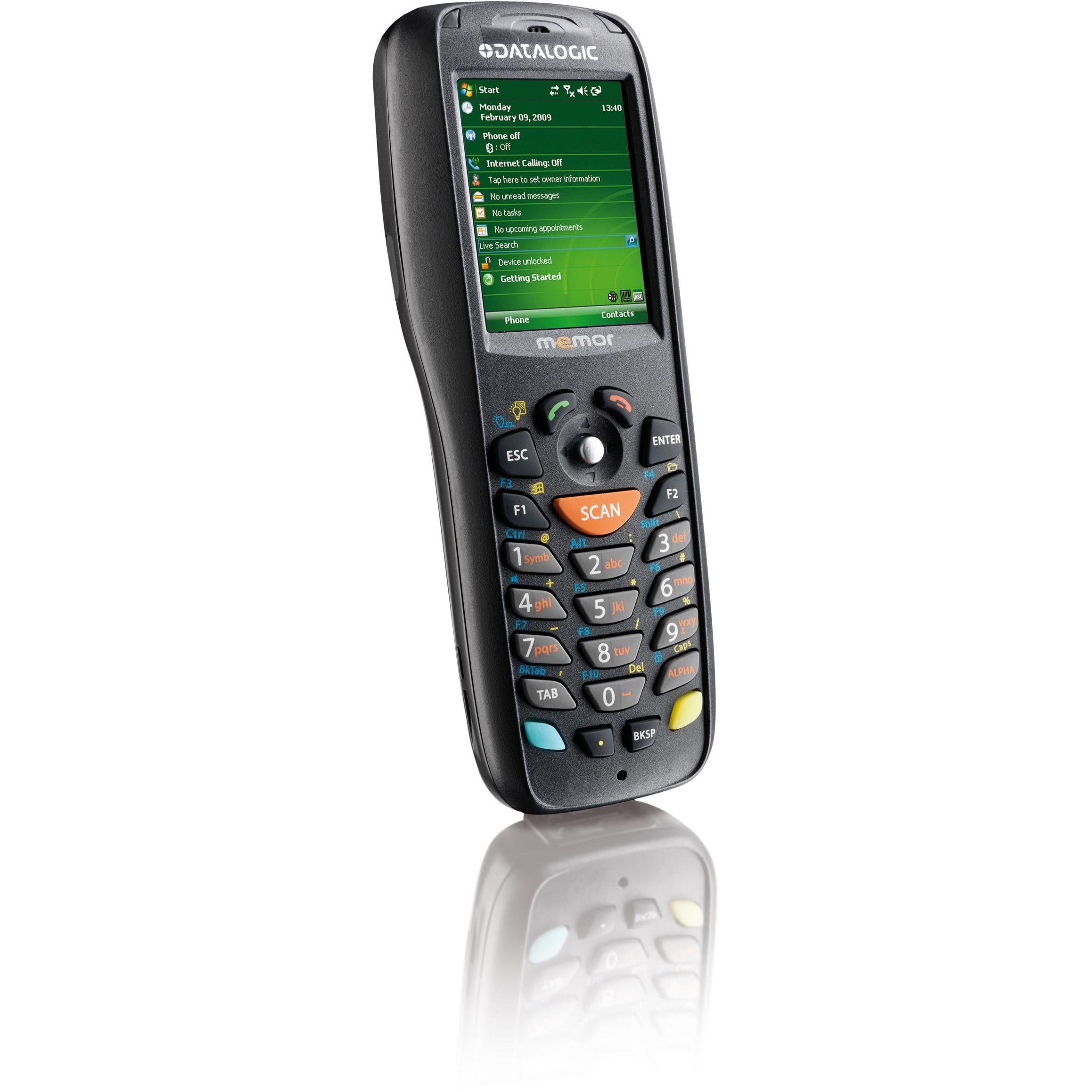

The Memor X3 mobile computer is the industry's most pocketable mobile computer. Besides significant improvements in speed and battery autonomy, the Memor X3 terminal features aggressive 1D and 2D scan capabilities. Laser models now feature Corning Gorilla Glass 2 scan windows guaranteeing optimum scanning performance by resisting scratching and damage of the scan window. Additionally, an area imager option will be available for reading 2D codes, particularly useful in pharmaceutical applications. All Memor scan engines feature Datalogic's patented 'Green Spot' good read technology.
Datalogic 944250001 Mobile Computer Overview

RUGGED ERGONOMICS

Small, slim and light, the Memor™ X3 mobile computer provides excellent ergonomics for single-handed use, and its rugged, sealed construction survives unintentional drops and exposure to water and dust. Laser models feature a Corning® Gorilla® Glass 2 scan window guaranteeing optimum scanning performance.

CAPTURE

For the capture of 1D/Linear codes, there is a choice of laser or linear imaging technologies. The laser model offers high-speed reading and a greater depth of field, while the linear imager offers high responsiveness in reading poorly printed or damaged codes. Additionally, an area imager option is available for the reading of 2D, linear and stacked codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Batch
Image Sensor Type:
Imager
Barcode Symbology Supported:
1D:
  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
2D:
  • Aztec Code
  • Data Matrix
  • Intelligent Mail
  • Maxicode
  • QR Code
  • Micro QR Code
  • UPU FICS
  • USPS 4CB
Postal Codes:
  • Australian Post
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:
  • MicroPDF417
  • PDF417
Drop Specification (To Concrete):
47.24"
Processor & Chipset
Processor Type:
XScale PXA310
Processor Speed:
806 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Memory Card Slot:
Yes
Memory Card Supported:
  • microSD
  • microSDHC
Display & Graphics
Screen Size:
2.4"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Interfaces/Ports
USB:
Yes
Serial:
Yes
Software
Operating System:
Windows Embedded CE 6.0 Core
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
6.1"
Width:
2.2"
Depth:
1.6"
Weight (Approximate):
8.20 oz
