Full specifications (PDF)
Connectivity Technology:
Wireless
Datalogic 943001008 Data Terminal
Part Number:
943001008
Model:
R Series

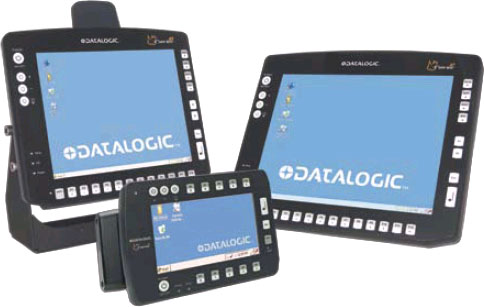

Datalogic R Series Data Terminal Model Overview
The Datalogic R Series increases productivity through reduced errors during receiving, put-away, picking and shipping activities. Addition of a hand held barcode scanner allows for quick data entry and location confirmations. The R Series vehicle mounted computers set the industry rugged standard. The aluminium outer case with fan less design withstands the vibration and shocks experienced onboard rigid suspension vehicles. Exclusive 2-tail touch screen technology and mounting endures direct display abuse. IP sealed to the maximum extent, R Series resists dust, rain and harsh cleaners. A heater option protects the R Series in freezing temperatures. Available in three different sizes, R Series fits different mounting and space constraints. Mounting options include support for the vehicle mounted computer, hand-held readers, ABCD or QWERTY external keyboards. A dedicated software keyboard with over 25 layouts (including 8 languages) adapts the R Series to a minimum footprint and global enterprises.
Datalogic 943001008 Data Terminal Overview
R Series is a Product line of rugged Vehicle Mounted Computers particularly tailored for Warehouse management, to deliver maximum productivity and reliability in the toughest environments.
Technical Information
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale
Processor Speed:
520 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Display & Graphics
Screen Size:
7"
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
480 x 234
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Interfaces/Ports
Serial:
Yes
USB:
Yes
Software
Operating System:
Windows CE 5.0
Physical Characteristics
Height:
9"
Width:
6.2"
Length:
3.3"
Weight (Approximate):
5.51 lb
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Computer Accessories (2)
- General Software (2)
- Miscellaneous (2)
- Mobile Computer Accessories (6)
- Spare Parts (4)
Recommended Accessories for Model: Datalogic 943001008 Data Terminal
Top Computer Accessories Purchased With Datalogic 943001008
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY Layout$655.45 -
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD Layout$655.45
Top General Software Purchased With Datalogic 943001008
-
Datalogic 94A101021 SoftwareSoftware, Datalogic Rhino, MCL Link V3, 1 Port$414.25 -
Datalogic 95A101119 SoftwareSoftware, Datalogic Joya Touch A6, Ivanti Wavelink Avelanche, Windows Industrial Browser, 1 License, WL # 120-LI-WIBST0, Requires Maintenance P/N ZSS5IBS01$97.05
Top Miscellaneous Purchased With Datalogic 943001008
-
Datalogic 95A101123 ProductsSoftware, Datalogic Joya Touch A6, Ivanti Wavelink Windows Speakeasy Voice Plugin for TE/WIB, 1 License, WL # 130-LI-VPTNAD, Requires Maintenance P/N ZSS5SPVP1$685.45 -
Datalogic ZSS5SPVP1 ProductsSoftware, Datalogic Joya Touch A6, Ivanti Wavelink Windows Speakeasy Voice Plugin for TE/WIB, 1 yr Maintenance, WL# 130-MA-VPTNAD$188.82
Top Mobile Computer Accessories Purchased With Datalogic 943001008
-
Datalogic 94ACC1351 Spare PartsPRECONVERTER 110/230 VAC FOR 24/48 VDC R SERIES VEH MOUNTD COMPS$292.62 -
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY Layout$655.45
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD Layout$655.45
Top Spare Parts Purchased With Datalogic 943001008
-
Datalogic 94ACC1351 Spare PartsPRECONVERTER 110/230 VAC FOR 24/48 VDC R SERIES VEH MOUNTD COMPS$292.62
-
Datalogic 95ACC1330 Spare PartsKeyboard, External, Blackline, Rhino, QWERTY Layout$655.45
-
Datalogic 95ACC1331 Spare PartsKeyboard, External, Blackline, Rhino, ABCD Layout$655.45
Questions? Get Help from
a Mobile Expert!
a Mobile Expert!
The Datalogic 943001008 Data Terminal is also known as
DTL-943001008
or 943001008.
