Full specifications (PDF)
Connectivity Technology:
Wireless
Datalogic 943001003 Data Terminal
Part Number:
943001003
Model:
R Series

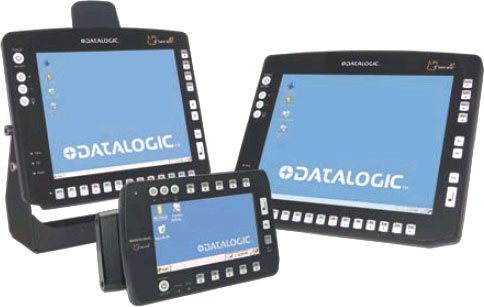

Datalogic R Series Data Terminal Model Overview
The Datalogic R Series increases productivity through reduced errors during receiving, put-away, picking and shipping activities. Addition of a hand held barcode scanner allows for quick data entry and location confirmations. The R Series vehicle mounted computers set the industry rugged standard. The aluminium outer case with fan less design withstands the vibration and shocks experienced onboard rigid suspension vehicles. Exclusive 2-tail touch screen technology and mounting endures direct display abuse. IP sealed to the maximum extent, R Series resists dust, rain and harsh cleaners. A heater option protects the R Series in freezing temperatures. Available in three different sizes, R Series fits different mounting and space constraints. Mounting options include support for the vehicle mounted computer, hand-held readers, ABCD or QWERTY external keyboards. A dedicated software keyboard with over 25 layouts (including 8 languages) adapts the R Series to a minimum footprint and global enterprises.
Datalogic 943001003 Data Terminal Overview
The R Series vehicle mounted computers set the industry rugged standard. The aluminium outer case with fan less design withstands the vibration and shocks experienced onboard rigid suspension vehicles. Exclusive 2-tail touch screen technology and mounting endures direct display abuse. IP sealed to the maximum extent, R Series resists dust, rain and harsh cleaners. A heater option protects the R Series in freezing temperatures.
Technical Information
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
520 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Display & Graphics
Screen Size:
10.4"
Display Screen Type:
LCD
Touchscreen:
Yes
Display Color:
Color
Display Resolution:
800 x 600
Network & Communication
Wireless LAN Standard:
IEEE 802.11b/g
Interfaces/Ports
Serial:
Yes
USB:
Yes
Software
Operating System:
Windows CE 5.0
Physical Characteristics
Weight (Approximate):
8.82 lb
Item Numbers
UNSPSC:
43211505
