You've just added this product to the cart:

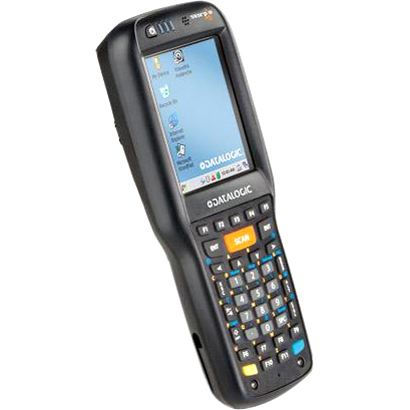

Datalogic 942400002 Mobile Handheld Computer

Datalogic Skorpio X3 - Wi-Fi (802.11a/b/g), Standard Range 1D Laser Scanner with Green Spot, Pistol Grip, Windows CE 6.0, 256MB RAM/512MB Flash, 50 key Alphanumeric Keypad, Bluetooth. Interface cables and charging cradle sold separately. Charging Cradles and Power supply Sold Separately. Single charging dock with power supply and cable (Part# 94A150062). Quad charging dock (Part# 94A150032) requires power supply (Part# 94ACC1385).
Ergonomic and Reliable for an Outstanding User Experience.

Whether in department or specialty stores, hyper or supermarkets, convenience stores, grocery or Do-it-Yourself stores, Datalogic's Skorpio X3 mobile computer fits most any retail in-store requirement for mobile data collection or validation. With the optional pistol grip, it is equipped for demanding back-end receiving and warehousing environments as well.

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-8 kV DC Air Discharge
    • +/-4 kV DC Contact Discharge
  • Drop Specification: 59.06"
  • Barcode Symbology Supported:
    • 1D:
    • UPC A
    • UPC E
    • EAN 8
    • EAN 13
    • Code 39
    • Code 39 Full ASCII
    • Code 32
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Matrix 2 of 5
    • Code 128
    • EAN 128
    • Codabar
    • MSI
    • Plessey
    • Code 93
    • Code 11

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Name: Skorpio Gun Handheld Terminal
  • Product Line: Skorpio Gun

Physical Characteristics

  • Height: 6.2"
  • Width: 3"
  • Length: 7.7"
  • Weight (Approximate): 1.23 lb

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • CompactFlash (CF) Card
    • miniSD Card

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale PXA270

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g

Battery Information

  • Battery Capacity: 3300 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Software

  • Operating System: Windows CE 6.0

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model Skorpio X3
Network Connectivity 802.11g, 802.11a, 802.11a/b/g, Bluetooth
Style Gun
Operating System Windows CE 6.0
RAM Memory 256 MB
Scanner Capability 1D
Keypad 50
Scanner Type Laser
Data Collection Type Wireless
