Datalogic Magellan 9400i Barcode Scanner Model Overview
The Magellan™ 9300i/9400i scanner/scale is a revolutionary barcode scanning solution designed for optimal performance and ease of use in retail environments. Its advanced digital imaging technology reads both 1D and 2D barcodes seamlessly, eliminating the need for item orientation. The ergonomic design, complete with large horizontal and vertical windows, ensures comfort for cashiers, whether seated or standing. With optional features like the Customer Service Scanner, retailers can engage customers in mobile commerce, significantly reducing transaction times and enhancing customer experience.
Key Features:
Full digital scanning for 1D and 2D codes, offering effective replacements for laser scanners.
Customer Service Scanner (CSS) for easy mobile coupon scanning.
All-Weighs Scale Platter which accommodates larger items for weighing.
ScaleSentry™ technology for loss prevention and monitoring.
Remote Management capabilities for easy integration with POS systems.
Specifications:
Decoding Capability: Supports various 1D, stacked, and 2D codes including GS1 DataBar™.
Electrical: AC input of 100-240 VAC; nominal power consumption of 12 Watts.
Environmental: Operating temperature from 10 to 40 °C; humidity 5-95%.
Physical Dimensions:
Depth (Below Counter): 10.2 cm
Height (Above Counter): 13.0 cm
Length options range from 35.6 cm to 50.8 cm depending on the model.
The Magellan 9300i/9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Innovative features and options such as ScaleSentry shrink monitoring/prevention technology, AllWeighs platters and the support of all major EAS systems make 9300i/9400i purpose-built to help retailers reduce shrink at the POS. ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic Magellan 9400i scanner read?
The Magellan 9400i reads both 1D and 2D barcodes seamlessly, including standard linear codes, GS1 DataBar formats, stacked codes like PDF417 and MicroPDF417, and 2D codes such as QR Code, Data Matrix, and Aztec Code. The scanner also supports optional Digimarc digital watermarks, making it versatile for modern retail environments. We offer this multi-format capability to handle diverse product labeling standards without requiring item reorientation.
Is the Magellan 9400i suitable for POS and self-checkout applications?
Yes, the Magellan 9400i is specifically designed for in-counter POS and self-checkout environments with its traditional bonnet height and large horizontal and vertical scanning windows. The scanner allows optimum positioning for touchscreens, payment terminals, and printers while maintaining ergonomic comfort for both seated and standing cashiers. Contact us today to discuss how this fixed-mount scanner integrates with your retail checkout infrastructure.
What are the power requirements for the Magellan 9400i?
The Magellan 9400i requires AC input power of 100-240 VAC, making it compatible with standard retail electrical installations worldwide. This universal voltage range ensures flexibility for deployment across different locations and regions. We can provide complete installation guidance when you contact us today.
Does the Magellan 9400i include a scale, and what connectivity options are available?
Yes, the Magellan 9400i is a scanner/scale combination unit designed for produce and retail weighing applications. This configuration includes a metric display, sapphire platter, and produce rail for accurate item measurement. The scanner connects via USB with the included POT cable for seamless integration with POS systems available from us.
What security and anti-fraud features does the Magellan 9400i offer?
The Magellan 9400i includes Scale Sentry and SmartSentry technologies to prevent unauthorized scale manipulation and fraud at the point of sale. These built-in security features help protect transaction integrity and reduce loss in retail environments. Visit barcodesinc.com to learn more about these anti-fraud capabilities and how they protect your checkout operations.

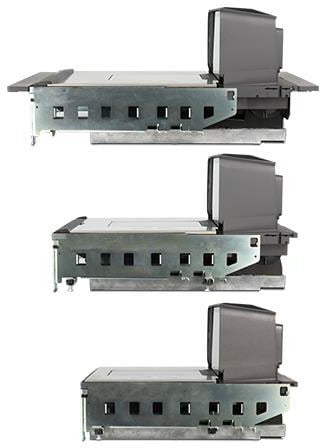

What mounting options are available for the Magellan 9400i?
The Magellan 9400i offers flexible mounting configurations including flange mount and fixed produce rail options, with Omni Mount compatibility for versatile counter integration. These mounting solutions accommodate various POS counter layouts and ergonomic requirements. Our team can help you select the right configuration for your retail setup—contact us today for detailed mounting specifications.
The Datalogic 9420450115-022253 Fixed Barcode Scanner is also known as
9420450115022253
Full specifications (PDF)
