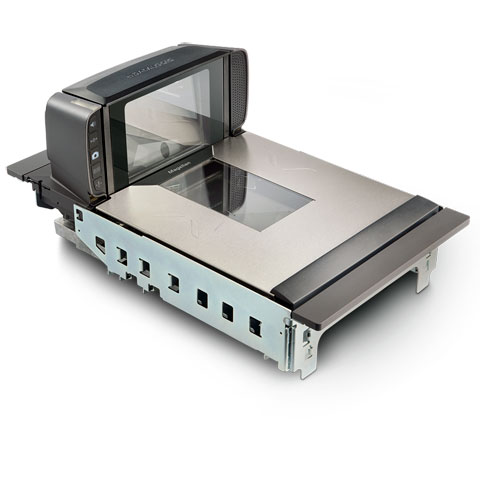

Datalogic Magellan 9400i Barcode Scanner Model Overview
The Magellan™ 9300i/9400i scanner/scale is a revolutionary barcode scanning solution designed for optimal performance and ease of use in retail environments. Its advanced digital imaging technology reads both 1D and 2D barcodes seamlessly, eliminating the need for item orientation. The ergonomic design, complete with large horizontal and vertical windows, ensures comfort for cashiers, whether seated or standing. With optional features like the Customer Service Scanner, retailers can engage customers in mobile commerce, significantly reducing transaction times and enhancing customer experience.
Key Features:
Full digital scanning for 1D and 2D codes, offering effective replacements for laser scanners.
Customer Service Scanner (CSS) for easy mobile coupon scanning.
All-Weighs Scale Platter which accommodates larger items for weighing.
ScaleSentry™ technology for loss prevention and monitoring.
Remote Management capabilities for easy integration with POS systems.
Specifications:
Decoding Capability: Supports various 1D, stacked, and 2D codes including GS1 DataBar™.
Electrical: AC input of 100-240 VAC; nominal power consumption of 12 Watts.
Environmental: Operating temperature from 10 to 40 °C; humidity 5-95%.
Physical Dimensions:
Depth (Below Counter): 10.2 cm
Height (Above Counter): 13.0 cm
Length options range from 35.6 cm to 50.8 cm depending on the model.
THE POWER OF IMAGING The Magellan™ 9300i/9400i scanner/ scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION Innovative features and options such as ScaleSentry™ shrink monitoring/ prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i/9400i purposebuilt to help retailers reduce shrink at the POS.
ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic Magellan 9400i scanner read?
The Magellan 9400i features digital imagers in all planes that seamlessly read both 1D and 2D barcodes, including QR codes, without requiring item orientation by the cashier. This multi-plane imaging capability makes it ideal for high-speed retail and grocery environments where scanning efficiency is critical.
Is the Datalogic Magellan 9400i suitable for POS and self-checkout applications?
Yes, the Magellan 9400i is specifically designed for POS and self-checkout environments with optimized bonnet height and large horizontal and vertical windows that allow proper positioning alongside touchscreens, payment terminals, and printers. The scanner maintains ergonomic comfort for both seated and standing cashiers while accommodating these integrated systems.
What connectivity options are available for the Magellan 9400i?
The Datalogic Magellan 9400i connects via RS-232 serial connection with a single cable included in the package. This wired connection ensures stable, continuous communication with POS systems and is compatible with legacy retail infrastructure.
Does the Magellan 9400i include a built-in scale?
Yes, the Magellan 9400i is a combined scanner/scale unit with an embedded scale designed for grocery and produce applications. It features a long sapphire glass platter and flange mount with fixed produce rail for secure produce weighing and pricing.
What are the mounting options for the Magellan 9400i scanner?
The Magellan 9400i comes with a flange mount and fixed produce rail configuration, allowing it to be securely installed in in-counter applications. This fixed-mount design is ideal for retail checkout counters and grocery POS stations where the scanner remains in a consistent position.
What makes the Magellan 9400i different from standard handheld barcode scanners?
Unlike handheld scanners, the Magellan 9400i is a fixed, in-counter scanner/scale system with high-performance digital imagers that read barcodes in any orientation without cashier intervention. It combines scanning, weighing, and ergonomic design into a single integrated checkout solution, making it ideal for high-volume retail environments.
The Datalogic 9420450042-020231 Barcode Scanner is also known as
DTL-9420450042020231
or 9420450042020231.
Full specifications (PDF)
