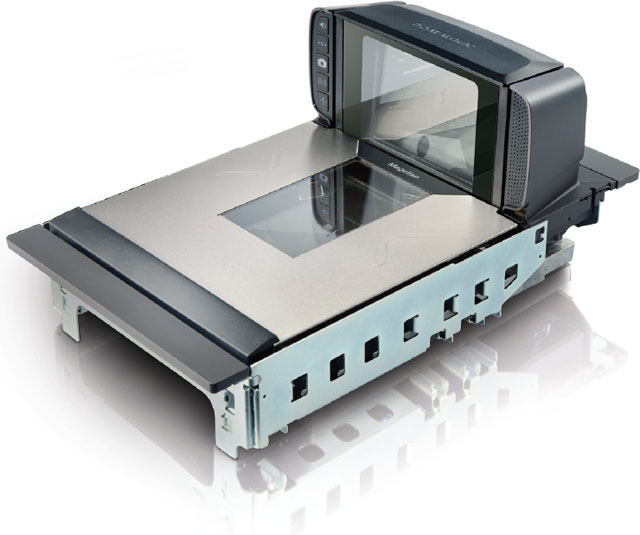

Datalogic Magellan 9400i Barcode Scanner Model Overview
The Magellan™ 9300i/9400i scanner/scale is a revolutionary barcode scanning solution designed for optimal performance and ease of use in retail environments. Its advanced digital imaging technology reads both 1D and 2D barcodes seamlessly, eliminating the need for item orientation. The ergonomic design, complete with large horizontal and vertical windows, ensures comfort for cashiers, whether seated or standing. With optional features like the Customer Service Scanner, retailers can engage customers in mobile commerce, significantly reducing transaction times and enhancing customer experience.
Key Features:
Full digital scanning for 1D and 2D codes, offering effective replacements for laser scanners.
Customer Service Scanner (CSS) for easy mobile coupon scanning.
All-Weighs Scale Platter which accommodates larger items for weighing.
ScaleSentry™ technology for loss prevention and monitoring.
Remote Management capabilities for easy integration with POS systems.
Specifications:
Decoding Capability: Supports various 1D, stacked, and 2D codes including GS1 DataBar™.
Electrical: AC input of 100-240 VAC; nominal power consumption of 12 Watts.
Environmental: Operating temperature from 10 to 40 °C; humidity 5-95%.
Physical Dimensions:
Depth (Below Counter): 10.2 cm
Height (Above Counter): 13.0 cm
Length options range from 35.6 cm to 50.8 cm depending on the model.
Width: 29.2 cm.
Warranty: 1-Year Factory Warranty.
Datalogic 9420150013 Barcode Scanner Overview
THE POWER OF IMAGING
The Magellan™ 9300i/9400i scanner/ scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.
With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Innovative features and options such as ScaleSentry™ shrink monitoring/ prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i/9400i purposebuilt to help retailers reduce shrink at the POS.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic Magellan 9400i scanner read?
The Magellan 9400i reads both 1D and 2D barcodes seamlessly, including all standard linear codes, GS1 DataBar formats, stacked codes like PDF417 and MicroPDF417, and 2D codes such as QR Code, Data Matrix, and Aztec Code. The scanner also supports optional Digimarc digital watermark decoding, making it highly versatile for retail and logistics environments.
Is the Magellan 9400i suitable for POS and self-checkout applications?
Yes, the Magellan 9400i is specifically designed as an in-counter scanner/scale for POS and self-checkout environments. Its traditional bonnet height and large horizontal and vertical windows allow optimum positioning for touchscreens, payment terminals, and printers while maintaining ergonomic comfort for both seated and standing cashiers.
Does the Magellan 9400i require specific item orientation for scanning?
No, the Magellan 9400i features digital imagers in all planes, which means it reads both 1D and 2D barcodes without requiring item orientation by the cashier. This multi-plane imaging capability improves scanning speed and reduces checkout friction.
What are the power requirements for the Datalogic Magellan 9400i?
The Magellan 9400i requires AC input of 100-240 VAC, making it compatible with standard electrical outlets in retail and warehouse environments worldwide. This universal voltage range ensures flexibility for deployment across different locations.
What special features does the Magellan 9400i include for scale functionality?
The Magellan 9400i comes with a long sapphire platter and fixed produce rail with flange mount, along with enhanced processing and Scale Sentry technology. These features are designed to provide accurate weighing for produce and other items while maintaining integration with the scanning function.
Is the Magellan 9400i still available for purchase?
The Magellan 9400i has been discontinued by the manufacturer. However, we may have remaining inventory or can help you find comparable current-generation alternatives. Contact us today to discuss your scanning and scale needs, and our team can recommend the best solution for your POS or self-checkout environment.
The Datalogic 9420150013 Barcode Scanner is also known as
9420150013
Full specifications (PDF)
