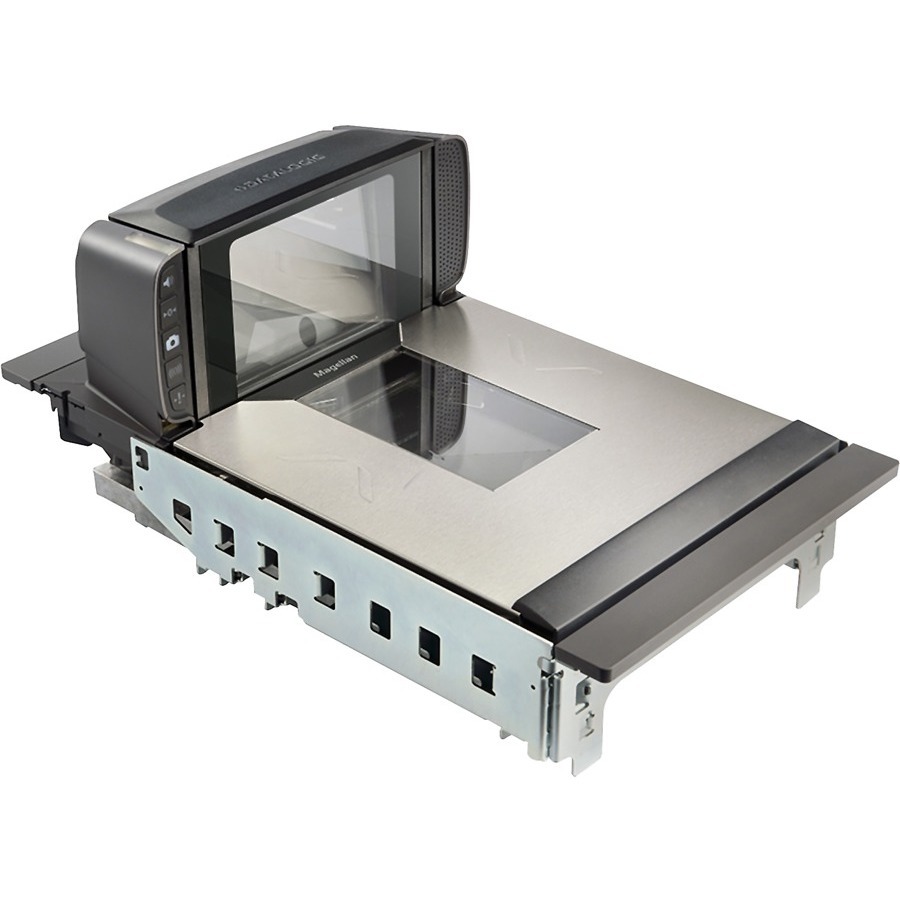

Datalogic Magellan 9400i – Barcode Scanner

Part Number: 9420150013-000254
Model: Magellan 9400i

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes STACKED CODES: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MicroPDF417 PDF417 UPC A/E Composites 2D CODES: Aztec Code Data Matrix QR Code Micro QR Code DIGITAL WATERMARKS: Optional support for Digimarc® Barcode (9400i series only)
Image Sensor Type
Imager

Product Description:

  Datalogic Magellan 9400i In-counter Barcode Scanner - Cable Connectivity - 1D, 2D - Imager

Datalogic Magellan 9400i Barcode Scanner Model Overview

The Magellan™ 9300i/9400i scanner/scale is a revolutionary barcode scanning solution designed for optimal performance and ease of use in retail environments. Its advanced digital imaging technology reads both 1D and 2D barcodes seamlessly, eliminating the need for item orientation. The ergonomic design, complete with large horizontal and vertical windows, ensures comfort for cashiers, whether seated or standing. With optional features like the Customer Service Scanner, retailers can engage customers in mobile commerce, significantly reducing transaction times and enhancing customer experience.

Key Features:
  • Full digital scanning for 1D and 2D codes, offering effective replacements for laser scanners.
  • Customer Service Scanner (CSS) for easy mobile coupon scanning.
  • All-Weighs Scale Platter which accommodates larger items for weighing.
  • ScaleSentry™ technology for loss prevention and monitoring.
  • Remote Management capabilities for easy integration with POS systems.


Specifications:
  • Decoding Capability: Supports various 1D, stacked, and 2D codes including GS1 DataBar™.
  • Electrical: AC input of 100-240 VAC; nominal power consumption of 12 Watts.
  • Environmental: Operating temperature from 10 to 40 °C; humidity 5-95%.
  • Physical Dimensions:
    • Depth (Below Counter): 10.2 cm
    • Height (Above Counter): 13.0 cm
    • Length options range from 35.6 cm to 50.8 cm depending on the model.
    • Width: 29.2 cm.
  • Warranty: 1-Year Factory Warranty.
Datalogic 9420150013-000254 Barcode Scanner Overview

THE POWER OF IMAGING

The Magellan™ 9300i/9400i scanner/ scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.

With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.

ENHANCING THE CUSTOMER EXPERIENCE

The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

LOSS PREVENTION

Innovative features and options such as ScaleSentry™ shrink monitoring/ prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9300i/9400i purposebuilt to help retailers reduce shrink at the POS.

ENTERPRISE FEATURES

Remote Management is supported for OPOS, JavaPOS, IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / LINEAR CODES:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes

STACKED CODES:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

2D CODES:

  • Aztec Code
  • Data Matrix
  • QR Code
  • Micro QR Code

DIGITAL WATERMARKS:

  • Optional support for Digimarc® Barcode (9400i series only)
Image Sensor Type:
Imager
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
In-counter
Height:
5.1"
Width:
11.5"
Depth:
15.8"
Miscellaneous
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
