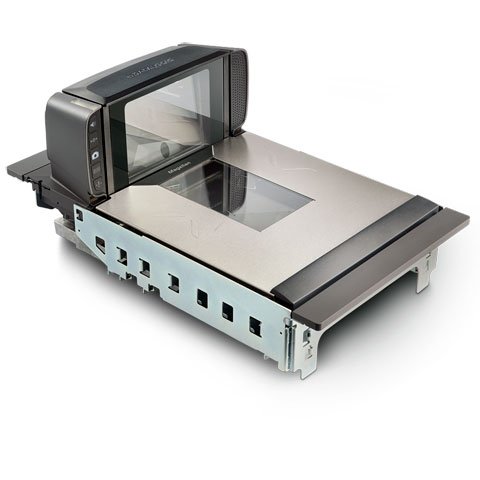

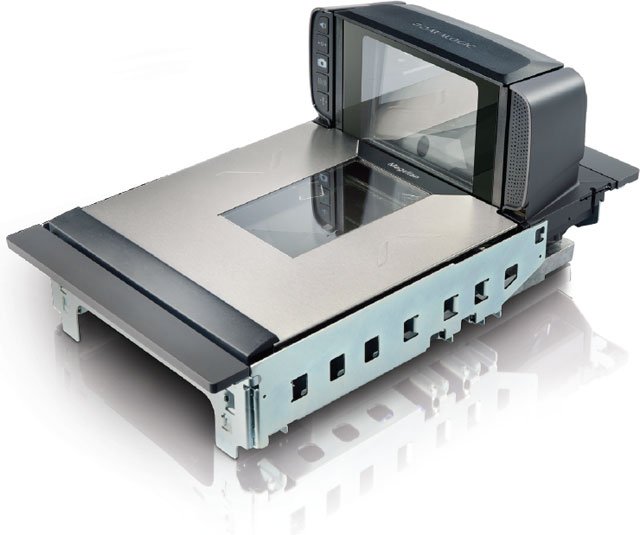

Datalogic Magellan 9400i Barcode Scanner Model Overview
The Magellan™ 9300i/9400i scanner/scale is a revolutionary barcode scanning solution designed for optimal performance and ease of use in retail environments. Its advanced digital imaging technology reads both 1D and 2D barcodes seamlessly, eliminating the need for item orientation. The ergonomic design, complete with large horizontal and vertical windows, ensures comfort for cashiers, whether seated or standing. With optional features like the Customer Service Scanner, retailers can engage customers in mobile commerce, significantly reducing transaction times and enhancing customer experience.
Key Features:
Full digital scanning for 1D and 2D codes, offering effective replacements for laser scanners.
Customer Service Scanner (CSS) for easy mobile coupon scanning.
All-Weighs Scale Platter which accommodates larger items for weighing.
ScaleSentry™ technology for loss prevention and monitoring.
Remote Management capabilities for easy integration with POS systems.
Specifications:
Decoding Capability: Supports various 1D, stacked, and 2D codes including GS1 DataBar™.
Electrical: AC input of 100-240 VAC; nominal power consumption of 12 Watts.
Environmental: Operating temperature from 10 to 40 °C; humidity 5-95%.
Physical Dimensions:
Depth (Below Counter): 10.2 cm
Height (Above Counter): 13.0 cm
Length options range from 35.6 cm to 50.8 cm depending on the model.
The Magellan 9300i/9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9300i/9400i scanner reads both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9300i/9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
LOSS PREVENTION
Innovative features and options such as ScaleSentry shrink monitoring/prevention technology, AllWeighs platters and the support of all major EAS systems make 9300i/9400i purpose-built to help retailers reduce shrink at the POS. ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types can the DataLogic Magellan 9400i scanner read?
The Magellan 9400i reads both 1D and 2D barcodes seamlessly, including all standard linear codes, GS1 DataBar codes, stacked codes like PDF417 and MicroPDF417, and 2D codes such as QR Code, Data Matrix, and Aztec Code. It also supports optional Digimarc digital watermark decoding, making it highly versatile for retail and POS environments.
Is the Magellan 9400i suitable for self-checkout and POS applications?
Yes, the Magellan 9400i is specifically designed for in-counter POS and self-checkout environments. Its traditional bonnet height and large horizontal and vertical windows allow optimum positioning for touchscreens, payment terminals, and printers while maintaining ergonomic comfort for both seated and standing cashiers.
What are the reading angle specifications for the Magellan 9400i?
The Magellan 9400i offers exceptional reading flexibility with a pitch of +/- 65°, roll (tilt) of 0-360°, and skew (yaw) of +/- 75°. This multi-plane digital imaging capability means cashiers don't need to orient items in any specific way for successful barcode reads.
What power requirements does the Magellan 9400i have?
The Magellan 9400i requires AC input of 100-240 VAC, 50-60 Hz, making it compatible with standard electrical outlets in most retail environments. Contact us today to discuss your specific installation requirements and ensure proper power configuration for your location.
What connectivity options are available on the Magellan 9400i?
The Magellan 9400i features RS-232 connectivity and includes a powered auxiliary RS-232 port for easy integration of additional handheld scanners. This multiple interface solution supports all popular host interfaces, allowing flexible integration into existing POS systems and retail networks.
How durable is the Magellan 9400i in retail environments?
The Magellan 9400i is built for retail durability with IP52 particulate and water sealing protection, and it operates reliably in ambient light conditions from 0 to 86,100 lux. It includes 25 kV ESD protection and operates across a temperature range of 10-40°C, making it suitable for standard retail floor conditions. Visit barcodesinc.com to explore our full range of retail scanning solutions.
The Datalogic 9420140015-000213 Fixed Barcode Scanner is also known as
9420140015000213
