Datalogic Matrix 320 Stationary – Barcode Scanner – Scanner Only
Full specifications (PDF)

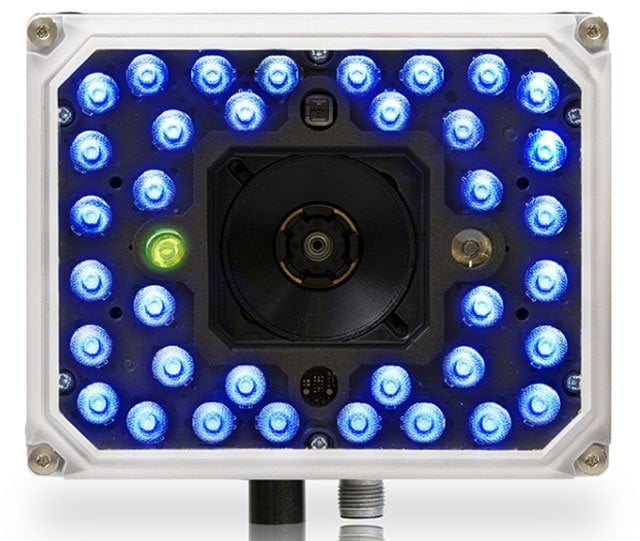

Datalogic Matrix 320 Barcode Scanner Model Overview
The MATRIX 320™ from Datalogic is a top-performing 2D image-based code reader designed to enhance traceability on the shop floor and in intralogistics. With its innovative 2MP sensor and extraordinary field of view, it outperforms traditional 3MP readers. This compact device streamlines operations across various applications, including manufacturing, retail, and logistics, enabling hands-free performance and efficient management. Its easy installation, flexible modular design, and advanced features like configurable multi-color lighting capture even the most challenging codes. The MATRIX 320 is a reliable solution, adapting effortlessly to meet the evolving demands of Industry 4.0.
Key Features
- Innovative 2MP sensor (1920 x 1080) for superior field of view.
- Smart configurable lighting with options for blue, red, and white illumination.
- Electronic focus adjustment for quick installation and reconfiguration.
- Modular design with diverse lenses, lighting, and accessory options.
- Real-time performance monitoring through a user-friendly web interface.
- Configurable visual feedback with 360-degree multicolor read confirmation.
Specifications
- Image Resolution: 2.0 MPixel (1920 x 1080), 16:9 form factor
- Sensor Type: 1/3” CMOS global shutter
- Power Supply: 24 Vdc ± 10%
- Protection Class: IP65 and IP67
- Operating Temperature: 0 to 45°C (32 to 113°F)
- Storage Temperature: -20 to 70°C (-4 to 158°F)
- Connectivity: Ethernet, Serial RS232/RS422, OPC UA
- Weight: 380 grams (13.4 oz)
Recommended Accessories
Category
- Cables, Connectors, and Adapters (4)
- Fixed Barcode Scanner Accessories (2)
- Scanner Accessories (15)
- Spare Parts (3)
- Vision Lens (2)
Recommended Accessories for Model: Datalogic 938100031 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Datalogic 938100031
-
Datalogic 93A050123 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 3 MetersItem on backorder — chat for lead time$160.00 -
Datalogic 93A050124 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 5 MetersItem on backorder — chat for lead time$130.38 -
Datalogic 93A050060 Cables, Connectors, and AdaptersCable, Datalogic Matrix 220, M12-IP67 TO CBX 5 MetersItem on backorder — chat for lead time$119.51
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 938100031
-
Datalogic 93A051390 AccessoryCable, Datalogic Automation, Power & Interface, P-Series to CBX (DB25), 10 MetersItem on backorder — chat for lead time$211.00 -
Datalogic 95A900052 AccessoryCables, Datalogic Matrix 410N, Isolated wires, 3 MetersItem on backorder — chat for lead time$43.90
Top Scanner Accessories Purchased With Datalogic 938100031
-
Datalogic 93A050058 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX, 1 MeterItem on backorder — chat for lead time$76.05 -
Datalogic 93A050122 AccessoryCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 1 MeterItem on backorder — chat for lead time$102.86 -
Datalogic 93A050059 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX 3 MetersItem on backorder — chat for lead time$114.11
Top Spare Parts Purchased With Datalogic 938100031
-
Datalogic 93ACC0273 Spare PartsCover, Datalogic P2x-Series, Polarizer LT 14L M320/P2Item on backorder — chat for lead time$202.27 -
$46.93 -
$80.88
Top Vision Lens Purchased With Datalogic 938100031
-
Datalogic 93ACC0280 Vision LensCover Lens and CM Base Long M320/P2Ships from vendor — chat for lead time$192.18 -
Datalogic 93ACC0279 Vision LensCover Lens and CM Base Short M320/P2Ships from vendor — chat for lead time$192.18
Frequently Asked Questions
What imaging technology does the Datalogic Matrix 320 use?
The Datalogic Matrix 320 features a superior 2MP image-based sensor with LED array lighting that delivers exceptional performance for traceability applications. This advanced imaging technology competes against 3MP readers while offering an extra-large field of view, making it ideal for both end users and machine builders seeking the best price-to-performance ratio.
What barcode symbologies can the Matrix 320 read?
The Matrix 320 reads a comprehensive range of 1D codes including Code 128, Code 39, EAN/UPC, and GS1 DataBar, as well as 2D codes such as DataMatrix, QR Code, Aztec, and Maxicode. It also supports postal codes like Royal Mail and Japan Post, making it versatile for diverse traceability and identification needs across industrial environments.
What connectivity options are available for the Matrix 320?
The Matrix 320 offers multiple connectivity modes including RS232, optocoupled RS422/RS485 up to 115.2 Kbit/s, and Ethernet (10 Base T and 100 BaseTx). It supports Pass Through, Master/Slave, Multiplexer, and network configurations, giving you flexibility to integrate it into your existing warehouse or manufacturing systems. Contact us today to discuss the right connectivity solution for your application.
Is the Matrix 320 suitable for fixed-mount industrial applications?
Yes, the Matrix 320 is specifically designed as a stationary, fixed-mount industrial scanner for demanding traceability applications. Its robust construction, programmable digital inputs and outputs, and advanced optical performance make it ideal for high-speed production lines and automated material handling environments. We offer the Matrix 320 with multiple SKU variants to match your specific mounting and configuration requirements.
How is the Matrix 320 programmed and configured?
The Matrix 320 uses Windows-based VisiSet™ software for programming and configuration via serial or Ethernet connection. The scanner includes diagnostic tools for exposure indication, code position and orientation analysis, and decoding time measurement, allowing your IT team to optimize performance for your specific application. Visit barcodesinc.com for technical documentation and setup support.
What reading angles and orientations does the Matrix 320 support?
The Matrix 320 supports a maximum pitch of ±35° and full 360° tilt capability, with direct or 90° reading window options available. This flexible orientation support ensures reliable barcode capture even in challenging mounting positions or when codes are presented at various angles on your production line.
