Datalogic Matrix 320 Stationary – Barcode Scanner – Scanner Only
Full specifications (PDF)
Datalogic Matrix 320 Barcode Scanner Model Overview

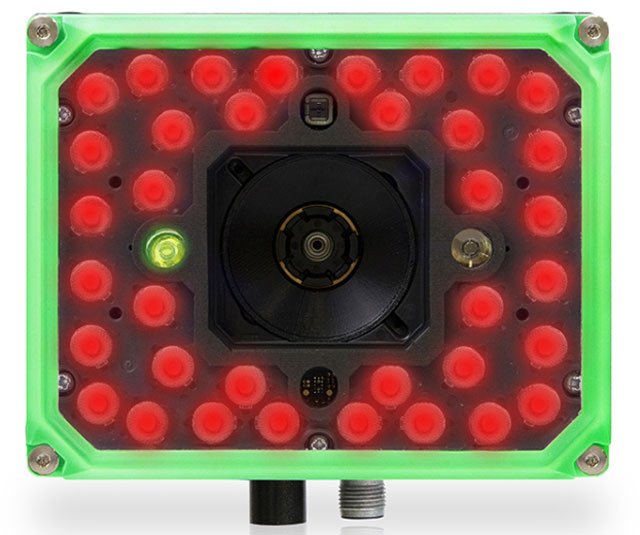

The MATRIX 320™ from Datalogic is a top-performing 2D image-based code reader designed to enhance traceability on the shop floor and in intralogistics. With its innovative 2MP sensor and extraordinary field of view, it outperforms traditional 3MP readers. This compact device streamlines operations across various applications, including manufacturing, retail, and logistics, enabling hands-free performance and efficient management. Its easy installation, flexible modular design, and advanced features like configurable multi-color lighting capture even the most challenging codes. The MATRIX 320 is a reliable solution, adapting effortlessly to meet the evolving demands of Industry 4.0.
Key Features
- Innovative 2MP sensor (1920 x 1080) for superior field of view.
- Smart configurable lighting with options for blue, red, and white illumination.
- Electronic focus adjustment for quick installation and reconfiguration.
- Modular design with diverse lenses, lighting, and accessory options.
- Real-time performance monitoring through a user-friendly web interface.
- Configurable visual feedback with 360-degree multicolor read confirmation.
Specifications
- Image Resolution: 2.0 MPixel (1920 x 1080), 16:9 form factor
- Sensor Type: 1/3” CMOS global shutter
- Power Supply: 24 Vdc ± 10%
- Protection Class: IP65 and IP67
- Operating Temperature: 0 to 45°C (32 to 113°F)
- Storage Temperature: -20 to 70°C (-4 to 158°F)
- Connectivity: Ethernet, Serial RS232/RS422, OPC UA
- Weight: 380 grams (13.4 oz)
Recommended Accessories
Category
- Cables, Connectors, and Adapters (4)
- Fixed Barcode Scanner Accessories (2)
- Scanner Accessories (15)
- Spare Parts (3)
- Vision Lens (2)
Recommended Accessories for Model: Datalogic 938100029 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Datalogic 938100029
-
Datalogic 93A050123 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 3 MetersItem on backorder — chat for lead time$160.00 -
Datalogic 93A050124 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 5 MetersItem on backorder — chat for lead time$130.38 -
Datalogic 93A050060 Cables, Connectors, and AdaptersCable, Datalogic Matrix 220, M12-IP67 TO CBX 5 MetersItem on backorder — chat for lead time$119.51
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 938100029
-
Datalogic 93A051390 AccessoryCable, Datalogic Automation, Power & Interface, P-Series to CBX (DB25), 10 MetersItem on backorder — chat for lead time$211.00 -
Datalogic 95A900052 AccessoryCables, Datalogic Matrix 410N, Isolated wires, 3 MetersItem on backorder — chat for lead time$43.90
Top Scanner Accessories Purchased With Datalogic 938100029
-
Datalogic 93A050058 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX, 1 MeterItem on backorder — chat for lead time$76.05 -
Datalogic 93A050122 AccessoryCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 1 MeterItem on backorder — chat for lead time$102.86 -
Datalogic 93A050059 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX 3 MetersItem on backorder — chat for lead time$114.11
Top Spare Parts Purchased With Datalogic 938100029
-
Datalogic 93ACC0273 Spare PartsCover, Datalogic P2x-Series, Polarizer LT 14L M320/P2Item on backorder — chat for lead time$202.27 -
$46.93 -
$80.88
Top Vision Lens Purchased With Datalogic 938100029
-
Datalogic 93ACC0280 Vision LensCover Lens and CM Base Long M320/P2Ships from vendor — chat for lead time$192.18 -
Datalogic 93ACC0279 Vision LensCover Lens and CM Base Short M320/P2Ships from vendor — chat for lead time$192.18
Frequently Asked Questions
What barcode symbologies can the Datalogic Matrix 320 read?
The Datalogic Matrix 320 reads a comprehensive range of 1D, 2D, and postal codes including I2/5, Code 128, Code 39, EAN/UPC, PDF417, DataMatrix, QR Code, Aztec, and many others. This versatility makes it ideal for diverse traceability applications across warehousing and manufacturing environments. We offer the Matrix 320 with full technical support to help you verify compatibility with your specific barcode formats.
What are the key optical specifications of the Matrix 320 image-based scanner?
The Matrix 320 features a superior 2MP CMOS sensor with 1280 x 1024 resolution and an extra-large Field of View that competes against 3MP readers at a better price-performance ratio. It delivers up to 16 frames per second and supports direct or 90-degree reading angles with maximum pitch tolerance of ±35°. This advanced imaging capability enables reliable code reading even in challenging industrial conditions.
How does the Matrix 320 connect to warehouse management systems?
The Matrix 320 offers multiple connectivity options including RS232, optocoupled RS232/RS422/RS485 (up to 115.2 Kbit/s), and Ethernet IEEE 802.3 10/100 Base-T. It supports various connectivity modes such as Pass Through, Master/Slave, Multiplexer, and point-to-point or network Ethernet configurations. Contact us today to discuss integration with your existing WMS infrastructure.
What programming and diagnostic capabilities does the Matrix 320 provide?
The Matrix 320 is programmed via Windows-based VisiSet software accessible through serial or Ethernet connections, making configuration straightforward for IT teams. Diagnostic tools include Exposure Indication, Code Position and Orientation analysis, and Decoding Time monitoring to optimize scanner performance. We provide full technical guidance to help you maximize these capabilities for your traceability applications.
Is the Matrix 320 suitable for fixed-mount industrial applications?
Yes, the Datalogic Matrix 320 is specifically designed as a stationary industrial scanner for fixed-mount traceability applications in manufacturing and logistics environments. Its robust construction, LED array lighting, and wide field of view make it ideal for high-volume, continuous scanning operations on production lines and conveyor systems. Visit barcodesinc.com to explore mounting options and installation support.
What quality assurance standards does the Matrix 320 support for code verification?
The Matrix 320 supports AS9132A (Data Matrix Quality Requirements for Parts Marking) and ISO/IEC 15415/15416 standards for comprehensive print quality testing and verification of 2D codes. This ensures your scanned data meets industry compliance requirements for aerospace, automotive, and regulated manufacturing sectors. Our team can help you configure verification parameters to match your quality standards.
