Datalogic Matrix 320 – Barcode Scanner
Full specifications (PDF)

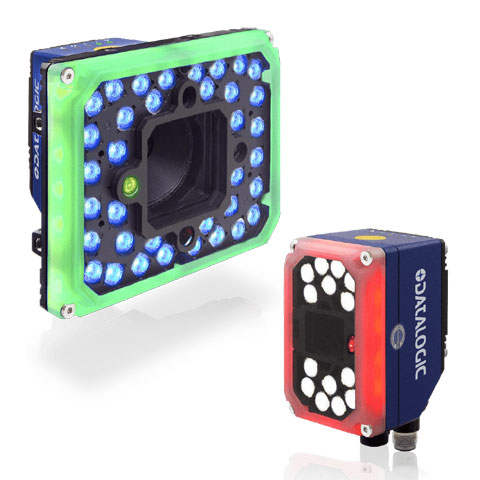

Datalogic Matrix 320 Barcode Scanner Model Overview
The MATRIX 320™ from Datalogic is a top-performing 2D image-based code reader designed to enhance traceability on the shop floor and in intralogistics. With its innovative 2MP sensor and extraordinary field of view, it outperforms traditional 3MP readers. This compact device streamlines operations across various applications, including manufacturing, retail, and logistics, enabling hands-free performance and efficient management. Its easy installation, flexible modular design, and advanced features like configurable multi-color lighting capture even the most challenging codes. The MATRIX 320 is a reliable solution, adapting effortlessly to meet the evolving demands of Industry 4.0.
Key Features
- Innovative 2MP sensor (1920 x 1080) for superior field of view.
- Smart configurable lighting with options for blue, red, and white illumination.
- Electronic focus adjustment for quick installation and reconfiguration.
- Modular design with diverse lenses, lighting, and accessory options.
- Real-time performance monitoring through a user-friendly web interface.
- Configurable visual feedback with 360-degree multicolor read confirmation.
Specifications
- Image Resolution: 2.0 MPixel (1920 x 1080), 16:9 form factor
- Sensor Type: 1/3” CMOS global shutter
- Power Supply: 24 Vdc ± 10%
- Protection Class: IP65 and IP67
- Operating Temperature: 0 to 45°C (32 to 113°F)
- Storage Temperature: -20 to 70°C (-4 to 158°F)
- Connectivity: Ethernet, Serial RS232/RS422, OPC UA
- Weight: 380 grams (13.4 oz)
Recommended Accessories
Category
- Cables, Connectors, and Adapters (4)
- Fixed Barcode Scanner Accessories (2)
- Scanner Accessories (15)
- Spare Parts (3)
- Vision Lens (2)
Recommended Accessories for Model: Datalogic 938100019 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Datalogic 938100019
-
Datalogic 93A050123 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 3 MetersItem on backorder — chat for lead time$160.00 -
Datalogic 93A050124 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 5 MetersItem on backorder — chat for lead time$130.38 -
Datalogic 93A050060 Cables, Connectors, and AdaptersCable, Datalogic Matrix 220, M12-IP67 TO CBX 5 MetersItem on backorder — chat for lead time$119.51
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 938100019
-
Datalogic 93A051390 AccessoryCable, Datalogic Automation, Power & Interface, P-Series to CBX (DB25), 10 MetersItem on backorder — chat for lead time$211.00 -
Datalogic 95A900052 AccessoryCables, Datalogic Matrix 410N, Isolated wires, 3 MetersItem on backorder — chat for lead time$43.90
Top Scanner Accessories Purchased With Datalogic 938100019
-
Datalogic 93A050058 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX, 1 MeterItem on backorder — chat for lead time$76.05 -
Datalogic 93A050122 AccessoryCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 1 MeterItem on backorder — chat for lead time$102.86 -
Datalogic 93A050059 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX 3 MetersItem on backorder — chat for lead time$114.11
Top Spare Parts Purchased With Datalogic 938100019
-
Datalogic 93ACC0273 Spare PartsCover, Datalogic P2x-Series, Polarizer LT 14L M320/P2Item on backorder — chat for lead time$202.27 -
$46.93 -
$80.88
Top Vision Lens Purchased With Datalogic 938100019
-
Datalogic 93ACC0280 Vision LensCover Lens and CM Base Long M320/P2Ships from vendor — chat for lead time$192.18 -
Datalogic 93ACC0279 Vision LensCover Lens and CM Base Short M320/P2Ships from vendor — chat for lead time$192.18
Frequently Asked Questions
What sensor and imaging specifications does the Datalogic Matrix 320 have?
The Datalogic Matrix 320 features a superior 2MP sensor with 1920 × 1080 pixels and a 16:9 form factor, delivering an extra large Field of View (FOV) on the horizontal axis that competes against 3MP readers. This configuration achieves excellent reading performance on both label and high-resolution DPM (Direct Part Marking) applications.
What lighting options are available on the Matrix 320 barcode scanner?
The Matrix 320 is equipped with powerful Smart configurable lighting available in three color options, designed to solve extremely challenging traceability applications. The scanner also provides a configurable 360-degree multicolor read-feedback and Green/Red Spot technology for outstanding visual feedback during operation.
Is the Datalogic Matrix 320 modular and customizable?
Yes, the Matrix 320 provides the highest market application flexibility with a modular design and a complete portfolio of lenses, lightings, filters, and accessories. It features embedded electronic focus that dramatically reduces installation time and allows easy reconfiguration to improve production flexibility in line with Industry 4.0 requirements.
What connectivity options does the Matrix 320 offer?
The Matrix 320 provides full industrial connectivity with rotating connectors that allow it to easily fit into every industrial environment. The scanner is designed with a compact body and top industrial-grade construction, making installation and integration straightforward for warehouse and logistics operations.
What are the key performance advantages of the Matrix 320 for hands-free operations?
The Matrix 320 delivers snappy reactivity and outstanding Depth of Field (DOF) to boost productivity in Intralogistics and Logistics segments during hands-free operations. Its best-in-class price/performance ratio combined with superior imaging capabilities makes it ideal for high-throughput traceability applications.
How easy is the Matrix 320 to install and configure?
The Matrix 320 is very easy to install with its improved integrated aiming system, X-Press button HMI, and DL.Code software powered by easy and intuitive autolearning/autosetup features. The embedded electronic focus and configurable design minimize installation time while allowing quick reconfiguration as operational needs change.
