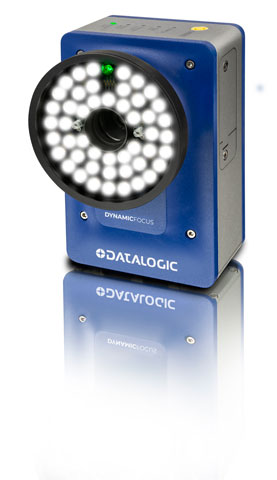

Datalogic AV500 – Barcode Scanner

The AV500™M is a high-performance 2D image-based reader designed for logistics and industrial applications. With its advanced 5 MP sensor and the ability to capture images at 32 frames per second, this reader sets a new standard for fast and reliable data capture. The dynamic focus and multiple lens options improve accuracy, making it ideal for automated and manual sorting tasks, baggage handling systems, and more. Built to endure the rigors of harsh environments, the rugged IP65-rated enclosure and optimal cooling system ensure long-lasting performance and reliability in challenging industrial settings.

• 5 MP image sensor with 32 FPS image acquisition
• Dynamic or adjustable focus for extended depth of field
• No-flashing illumination with integrated red or white light
• PackTrack capability for maximizing system productivity
• Gigabit Ethernet and SyncNet connectivity for easy integration
• Extreme industrial grade: IP65 rated for tough environments

• Optical Features:
  • Sensor Type: CMOS, 5 MPixels
  • Frame Rate: Up to 32 frames/sec
  • Lens: 16 mm, 25 mm, 35 mm C-Mount options
  • Illumination: Integrated Red or White
• Decoding Capability:
  • Supports 1D, 2D, Stacked, and Postal Codes
• System:
  • Memory: System RAM 8 GB; eMMC Flash 32 GB
  • Microprocessor: Intel Pentium Quad-core
  • Operating System: Linux
• Physical Characteristics:
  • Dimensions: 20.0 x 12.6 x 13.0 cm / 7.8 x 4.9 x 5.1 in
  • Weight: 2,900 g / 6.4 pounds
  • Chassis Material: A380 Die Cast Aluminum
• Operating Temperature: 0 to 50 °C / 32 to 122 °F
