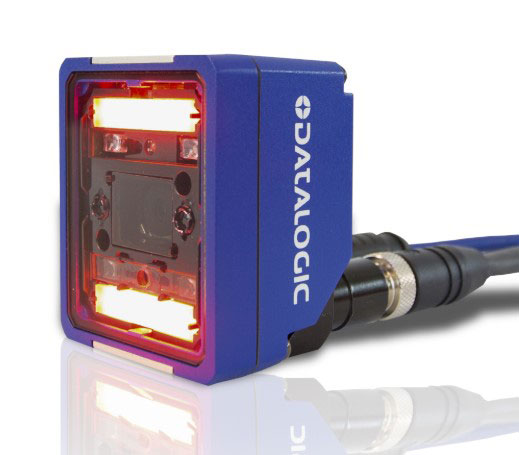

Datalogic Matrix 220 – Barcode Scanner – Scanner Only
Full specifications (PDF)
DataLogic Matrix 220 Fixed Barcode Scanner Model Overview
The MATRIX 220™ by Datalogic is the most compact, high-performance image-based barcode reader, specifically engineered for versatile applications across Electronics, Automotive, Packaging, and Document Handling industries. Featuring a 1.2 MPixel high-resolution sensor and advanced multicore processing platform, this imager excels in reading Direct Part Marking (DPM) barcodes with its innovative lighting solutions. Its polarized and diffused light options ensure optimal illumination on various surfaces. With its Industry 4.0 compliant OPC UA protocol and cost-effective communication options like Power over Ethernet, the MATRIX 220 is an exceptional solution that combines performance, reliability, and robust design to enhance operational efficiency.
Key Features
- Ultra-compact dimensions for easy installation in tight spaces.
- High Dynamic Range (HDR) imaging for improved image quality and contrast.
- Multicore image processing for high speed and excellent decoding capabilities.
- Embedded Digimarc Barcode technology for advanced decoding applications.
- IP65 and IP67 ratings for robust protection in harsh environments.
- Easy integration and intuitive user interface with green and red spot lights.
Specifications
- Dimensions: 78mm x 47mm x 38mm (3.07 x 1.85 x 1.50 in)
- Weight: 173 gr (6.1 oz)
- Operating Temperature: -10 to 50 °C / 14 to 122 °F
- Protection Class: IP65, IP67
- Sensor: 1.2 MPixel (1280 x 960), 45 frames/s
- Connectivity: Power over Ethernet, PROFINET, Ethernet/IP
- Reading Range: Minimum 40 mm, Maximum 600 mm (depending on model)
Recommended Accessories
Category
- Cables, Connectors, and Adapters (3)
- Fixed Barcode Scanner Accessories (1)
- Scanner Accessories (14)
Recommended Accessories for Model: Datalogic 937900034 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Datalogic 937900034
-
Datalogic 93A050123 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 3 MetersItem on backorder — chat for lead time$210.53 -
Datalogic 93A050124 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 5 MetersItem on backorder — chat for lead time$144.00 -
Datalogic 93A050060 Cables, Connectors, and AdaptersCable, Datalogic Matrix 220, M12-IP67 TO CBX 5 MetersItem on backorder — chat for lead time$132.00
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 937900034
-
Datalogic 95A900052 AccessoryCables, Datalogic Matrix 410N, Isolated wires, 3 MetersItem on backorder — chat for lead time$52.00
Top Scanner Accessories Purchased With Datalogic 937900034
-
Datalogic 93A050058 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX, 1 MeterItem on backorder — chat for lead time$84.00 -
Datalogic 93A050129 AccessoryCable, Datalogic Matrix 320, Ethernet, GETH-X to ETH-DItem on backorder — chat for lead time$120.00 -
Datalogic 93A050122 AccessoryCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 1 MeterItem on backorder — chat for lead time$109.00
Frequently Asked Questions
What makes the Datalogic Matrix 220 ideal for direct part marking (DPM) applications?
The Matrix 220 features innovative flexible illumination solutions with both polarized and diffused light options, making it perfect for reading barcodes marked with DPM. The combination of white and red light models allows optimal illumination on any type of surface, ensuring reliable reads on challenging direct part marked codes in warehouse and manufacturing environments.
What are the reading range specifications for the Datalogic Matrix 220?
The Matrix 220 offers reading ranges from 40mm minimum to 400mm maximum with the 7mm lens, or up to 600mm with the 12mm lens for standard models. For DPM-specific models, the maximum reading range is 300mm, with DPM-R HP models extending to 400mm, providing flexibility for various mounting distances.
Is the Datalogic Matrix 220 suitable for harsh warehouse and manufacturing environments?
Yes, the Matrix 220 is designed for demanding industrial applications with IP65 and IP67 protection ratings, operating temperatures from -10 to 50°C, and optional ESD and YAG laser protection accessories. Its aluminum case and sulfur gas resistance make it ideal for warehouse and manufacturing environments where durability is critical.
What connectivity options are available for the Matrix 220 scanner?
The Matrix 220 supports multiple industrial fieldbus connectivity options including PROFINET/IO and ETHERNET/IP, along with standard network connectivity. Power options include 10-30 VDC for standard models or 48 VDC for PoE models, with maximum power consumption of 4.2W or 4.8W respectively.
What is the sensor specification and image processing capability of the Matrix 220?
The Matrix 220 features a 1.2 megapixel (1280 x 960) CMOS global shutter sensor with a 45 frames/second frame rate and a multicore image processing platform. This high-resolution imaging combined with advanced processing delivers superior performance for reading various barcode types and challenging applications.
Can the Datalogic Matrix 220 be easily reconfigured for different assembly line setups?
Yes, the Matrix 220 includes electronic focus control that allows easy remote job changing during assembly line reconfiguration without physical adjustment. The intuitive HMI and DL.CODE configuration software with Automatic Setup mode enable quick and simple code reading setup, minimizing downtime when switching applications.
