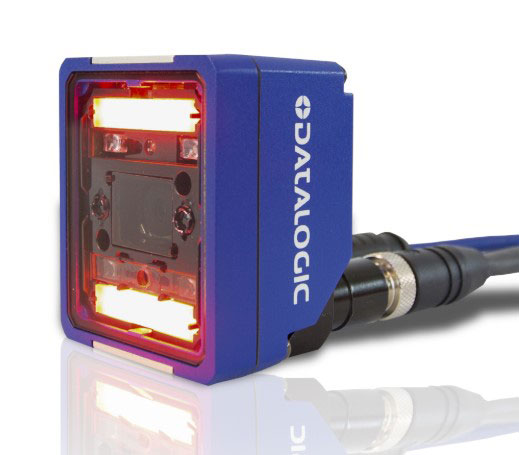

Datalogic Matrix 220 – Barcode Scanner – Scanner Only
Full specifications (PDF)
DataLogic Matrix 220 Fixed Barcode Scanner Model Overview
The MATRIX 220™ by Datalogic is the most compact, high-performance image-based barcode reader, specifically engineered for versatile applications across Electronics, Automotive, Packaging, and Document Handling industries. Featuring a 1.2 MPixel high-resolution sensor and advanced multicore processing platform, this imager excels in reading Direct Part Marking (DPM) barcodes with its innovative lighting solutions. Its polarized and diffused light options ensure optimal illumination on various surfaces. With its Industry 4.0 compliant OPC UA protocol and cost-effective communication options like Power over Ethernet, the MATRIX 220 is an exceptional solution that combines performance, reliability, and robust design to enhance operational efficiency.
Key Features
- Ultra-compact dimensions for easy installation in tight spaces.
- High Dynamic Range (HDR) imaging for improved image quality and contrast.
- Multicore image processing for high speed and excellent decoding capabilities.
- Embedded Digimarc Barcode technology for advanced decoding applications.
- IP65 and IP67 ratings for robust protection in harsh environments.
- Easy integration and intuitive user interface with green and red spot lights.
Specifications
- Dimensions: 78mm x 47mm x 38mm (3.07 x 1.85 x 1.50 in)
- Weight: 173 gr (6.1 oz)
- Operating Temperature: -10 to 50 °C / 14 to 122 °F
- Protection Class: IP65, IP67
- Sensor: 1.2 MPixel (1280 x 960), 45 frames/s
- Connectivity: Power over Ethernet, PROFINET, Ethernet/IP
- Reading Range: Minimum 40 mm, Maximum 600 mm (depending on model)
Recommended Accessories
Category
- Cables, Connectors, and Adapters (3)
- Fixed Barcode Scanner Accessories (1)
- Scanner Accessories (14)
Recommended Accessories for Model: Datalogic 937900009 Barcode Scanner
Top Cables, Connectors, and Adapters Purchased With Datalogic 937900009
-
Datalogic 93A050123 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 3 MetersItem on backorder — chat for lead time$210.53 -
Datalogic 93A050124 Cables, Connectors, and AdaptersCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 5 MetersItem on backorder — chat for lead time$144.00 -
Datalogic 93A050060 Cables, Connectors, and AdaptersCable, Datalogic Matrix 220, M12-IP67 TO CBX 5 MetersItem on backorder — chat for lead time$132.00
Top Fixed Barcode Scanner Accessories Purchased With Datalogic 937900009
-
Datalogic 95A900052 AccessoryCables, Datalogic Matrix 410N, Isolated wires, 3 MetersItem on backorder — chat for lead time$52.00
Top Scanner Accessories Purchased With Datalogic 937900009
-
Datalogic 93A050058 AccessoryCable, Datalogic Matrix 220, M12-IP67 TO CBX, 1 MeterItem on backorder — chat for lead time$84.00 -
Datalogic 93A050129 AccessoryCable, Datalogic Matrix 320, Ethernet, GETH-X to ETH-DItem on backorder — chat for lead time$120.00 -
Datalogic 93A050122 AccessoryCable, Datalogic Matrix 320, Ethernet M12-IP67, GETH-X Cable, 1 MeterItem on backorder — chat for lead time$109.00
Frequently Asked Questions
What makes the Datalogic Matrix 220 ideal for direct part marking (DPM) applications?
The Matrix 220 features innovative lighting solutions with an integrated flexible illumination system specifically designed for DPM reading. It offers both polarized and diffused light options in a single model, with white and red light variants that deliver optimal illumination on any surface type. This makes it perfect for reading barcodes marked directly on parts in automotive, electronics, and packaging applications.
What are the key technical specifications of the Datalogic Matrix 220 imager?
The Matrix 220 features a 1.2 megapixel (1280 x 960) CMOS global shutter sensor with 45 frames per second capture rate and electronic focus control. It comes in two optical models with 7mm (38.3° viewing angle) or 12mm (24.1° viewing angle) lenses, offering reading ranges from 40mm minimum to 400-600mm maximum depending on the model. The scanner measures just 78mm x 47mm x 38mm and weighs 173 grams, making it the most compact image-based barcode reader available.
Is the Datalogic Matrix 220 suitable for warehouse and manufacturing environments?
Yes, the Matrix 220 is specifically designed for warehouse and manufacturing applications with robust environmental protection. It features IP65/IP67 protection rating, operates reliably in temperatures from -10°C to 50°C, and includes optional ESD and YAG laser protection accessories. The scanner's multicore image processing platform and flexible illumination system make it ideal for high-performance industrial environments.
What connectivity and power options does the Matrix 220 offer?
The Matrix 220 supports multiple connectivity options including onboard PROFINET/IO and ETHERNET/IP industrial fieldbus protocols. Power supply options include standard 10-30 VDC models (4.2W max consumption) or PoE models operating at 48 VDC (4.8W max consumption), giving you flexibility to integrate into your existing infrastructure. Contact us today to find the right configuration for your facility.
Can the Datalogic Matrix 220 be easily reconfigured for different assembly line applications?
Yes, the Matrix 220 is designed for extreme reading flexibility with electronic focus control that allows easy remote job changing during assembly line reconfiguration. The scanner features the DL.CODE configuration software with an Automatic Setup mode for quick and easy code reading, plus intuitive HMI with green and red spot lights for operator guidance. This makes it simple to adapt to changing production requirements without physical adjustments.
What protection accessories are available for the Datalogic Matrix 220?
The Matrix 220 offers several protective front cover accessories to enhance flexibility and reduce inventory complexity. Available options include ESD (electrostatic discharge) safe covers, YAG laser protection covers, and combined ESD/YAG protection. Additionally, flexible cables are available as accessories to accommodate various mounting configurations. We offer these options to help you protect your investment in harsh industrial environments.
