Material:
- Aluminum
- Plastic - Window Cover
Datalogic 937700001 Fixed Barcode Scanner
Part Number:
937700001
Model:
Automation Products
Datalogic Automation Products Fixed Barcode Scanner Model Overview
Identification products automate the identification process of products based upon the reading of barcodes, analysis of images, and profiling of items. They are used in a wide range of applications and machines. from the reading of barcodes on medication to ensure patient safety, to the scanning of dimensions of parcels to ensure accurate billing, identification products are behind many of the everyday processes that keeps the global economy running.
Datalogic 937700001 Fixed Barcode Scanner Overview

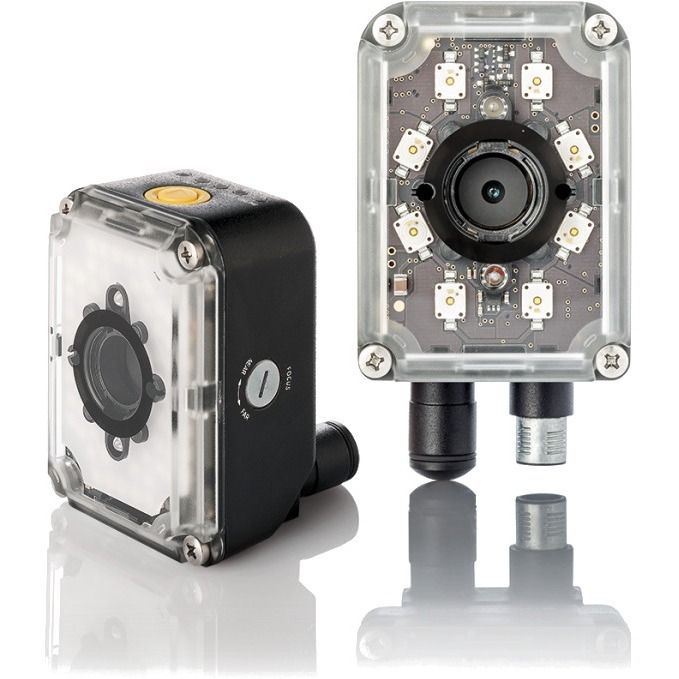

The P-Series is an ultra-compact cost effective smart camera offering advanced machine vision functionalities in a fully embedded stand-alone device.
The P-Series is available with gray-scale or color CMOS image sensors with two different resolutions: 640x480 pixels at over 120fps and 1280x1024 pixels at up to 60fps.
Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Fivefocal lengths and nine lighting options result in90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities.
With compact dimensions and the rotating connectors, the P-Series can be installed even in extremely narrow spaces. The IP67 rated metal
housing guarantees maximum protection in the most harsh factory environments containing dust, water and oil.
The P-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive. Controls are dragged and dropped into the inspection tree for easy and simple quality control deployment.
The P-Series is available with gray-scale or color CMOS image sensors with two different resolutions: 640x480 pixels at over 120fps and 1280x1024 pixels at up to 60fps.
Lenses and illuminators are fully interchangeable and can be mounted and replaced by the user. Fivefocal lengths and nine lighting options result in90 different combinations delivering outstanding installation flexibility while offering superior image acquisition capabilities.
With compact dimensions and the rotating connectors, the P-Series can be installed even in extremely narrow spaces. The IP67 rated metal
housing guarantees maximum protection in the most harsh factory environments containing dust, water and oil.
The P-Series is powered by the IMPACT LITE software package. With more than 25 inspection tools, IMPACT LITE revolutionizes device programming by making the inspection configuration quick and intuitive. Controls are dragged and dropped into the inspection tree for easy and simple quality control deployment.
Physical Characteristics
Miscellaneous
Application/Usage:
- Automotive
- Packaging
- Labelling
- Medical
- Industrial
