Datalogic Automation Products Fixed Barcode Scanner Model Overview
Identification products automate the identification process of products based upon the reading of barcodes, analysis of images, and profiling of items. They are used in a wide range of applications and machines. from the reading of barcodes on medication to ensure patient safety, to the scanning of dimensions of parcels to ensure accurate billing, identification products are behind many of the everyday processes that keeps the global economy running.
Datalogic 937600050 Fixed Barcode Scanner Overview

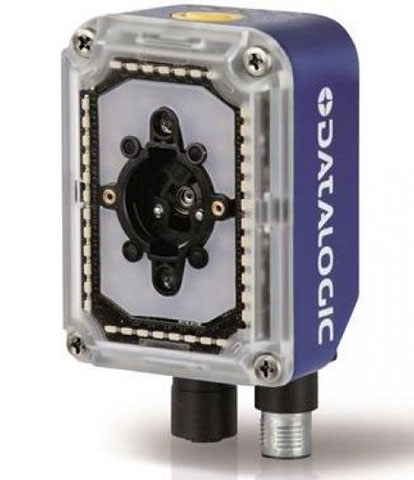

The Matrix 300N™ is a ultra-compact image based bar code reader purpose-built for superior performance on high speed and Direct Part Marking (DPM) applications.
With a high resolution sensor and ultra-fast image acquisition at 1.3 megapixels/60 frames per second, Matrix 300N™ is the next-generation, compact imager in the Matrix family. The optical system incorporates a liquid lens module for electronic focus control. As result the reader offers automatic focus adjustment without the addition of moving parts.
The integrated illuminator is embedded over the entire front surface of the reader. This innovative design allows for bright and uniform illumination of the bar code. The lighting design uses both bright field and dark field patterns, resulting in optimal illumination on normal, etched, reflective or textured surfaces. Moreover polarized models are available for 90°mounting or extremely reflective surfaces.
With exceptionally small physical dimensions and rotating connector, the Matrix 300N™ can be easily integrated into the tightest spaces.
Additionally, the M12, 4 pole connections sets a new standard for easy integration into existing systems for the OEM industry.
In addition to its compact, flexible design, the Matrix 300N™ offers cost-effective communication options with Power over Ethernet (POE) connectivity through a standard Ethernet connection.
The Matrix 300N™ is the most cost effective solution for bar code imagers, providing onboard PROFINETIO and ETHERNET/IP and eliminating external communication boxes or converters.
The Matrix 300N™ interfaces directly with a PROFINET or ETHERNET/IP enabled PLCs, reducing the complexity and cost of solutions.
