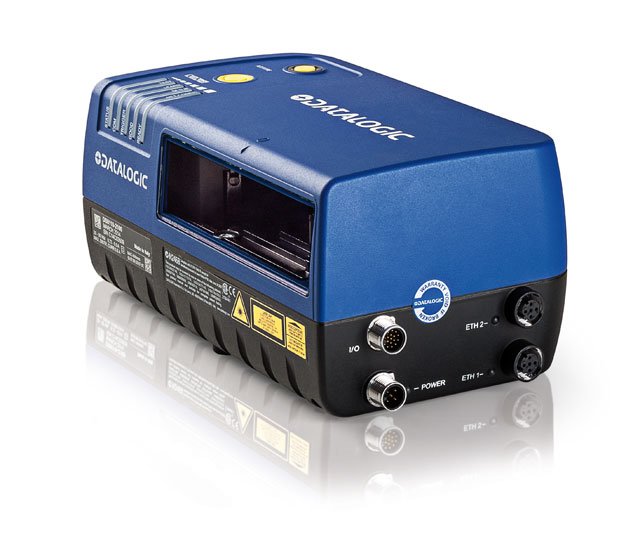

Datalogic DS8110 – Barcode Scanner
Part Number:
932500005
Model:
DS8110
Datalogic DS8110 Barcode Scanner Model Overview
The Datalogic DS8110 is designed for excellence in barcode reading, providing top-class performance under various operational conditions. Ideal for demanding environments like parcel sorting and baggage handling, this state-of-the-art barcode reader leverages over 30 years of expertise and cutting-edge technology. With innovative features such as Digital Signal Technology (DST) and ASTRA G3 technology, the DS8110 ensures reliable readings even with low-quality codes. Its compact design, ease of use, and automated setup make it a top choice for logistics operators aiming for timely deliveries.
Key Features
- Top Class Reading Performance with exclusive Datalogic technologies
- Stable Performance in unpredictable reading conditions
- Superior DoF and FoV without mechanical autofocus
- High Speed Data Transmission via Ethernet
- Fully Redundant Configuration to prevent system failures
- Compact and Lightweight for easy installation
- Web Browser Configuration Tool for user-friendly setup
Specifications
- Reading Distance: 500-1900 mm (20-75 in)
- Max Resolution: Min: 0.25mm (10mils)/Max: 0.50mm (20mils)
- Scan Rate: Typ.: 1000 scans/s
- Scan Pattern Type: Linear
- Aperture Angle: 60 degrees
- Multilabel Reading: Up to 10 different symbologies
- Technology: ASTRA™M G3, PackTrack™ G2
- Readable Codes: 22 symbologies including EAN/UPC, Code 128
- Case Material: Aluminum alloy
- Dimensions: 216 x 96 x 127 mm [8.5 x 3.8 x 5 in]
- Weight: 2.0 kg (4.4 lb)
- Operating Temperature Range: 0° -50°C
- Power Supply/Consumption: 20 to 30 VDC; 20 W
- IP Rating: IP65
- Ethernet Interfaces: 2 x Ethernet TCP/IP
- Serial Interfaces: RS232/RS422
- Configuration Software: e-GENIUS web browser
Brand
Datalogic
Model
DS8110
The Datalogic 932500005 Barcode Scanner is also known as
932500005
