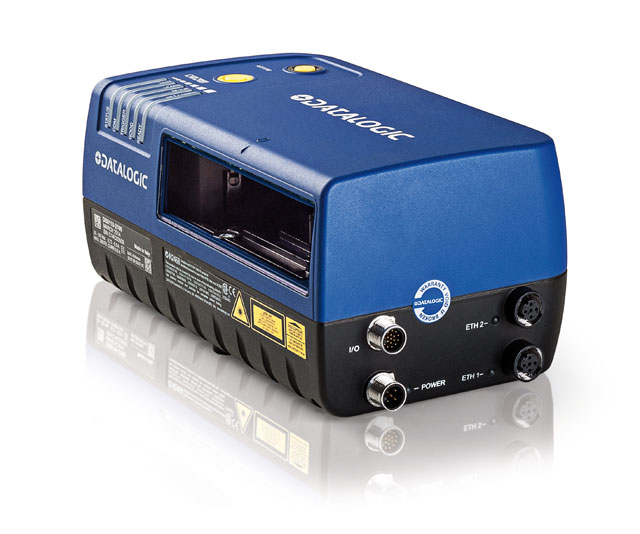

The Datalogic DS8110 is designed for excellence in barcode reading, providing top-class performance under various operational conditions. Ideal for demanding environments like parcel sorting and baggage handling, this state-of-the-art barcode reader leverages over 30 years of expertise and cutting-edge technology. With innovative features such as Digital Signal Technology (DST) and ASTRA G3 technology, the DS8110 ensures reliable readings even with low-quality codes. Its compact design, ease of use, and automated setup make it a top choice for logistics operators aiming for timely deliveries.
Key Features
Top Class Reading Performance with exclusive Datalogic technologies
Stable Performance in unpredictable reading conditions
Superior DoF and FoV without mechanical autofocus
High Speed Data Transmission via Ethernet
Fully Redundant Configuration to prevent system failures
Compact and Lightweight for easy installation
Web Browser Configuration Tool for user-friendly setup
Specifications
Reading Distance: 500-1900 mm (20-75 in)
Max Resolution: Min: 0.25mm (10mils)/Max: 0.50mm (20mils)
Scan Rate: Typ.: 1000 scans/s
Scan Pattern Type: Linear
Aperture Angle: 60 degrees
Multilabel Reading: Up to 10 different symbologies
Technology: ASTRA™M G3, PackTrack™ G2
Readable Codes: 22 symbologies including EAN/UPC, Code 128
Case Material: Aluminum alloy
Dimensions: 216 x 96 x 127 mm [8.5 x 3.8 x 5 in]
Weight: 2.0 kg (4.4 lb)
Operating Temperature Range: 0° -50°C
Power Supply/Consumption: 20 to 30 VDC; 20 W
IP Rating: IP65
Ethernet Interfaces: 2 x Ethernet TCP/IP
Serial Interfaces: RS232/RS422
Configuration Software: e-GENIUS web browser
Datalogic 932500002 Barcode Scanner Overview
DS8110 is the new bar code reader offering top class reading performance at any operative conditions, designed to satisfy the most demanding applications in the Parcel Sorting and Baggage Handling applications.
Combining 30+ years experience and the most advanced technologies, DS8110 sets a new standard in T&L applications offering unique features and benefits.
The innovative DST (Digital Signal Technology) represents a milestone in Auto-ID market with drastic increase of DoF and FoV, even with unpredictable code quality.
DST offers stable and constant performance under any working conditions to assure logistic operators timely deliveries every days.
ASTRA™ G3, the latest version of ASTRA technology,offers outstanding performance multiplying optic capability and deep of field without any use of traditional and limited mechanical autofocus system.
Multi-headed tunnel configurations are perfectly managed based with new EBC-Ethernet Bus Connection, allowing high speed data transmission and real time signal synchronization inside the system. EBC allows for redundant configuration, assuring no system deadlock in case of component failure.
Ease of use, automatic setup and system diagnostics are perfectly satisfied thanks to e-GENIUS, the web browser configuration tool that allows you to access the system with a standard web-browser program with no need for specific configuration software.
What applications is the Datalogic DS8110 barcode scanner designed for?
The Datalogic DS8110 is specifically engineered for demanding Parcel Sorting and Baggage Handling applications in the Transportation & Logistics sector. Its high-performance reading capabilities and advanced tunnel configuration support make it ideal for automated sorting systems that require reliable, real-time barcode scanning across multiple scanning heads. We offer the DS8110 for operations requiring top-class reading performance under any operative conditions.
How does the EBC-Ethernet Bus Connection improve system performance?
The EBC (Ethernet Bus Connection) enables high-speed data transmission and real-time signal synchronization across multi-headed tunnel configurations, eliminating the need for complex wiring. It also supports redundant configuration, ensuring no system deadlock occurs if a component fails, which is critical for continuous parcel sorting and baggage handling operations. This architecture is one of the key advantages we highlight when configuring systems for high-availability environments.
What configuration tools are available for the DS8110?
The DS8110 features e-GENIUS, a web browser-based configuration tool that allows you to access and manage the system using any standard web browser without requiring specialized software. This intuitive interface simplifies automatic setup and system diagnostics, making it easy for warehouse and logistics teams to deploy and maintain the scanner. Contact us today for support in configuring your DS8110 system.
What are the operating temperature and environmental specifications for the DS8110?
While specific DS8110 temperature ranges should be confirmed with our technical team, Datalogic's comparable fixed scanners operate reliably from 0 to 50°C (32 to 122°F) with IP65 protection rating, handling 90% non-condensing humidity and meeting IEC vibration and shock resistance standards. This rugged design ensures the scanner performs in demanding warehouse and logistics environments. Visit barcodesinc.com or contact us for the exact environmental specifications for your DS8110 configuration.
Can the DS8110 read damaged or poorly printed barcodes?
Yes, the DS8110 combines advanced optical performance with a powerful decoder and reliable decoding algorithms that ensure high read rates and accuracy even on damaged or poorly printed barcodes. This capability is essential for parcel sorting and baggage handling operations where label quality can vary. We offer the DS8110 specifically for applications requiring consistent performance across variable barcode conditions.
How does the DS8110 compare to earlier Datalogic fixed scanner models?
The DS8110 represents the latest generation of Datalogic's fixed scanning technology, building on 30+ years of experience with advanced features like EBC-Ethernet connectivity, redundant configuration support, and web-based e-GENIUS configuration that earlier models lack. It sets a new standard for Transportation & Logistics applications with enhanced system integration and real-time synchronization capabilities. Contact us today to discuss how the DS8110 upgrades your current scanning infrastructure.
The Datalogic 932500002 Barcode Scanner is also known as
932500002
